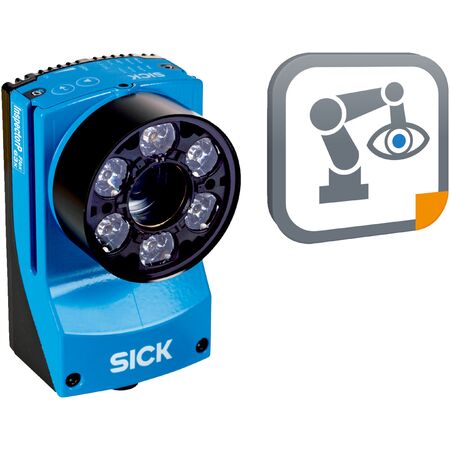

2D Localization Sensor PLOC2D-632C | 1,600 x 1,200 px Resolution | Fast Localization Time | IP65 Rated | by SICK
The 2D Localization Sensor PLOC2D-632C is designed for precise part localization in industrial automation, featuring a medium resolution of 1,600 px x 1,200 px and a fast localization time of less than 0.5 seconds for the first part. With an adjustable optical focus and robust IP65-rated aluminum housing, this sensor is perfect for robotics and manufacturing process control, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,600 px x 1,200 px (1.9 Mpixel)
- Light source: Illumination LEDs (ordered separately)
- Laser class: 1, compliant with IEC 60825-1:2014
- Optical focus: Adjustable manually
- Localization principle: Shape comparison
- Connection types: 1 x M12 17-pin male, 1 x M8 4-pin female USB (not used), 2 x M12 8-pin socket Gigabit Ethernet (one used), 1 x M12 4-pin male external illumination
- Supply voltage: 12 V to 24 V ± 20%
- Power consumption: 10 W ± 20%
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Part localization time: < 0.5 seconds first part, < 100 ms additional parts
- Localization accuracy: ± 0.5 px, ± 0.1°
- Output data: X, Y (mm), rotation around Z (degrees)
- Data transmission rate: 100 Mbit/s
- Protocols supported: TCP/IP XML and CSV, PROFINET, EtherNet/IP, FTP
- User interface: Web server
- Data storage: microSD memory card and external FTP
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration: EN 60068-2-27 and EN 60068-2-6 compliant
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Adjustable optical focus (manual)
- Medium resolution 1,600 px x 1,200 px (1.9 Mpixel)
- Shape comparison localization principle
- Fast localization time: < 0.5 seconds for first part, < 100 ms for additional parts
- Output data includes X, Y coordinates and rotation around Z axis
- Robust aluminum die cast housing with IP65 rating
- Supports Ethernet communication with multiple protocols including TCP/IP, PROFINET, EtherNet/IP
- Web server user interface and data logging via microSD and FTP
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and configuration, especially for Ethernet and power supply interfaces.
Applications
- Industrial automation for part localization
- Medium to large field of view 2D measurements
- Robotics and manufacturing process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (10 W)
- Durable housing reduces need for frequent replacements
- Supports digital data logging reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PLOC2D-632C 2D Localization Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise part localization.
