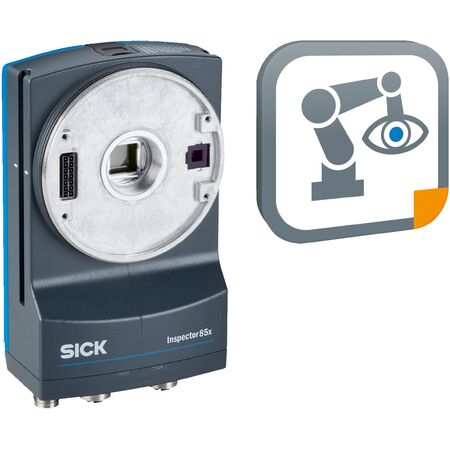

2D Localization Sensor PLOC2D-8512 | 12 Megapixel Resolution | IP65 Rated | by SICK
The 2D Localization Sensor PLOC2D-8512 features a high-resolution 12 Megapixel sensor, perfect for industrial automation and robotics applications. With a fast localization time of 140 ms for the first part and less than 60 ms for additional parts, it ensures precise positioning and quality control. Built with a robust aluminum die cast housing and an IP65 rating, this sensor is designed for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 4096 px x 3008 px (12 Megapixel)
- Supply voltage: 24 V DC ± 20%
- Power consumption: 24 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Connection types: Multiple M12 connectors (17-pin male, 5-pin female, 8-pin female, 4-pin female)
- Localization accuracy: ± 0.5 px, ± 0.1°
- Part localization time: 140 ms for first part, < 60 ms for additional parts
- Data transmission: Ethernet 100 Mbit/s, TCP/IP XML and CSV protocols
- User interface: Web server
- Data storage: microSD memory card and external FTP
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Shock and vibration tested to EN 60068 standards
- Dimensions (H x L x W): 143mm x 90mm x 46mm
- Weight: 0.64 kg
Key Features
- Stand-alone sensor with easy teach for 2D part localization
- Very high resolution 12 Megapixel sensor (4096 x 3008 px)
- Adjustable optical focus (manual)
- Shape comparison localization principle
- 2D snapshot image analysis technology
- Fast localization time: 140 ms for first part, <60 ms for additional parts
- Output data includes X, Y coordinates and rotation around Z axis
- Robust aluminum die cast housing with IP65 rating
- Multiple M12 connectors for power, I/O, illumination, Ethernet, and fieldbus
- Web server user interface with image and data logging via microSD and FTP
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper mounting, electrical connections, and heat dissipation.
Applications
- Industrial automation for part localization
- Robotics for precise positioning
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient 24 V DC operation reduces power consumption
- Durable IP65 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK PLOC2D-FLEX0025 sensor is available for immediate purchase, ideal for industrial automation and robotics applications requiring precise 2D part localization.
