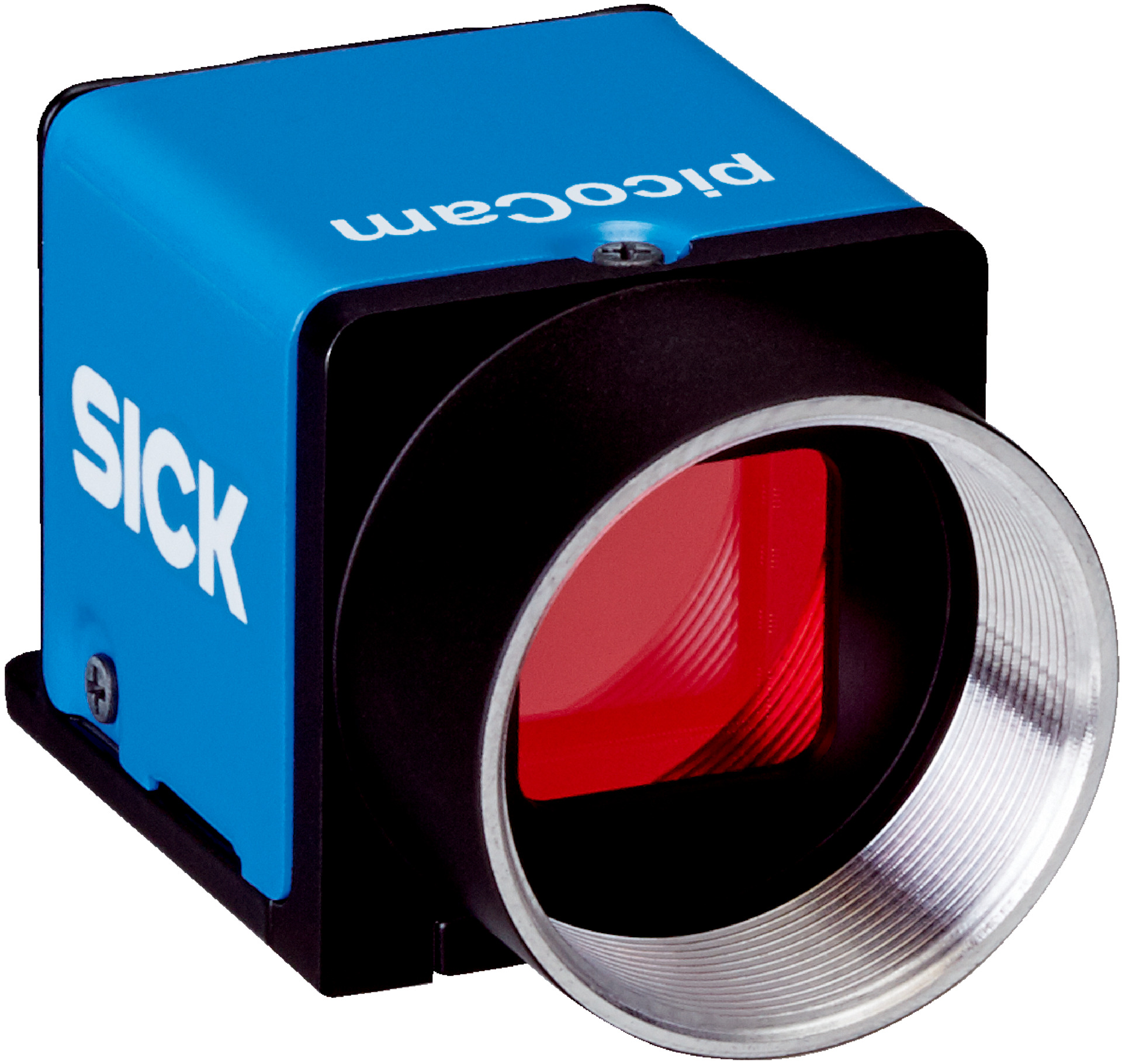

2D Snapshot Camera | 5.01 Megapixel | Global-Shutter Technology | IP30 Rated | by SICK
The 2D Snapshot Camera is equipped with a 5.01 Megapixel Sony IMX264 sensor and global-shutter technology, making it perfect for industrial automation and quality control applications. With a frame rate of 24 fps and GigE Vision standard Ethernet interface, it ensures high-speed data transfer and reliable performance. Ideal for measuring dimensions, monitoring quality, and identifying patterns, this camera is designed for professionals seeking precision and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2448 px x 2048 px (5.01 Megapixel)
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 8.446 mm x 7.066 mm
- Bit depth: 12 bit
- Scan/frame rate: 24 fps in freerun mode
- Supply voltage: 12 V to 24 V
- Power consumption: ≤ 3.1 W
- Connection type: 8-pin Hirose male connector
- Enclosure rating: IP30
- Shock load: 80 g according to EN 60068-2-27 and EN 60068-2-29
- Vibration load: 10 g, 30 Hz to 500 Hz according to EN 60068-2-6
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
- Ethernet: GigE Vision standard, UDP/IP
- Dimensions (H x L x W): 29mm x 29mm x 29mm
- Weight: 0.1 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Sony IMX264 sensor with 5.01 Megapixel resolution
- Global-Shutter shutter technology
- Supports streaming and line mode, region of interest, long exposure
- C-mount lens compatible (to be ordered separately)
- 128 MB memory
- Exposure time range from 0.035 ms to 2000 ms
- GigE Vision standard Ethernet interface with 1,000 Mbit/s data rate
- Configuration via SICK Vision Suite software
- Enclosure rating IP30
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration and compliance with safety standards.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern, classifying, sorting
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 3.1 W reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

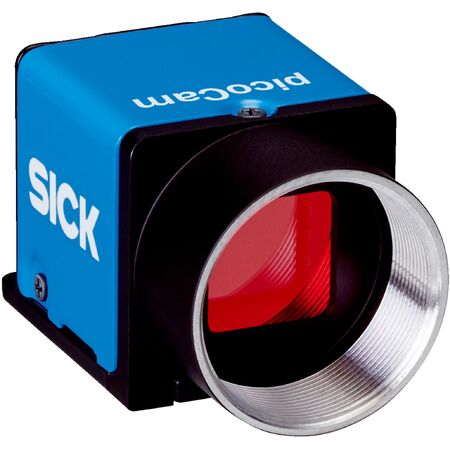

The SICK I2D305M-2RCA11 2D Snapshot Camera is available for immediate purchase. Ideal for industrial automation, quality control, and measurement applications.
