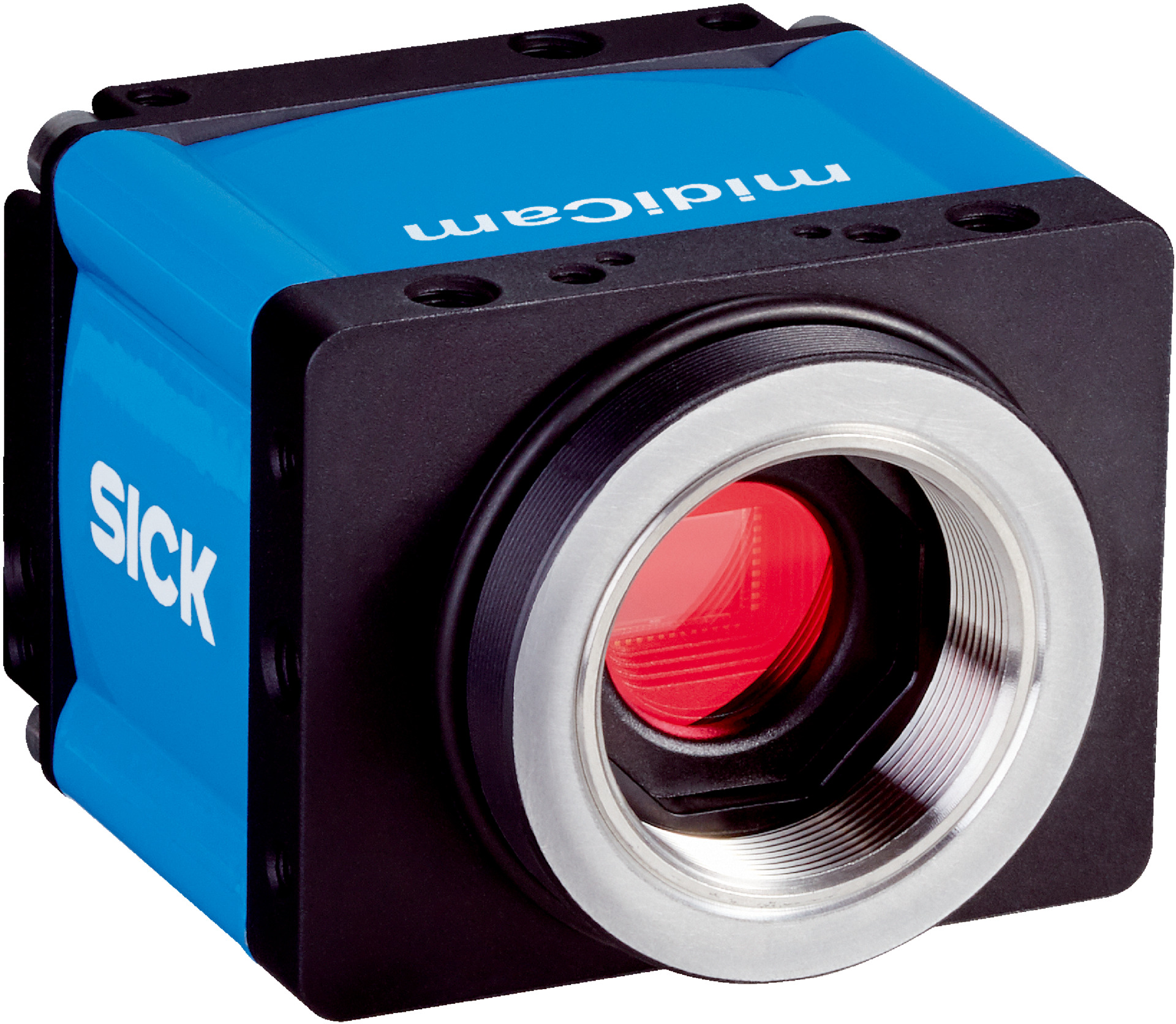

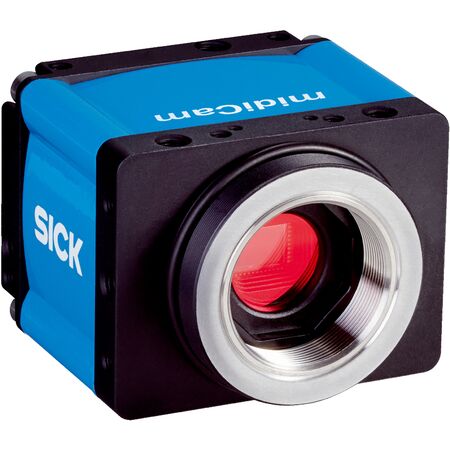

2D Snapshot Camera | CMOS Color Sensor | Global Shutter | 5.01 Mpixel | IP65/IP67 Rated | by SICK
The 2D Snapshot Camera I2D605C-2MCB71 features advanced 2D snapshot technology with streaming capability, powered by a high-resolution CMOS color sensor (Sony IMX264) and global shutter. Ideal for industrial automation and quality control, this camera supports various applications including dimension measurement and pattern identification, ensuring precise results in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot with streaming
- Image sensor: CMOS Color, Sony IMX264
- Shutter technology: Global-Shutter
- Sensor resolution: 2448 px x 2048 px (5.01 Mpixel)
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 8.446 mm x 7.066 mm
- Bit depth: 12 bit
- Scan/frame rate: 24 fps in freerun mode
- Memory: 128 MB
- Exposure time: 0.035 ms to 2000 ms
- Connection type: M12, 8-pin male connector, A-coded (2 GPIOs, 1 digital input, 1 digital output)
- Supply voltage: 12 V to 24 V
- Power consumption: ≤ 2.9 W
- Enclosure rating: IP65, IP67
- Data transmission rate: 1000 Mbit/s via Ethernet (GigE Vision Standard)
- Configuration software: SICK Vision Suite
- Dimensions (H x L x W): 41mm x 43mm x 53mm
- Weight: 0.1 kg
Key Features
- 2D snapshot technology with streaming capability
- CMOS Color image sensor (Sony IMX264) with global shutter
- Supports line mode, area of interest, and long exposure functions
- C-mount lens compatible (to be ordered separately)
- High sensor resolution of 2448 px x 2048 px (5.01 Mpixel)
- Scan/frame rate of 24 fps in freerun mode
- 128 MB memory
- Exposure time range from 0.035 ms to 2000 ms
- Ethernet interface with GigE Vision standard and 1000 Mbit/s data transmission rate
- IP65 and IP67 rated enclosure for robust protection
- Operating temperature range 0°C to +55°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with electrical and communication standards.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern
- Identifying - Classifying
- Identifying - Sorting
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 2.9 W reduces energy usage
- Durable IP65/IP67 rated enclosure extends product lifespan, reducing waste
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK I2D605C-2MCB71 2D Snapshot Camera is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
