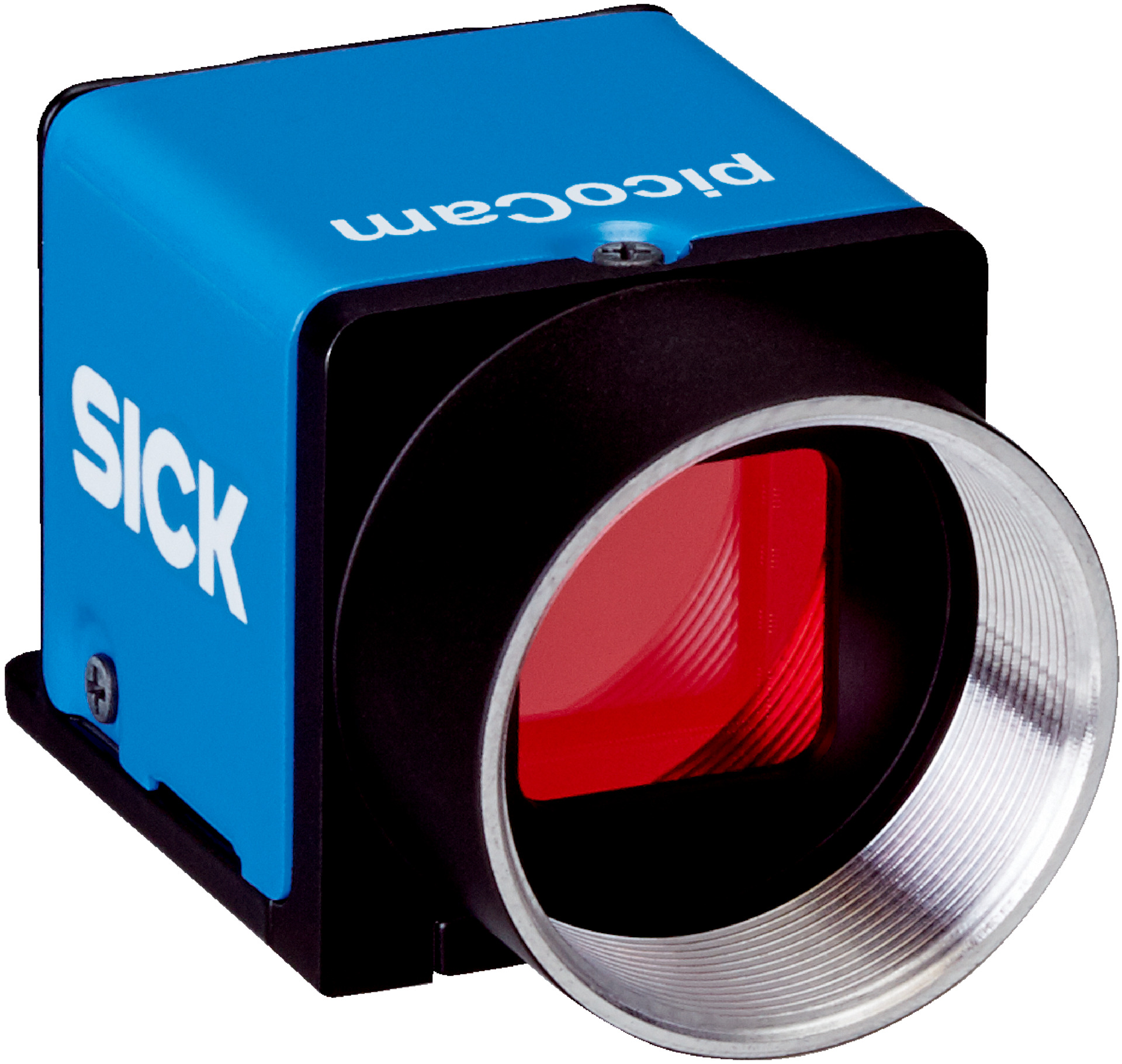

2D Snapshot Camera | CMOS Monochrome Sensor | 79 fps Frame Rate | Global Shutter Technology | by SICK
The 2D Snapshot Camera with a CMOS monochrome image sensor is perfect for industrial applications like measuring dimensions, monitoring quality, and identifying patterns. Featuring a high resolution of 1,456 px x 1,088 px and a fast frame rate of 79 fps, this camera supports streaming and line mode for versatile use. Its compact design and low power consumption make it an efficient choice for quality control and automation tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 29mm x 29mm x 29mm
- Weight: 0.1 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Sony IMX273 sensor with global shutter technology
- Supports streaming and line mode, region of interest, long exposure
- High sensor resolution of 1,456 px x 1,088 px (1.58 Mpixel)
- Fast scan/frame rate of 79 fps in freerun mode
- 128 MB memory for image processing
- Ethernet interface with GigE Vision standard and 1,000 Mbit/s data transmission rate
- Compact design with 29 mm x 29 mm x 29 mm dimensions and 51 g weight
- Operating temperature range from 0 °C to +55 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper connection and configuration.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern, classifying, sorting
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 3.1 W reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

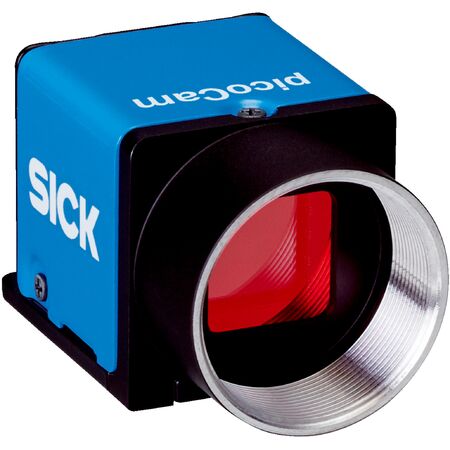

The SICK I2D301M-2RCA11 2D Snapshot Camera is available for immediate purchase, ideal for industrial measurement, quality control, and identification applications.
