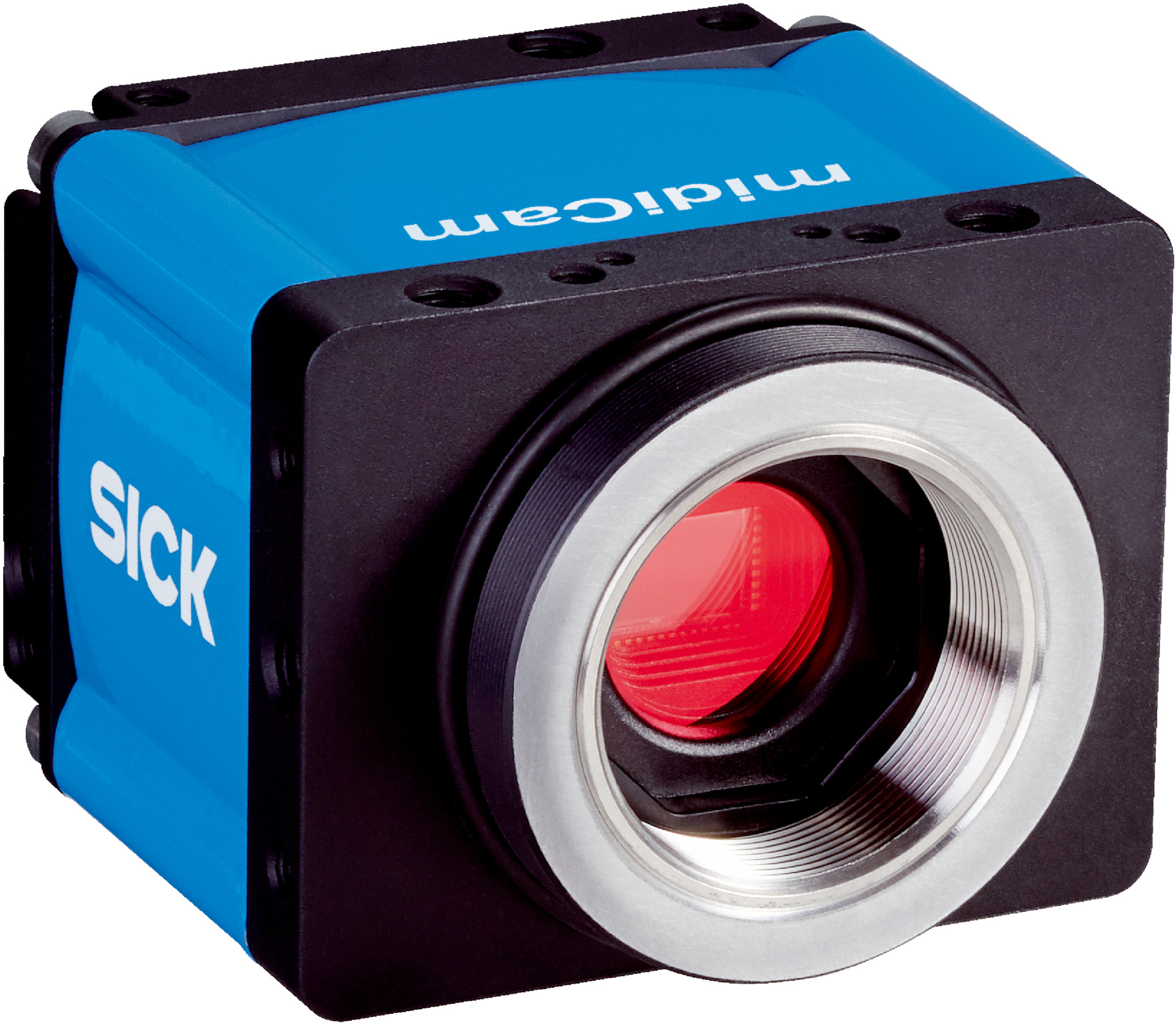

2D Snapshot Camera | CMOS Monochrome Sensor | Global Shutter | 1456 x 1088 Resolution | by SICK
The 2D Snapshot Camera is equipped with a high-resolution CMOS monochrome sensor (Sony IMX273) and global shutter technology, making it perfect for industrial automation and quality control applications. With a fast scan rate of 79 fps and robust IP65/IP67 enclosure, this camera ensures reliable performance in demanding environments, ideal for measuring, monitoring, and identifying tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome (Sony IMX273)
- Shutter technology: Global-Shutter
- Lens mount: C-mount (lens ordered separately)
- Sensor resolution: 1456 px x 1088 px (1.58 Mpixel)
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 5.023 mm x 3.754 mm
- Scan/frame rate: 79 fps in freerun mode
- Memory: 128 MB
- Exposure time: 0.025 ms to 2000 ms
- Connection type: M12, 8-pin male connector, A-coded (2 GPIOs, 1 digital input, 1 digital output)
- Supply voltage: 12 V to 24 V
- Power consumption: ≤ 3.1 W
- Enclosure rating: IP65, IP67
- Ethernet: GigE Vision standard, UDP/IP, 1,000 Mbit/s
- Configuration software: SICK Vision Suite
- Shock load: 80 g (EN 60068-2-27, EN 60068-2-29)
- Vibration load: 10 g, 30 Hz to 500 Hz (EN 60068-2-6)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 41mm x 42.7mm x 53mm
- Weight: 0.1 kg
Key Features
- 2D snapshot technology with streaming capability
- CMOS monochrome image sensor (Sony IMX273) with global shutter
- Supports line mode, area of interest, and long exposure functions
- High sensor resolution of 1456 px x 1088 px (1.58 Mpixel)
- Fast scan/frame rate of 79 fps in freerun mode
- 128 MB memory for image processing
- Ethernet interface with GigE Vision standard and 1,000 Mbit/s data transmission rate
- Robust enclosure rated IP65 and IP67 for protection
- Shock load resistance of 80 g and vibration load resistance of 10 g
- Operating temperature range from 0 °C to +55 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with electrical and safety standards.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern
- Identifying - Classifying
- Identifying - Sorting
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 3.1 W reduces energy usage
- Durable IP65/IP67 rated enclosure extends product lifespan, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now

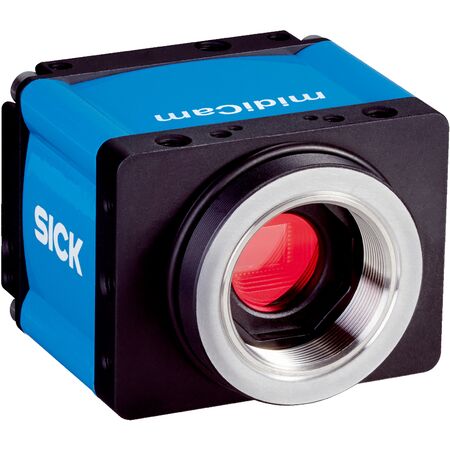

The SICK I2D601M-2MCB71 2D Snapshot Camera is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
