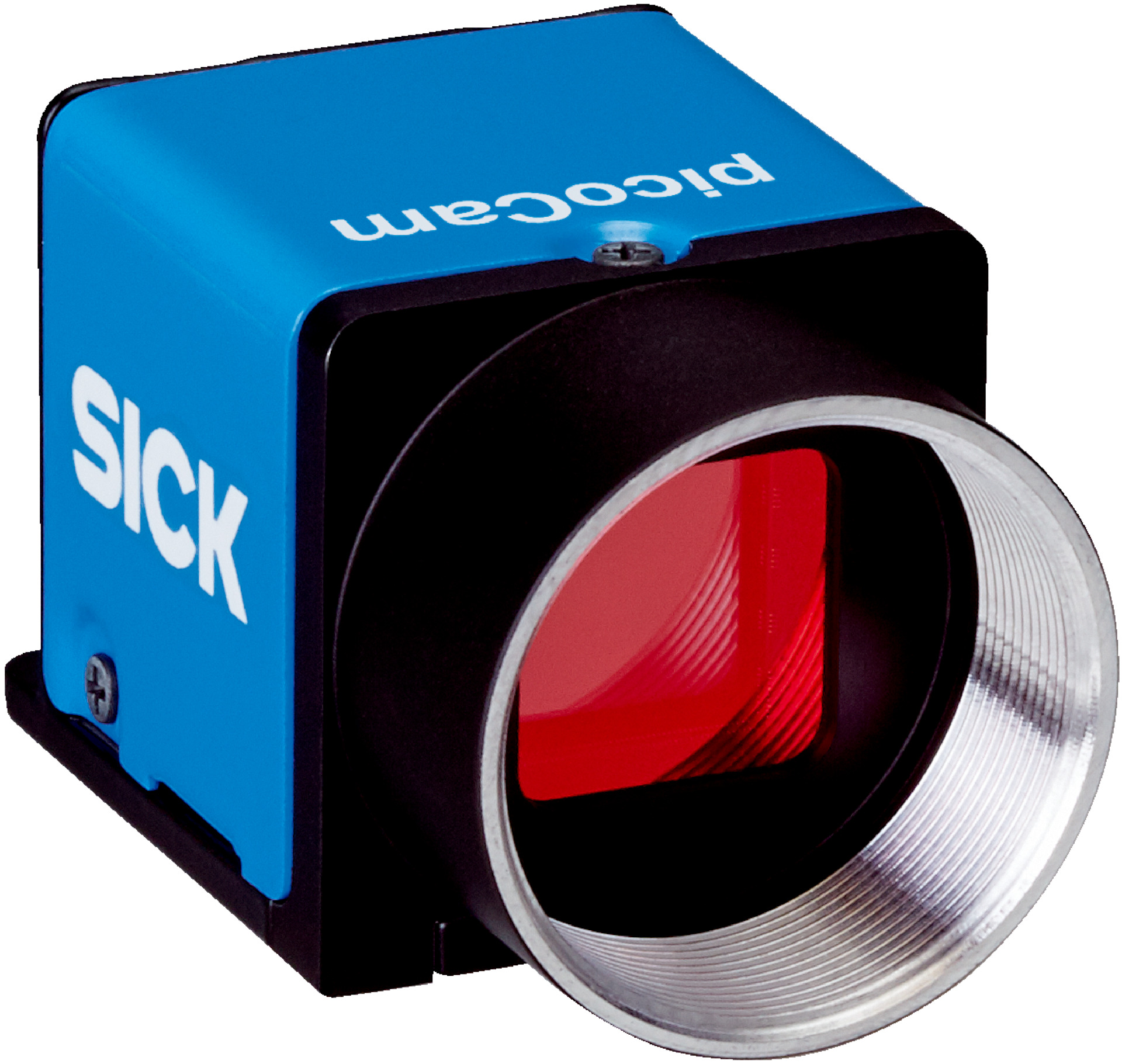

2D Snapshot Camera | CMOS Monochrome Sensor | Global-Shutter Technology | 2048 x 1536 Resolution | by SICK
The 2D Snapshot Camera is equipped with a high-resolution CMOS monochrome image sensor (Sony IMX265) and global-shutter technology, making it perfect for industrial automation and quality control applications. With a scan/frame rate of 39 fps and Ethernet connectivity, this camera is designed for precise measurement and monitoring tasks, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome, Sony IMX265
- Shutter technology: Global-Shutter
- Lens mount: C-mount (lens sold separately)
- Sensor resolution: 2048 px x 1536 px (3.15 Mpixel)
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 7.066 mm x 5.3 mm
- Scan/frame rate: 39 fps in freerun mode
- Memory: 128 MB
- Exposure time: 0.032 ms to 2000 ms
- Connection type: 8-pin Hirose male connector
- Supply voltage: 12 V to 24 V
- Power consumption: ≤ 3.1 W
- Enclosure rating: IP30
- Data transmission: Ethernet, GigE Vision standard, 1000 Mbit/s
- Configuration software: SICK Vision Suite
- Dimensions (H x L x W): 29mm x 29mm x 29mm
- Weight: 0.1 kg
Key Features
- 2D snapshot technology with streaming capability
- CMOS monochrome image sensor (Sony IMX265)
- Global-Shutter shutter technology
- Supports line mode, region of interest, and long exposure
- C-mount lens compatible (lens to be ordered separately)
- High sensor resolution of 2048 px x 1536 px (3.15 Mpixel)
- Pixel size 3.45 µm x 3.45 µm
- Scan/frame rate of 39 fps in freerun mode
- 128 MB memory
- Exposure time range from 0.032 ms to 2000 ms
- Ethernet interface with GigE Vision standard and 1000 Mbit/s data transmission rate
- Configuration via SICK Vision Suite software
- Enclosure rating IP30
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and Ethernet networking.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern
- Identifying - Classifying
- Identifying - Sorting
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 3.1 W reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

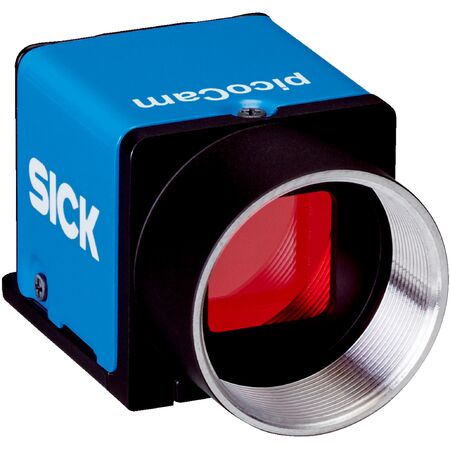

The SICK I2D303M-2RCA11 2D Snapshot Camera is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
