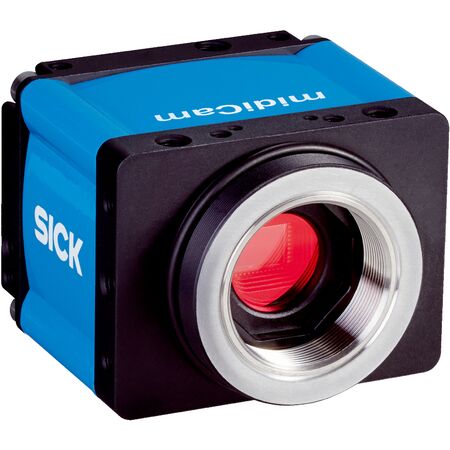

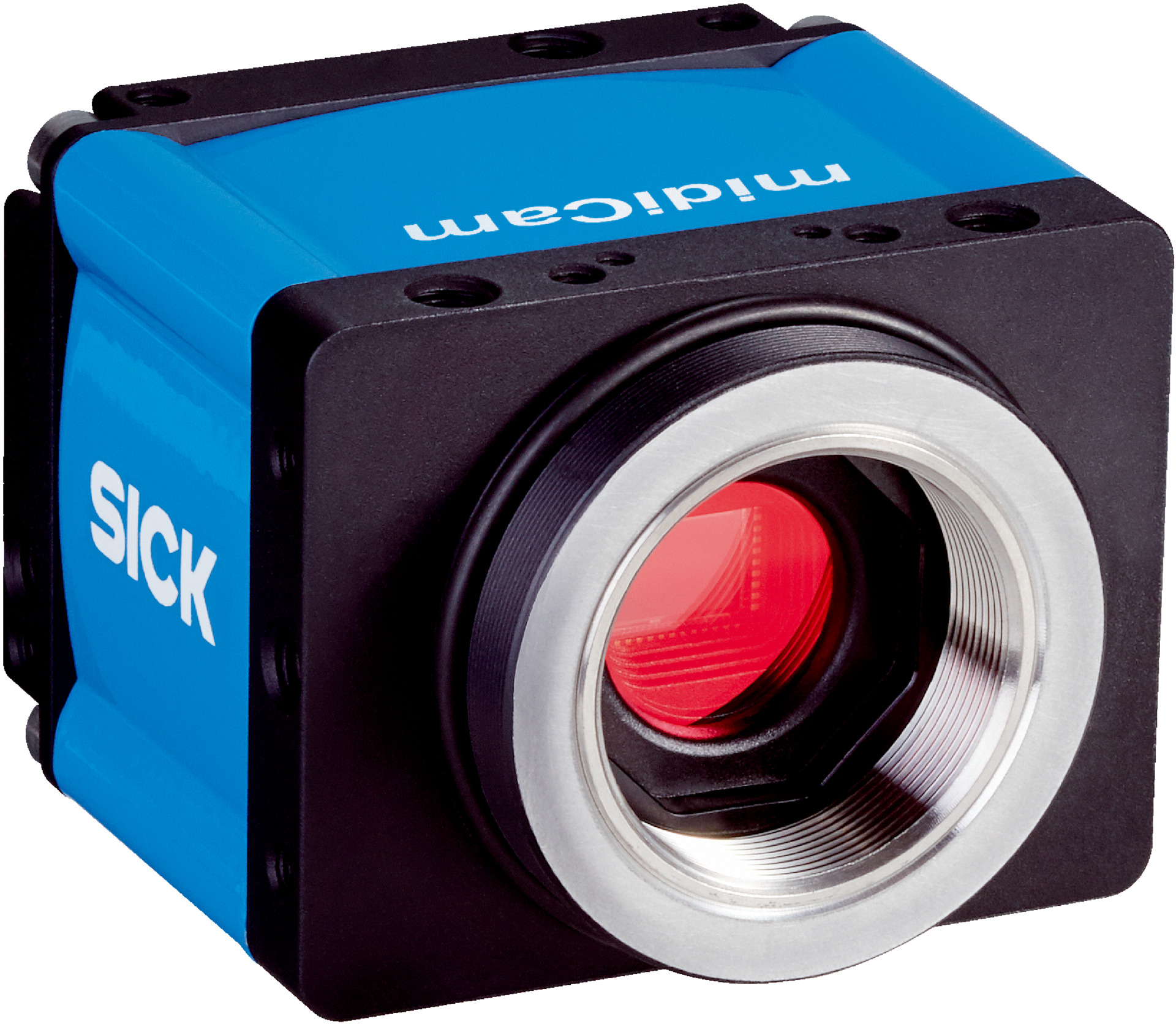

2D Snapshot Camera | CMOS Monochrome Sensor | Global-Shutter Technology | 2048 x 1536 Resolution | by SICK
The 2D Snapshot Camera I2D603M-2MCB71 features advanced CMOS monochrome imaging with a global-shutter technology, making it ideal for industrial automation and quality control applications. With a high resolution of 2048 x 1536 pixels and streaming capability, it excels in measuring dimensions, monitoring quality, and identifying patterns. Built to withstand harsh environments with an IP65/IP67 rating, this camera ensures durability and reliability in demanding settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 41mm x 42.7mm x 53mm
- Weight: 0.1 kg
Key Features
- 2D snapshot technology with streaming capability
- CMOS monochrome image sensor (Sony IMX265) with 12-bit depth
- Global-Shutter shutter technology
- Line mode, area of interest, and long exposure functions
- C-mount lens compatible (to be ordered separately)
- High resolution sensor: 2048 px x 1536 px (3.15 Mpixel)
- Pixel size: 3.45 µm x 3.45 µm
- Scan/frame rate: 39 fps in freerun mode
- 128 MB memory
- Exposure time range: 0.032 ms to 2000 ms
- Ethernet interface with GigE Vision standard and 1,000 Mbit/s data transmission rate
- Configuration via SICK Vision Suite software
- Robust mechanics with IP65 and IP67 enclosure rating
- Shock load resistance: 80 g
- Vibration load resistance: 10 g, 30 Hz to 500 Hz
- Operating temperature range: 0 °C to +55 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern
- Identifying - Classifying
- Identifying - Sorting
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption (≤ 2.9 W) reduces energy usage
- Durable IP65/IP67 rated enclosure protects against environmental damage, extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official warranty policy.
Available Now
The SICK I2D603M-2MCB71 2D Snapshot Camera is available for immediate purchase. Ideal for industrial automation, quality control, and machine vision applications.
