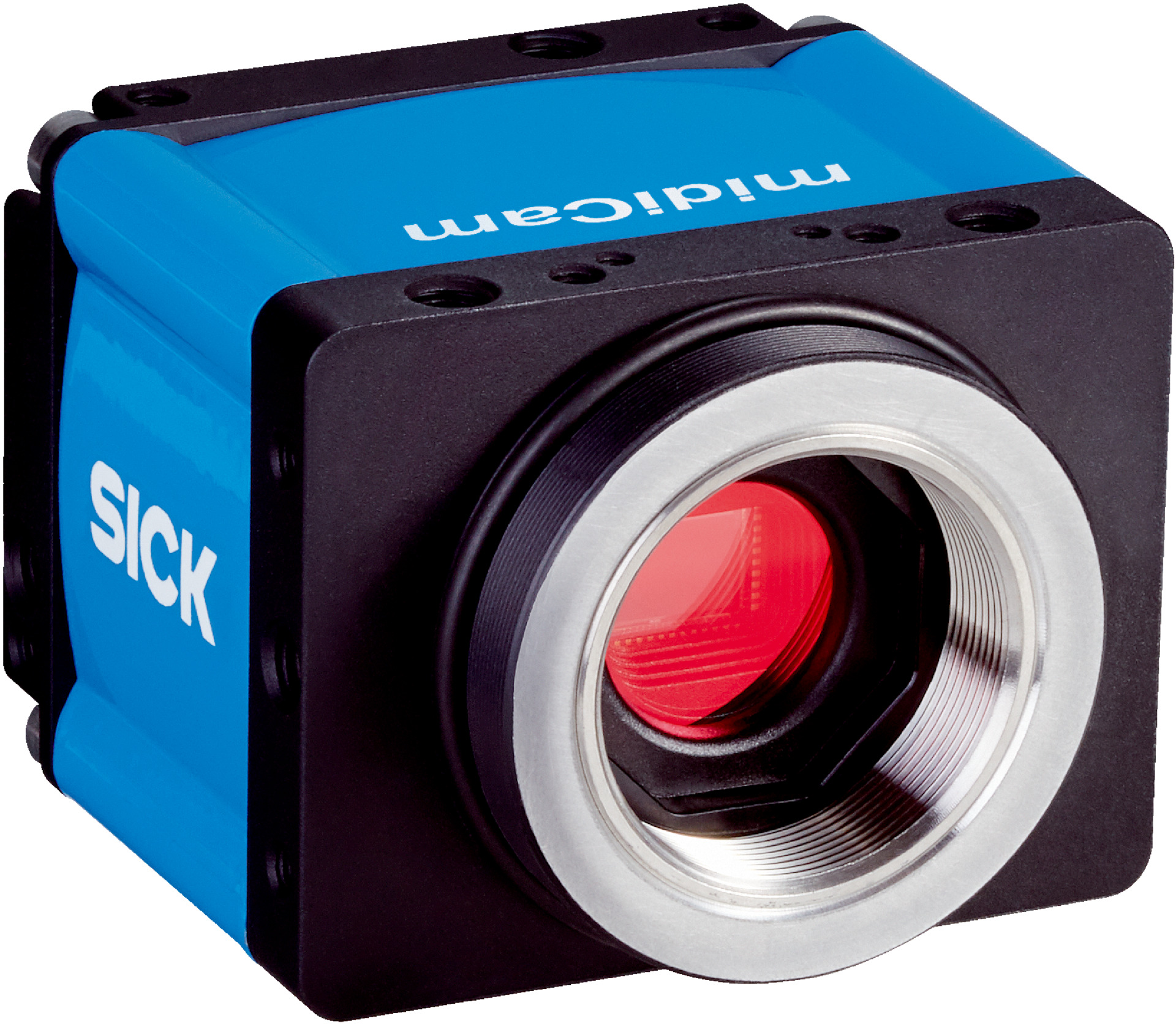

2D Snapshot Camera | CMOS Monochrome Sensor | Global Shutter | 4096 x 3000 Resolution | by SICK
The 2D Snapshot Camera is equipped with a high-resolution CMOS monochrome sensor (Sony IMX304) and global shutter technology, making it perfect for industrial automation and quality control applications. With a robust IP65/IP67 rated enclosure and a 10 fps frame rate, this camera excels in monitoring, measuring, and identifying patterns in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome, Sony IMX304
- Shutter technology: Global-Shutter
- Sensor resolution: 4096 px x 3000 px (12.29 Mpixel)
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 14.132 mm x 10.35 mm
- Scan/frame rate: 10 fps in freerun mode
- Memory: 128 MB
- Exposure time: 0.046 ms to 2000 ms
- Connection type: M12, 8-pin male connector, A-coded (2 GPIOs, 1 digital input, 1 digital output)
- Supply voltage: 12 V to 24 V
- Power consumption: ≤ 3.1 W
- Enclosure rating: IP65, IP67
- Ethernet: UDP/IP, GigE Vision Standard, 1000 Mbit/s
- Configuration software: SICK Vision Suite
- Shock load: 80 g (EN 60068-2-27, EN 60068-2-29)
- Vibration load: 10 g, 30 Hz to 500 Hz (EN 60068-2-6)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 41mm x 42.7mm x 53mm
- Weight: 0.17 kg
Key Features
- 2D snapshot technology with streaming capability
- CMOS monochrome image sensor (Sony IMX304) with global shutter
- Line mode, area of interest, and long exposure functions
- C-mount lens compatible (to be ordered separately)
- High resolution sensor: 4096 px x 3000 px (12.29 Mpixel)
- Exposure time range from 0.046 ms to 2000 ms
- 128 MB memory for image processing
- Ethernet interface with GigE Vision standard and 1000 Mbit/s data transmission rate
- IP65 and IP67 rated enclosure for robust protection
- Shock load resistance up to 80 g and vibration load up to 10 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration using SICK Vision Suite software.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern
- Identifying - Classifying
- Identifying - Sorting
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 3.1 W reduces energy usage
- Durable IP65/IP67 rated enclosure extends product lifespan, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now

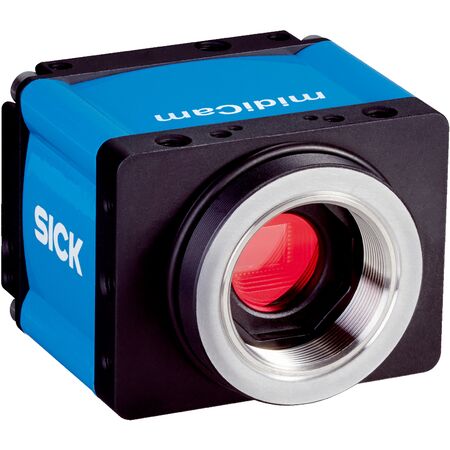

The SICK I2D612M-2MCB71 2D Snapshot Camera is available for immediate purchase, ideal for industrial automation, quality control, and machine vision applications.
