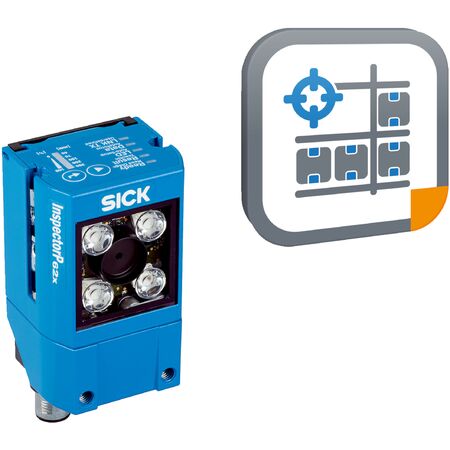

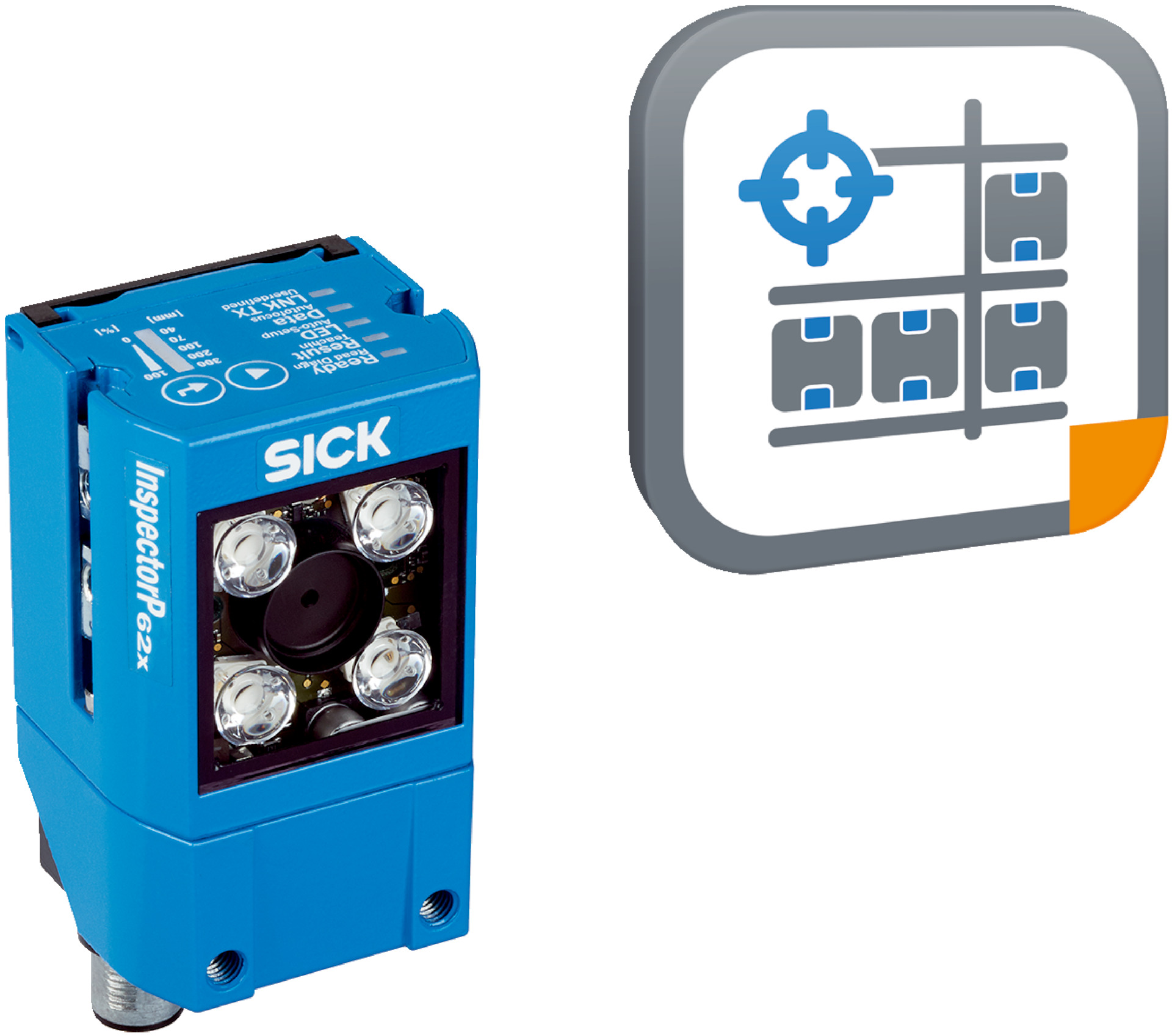

2D Snapshot Camera Sensor | CMOS Monochrome | Global-Shutter Technology | Adjustable Electric Focus | by SICK
The 2D Snapshot Camera Sensor is designed for precision in industrial automation, featuring a CMOS monochrome image sensor and global-shutter technology. With adjustable electric optical focus and integrated LED illumination, it excels in applications like navigation and position determination, ensuring reliable performance in cold storage environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Image sensor: CMOS monochrome
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Shutter technology: Global-Shutter
- Optical focus: Adjustable electric focus, 9.6 mm focal length
- Working range: 50 mm to 350 mm or 50 mm to 700 mm
- Illumination: Integrated red (617 nm) and blue (470 nm) LEDs
- Feedback spot: Green LED (525 nm)
- Connection: 1 x M12 17-pin male (serial, I/Os, voltage supply), 1 x M12 4-pin female (Ethernet)
- Supply voltage: 12 V DC to 24 V DC ±10%
- Power consumption: Typically 4 to 6 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Window material: PMMA
- Digital outputs: 4 outputs, 24 V, ≤ 100 mA
- Data transmission: Ethernet TCP/IP, PROFINET, FTP, HTTP
- Operator interface: Web interface
- Data storage: microSD card and external FTP
- Operating temperature: 0°C to +50°C (special cold storage conditions apply)
- Storage temperature: -35°C to +70°C
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Global-Shutter shutter technology
- Adjustable electric optical focus
- Integrated red and blue LED illumination
- Visible green LED feedback spot
- Configurable via web interface and PLC interface
- Supports Ethernet TCP/IP and PROFINET communication
- Image and data logging via microSD and external FTP
- IP65 rated aluminum die cast housing with PMMA window
- Operating temperature range 0°C to +50°C, special cold storage conditions supported
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Localizing, navigating and guiding in automation
- 2D position determination for industrial processes
- Cold storage applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP65 rated housing extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK official documentation for details.
Available Now
The SICK V2D621P-2MCFBB6S51 2D Snapshot Camera Sensor is available for immediate purchase. Ideal for industrial automation, navigation, and position determination applications.
