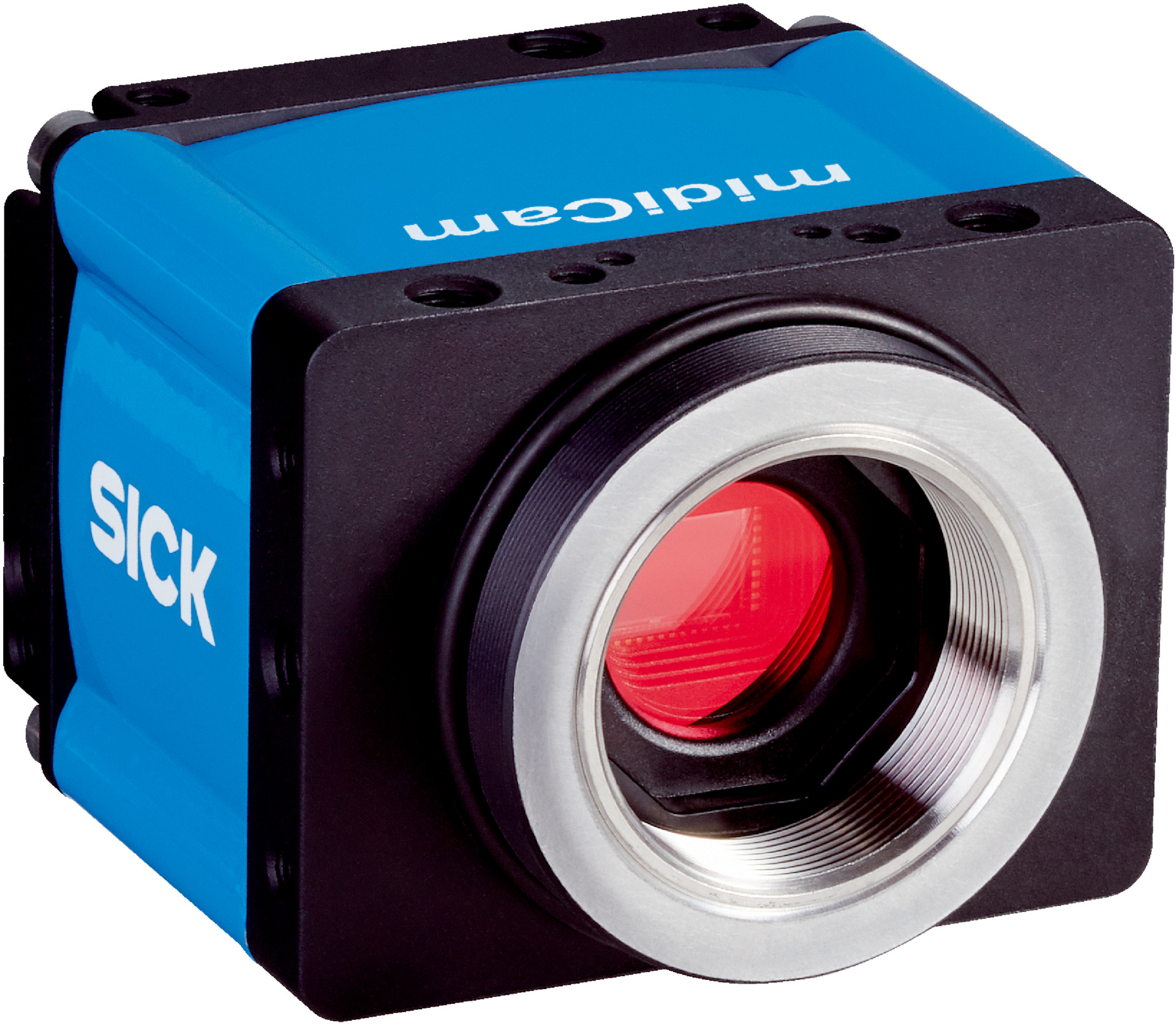

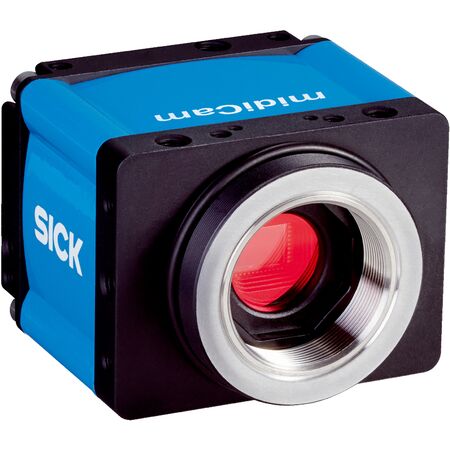

2D Snapshot Camera | Sony IMX264 CMOS Sensor | 5.01 Megapixel | Global-Shutter Technology | IP65/IP67 Rated | by SICK
The 2D Snapshot Camera I2D605M-2MCB71 features advanced 2D snapshot technology with a Sony IMX264 CMOS monochrome sensor, delivering 5.01 Megapixel resolution. Ideal for industrial automation and quality control, this camera supports global-shutter technology and offers robust IP65/IP67 protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome, Sony IMX264
- Sensor resolution: 2448 px x 2048 px (5.01 Megapixel)
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 8.446 mm x 7.066 mm
- Bit depth: 12 bit
- Shutter technology: Global-Shutter
- Scan/frame rate: 24 fps in freerun mode
- Exposure time: 0.035 ms to 2000 ms
- Memory: 128 MB
- Connection type: M12, 8-pin male connector, A-coded (2 GPIOs, 1 digital input, 1 digital output)
- Supply voltage: 12 V to 24 V
- Power consumption: ≤ 2.9 W
- Enclosure rating: IP65, IP67
- Ethernet: GigE Vision standard, UDP/IP, 1,000 Mbit/s
- Configuration software: SICK Vision Suite
- Dimensions (H x L x W): 41mm x 43mm x 53mm
- Weight: 0.1 kg
Key Features
- 2D snapshot technology with streaming capability
- CMOS monochrome image sensor (Sony IMX264) with 5.01 Megapixel resolution
- Global-Shutter shutter technology
- Line mode, area of interest, and long exposure functions
- C-mount lens compatible (to be ordered separately)
- IP65 and IP67 rated enclosure for robust protection
- M12, 8-pin male connector with 2 GPIOs, 1 digital input, and 1 digital output
- Power consumption ≤ 2.9 W
- GigE Vision standard Ethernet interface with 1,000 Mbit/s data transmission rate
- Compatible with SICK Vision Suite configuration software
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration using SICK Vision Suite software.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern
- Identifying - Classifying
- Identifying - Sorting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption (≤ 2.9 W) reduces energy usage
- Durable IP65/IP67 rated enclosure extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK I2D605M-2MCB71 2D Snapshot Camera is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
