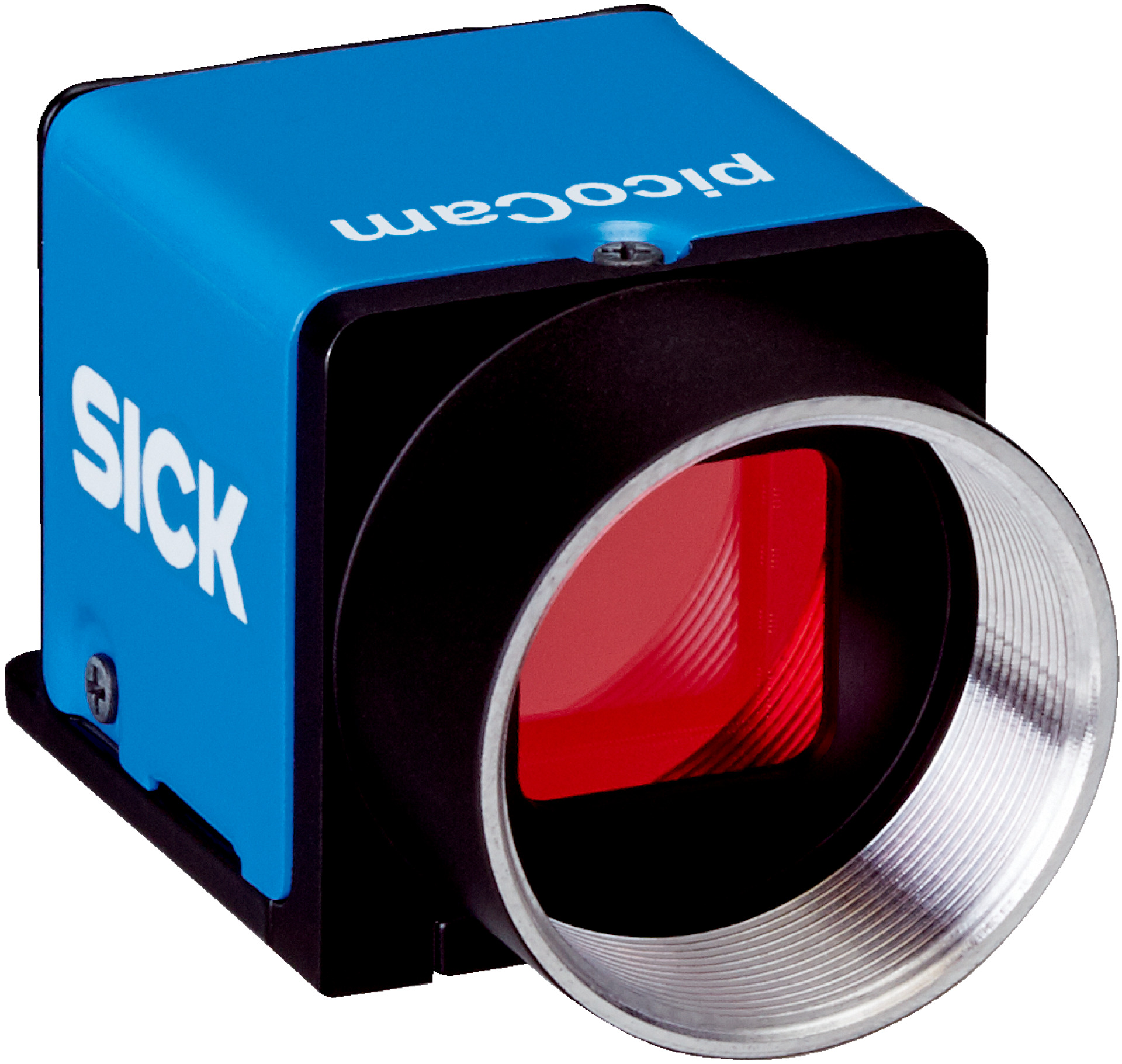

2D Snapshot Camera | Sony IMX264 Sensor | Global Shutter Technology | 2448 x 2048 Resolution | by SICK
The 2D Snapshot Camera is equipped with a Sony IMX264 CMOS color image sensor and global shutter technology, making it perfect for industrial measurement and quality control applications. With a high resolution of 2448 x 2048 pixels and a data transmission rate of 1000 Mbit/s via GigE Vision Ethernet, this camera ensures precise imaging and fast processing. Ideal for professionals seeking reliable performance in controlled environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS Color, Sony IMX264
- Shutter technology: Global-Shutter
- Sensor resolution: 2448 px x 2048 px (5.01 Mpixel)
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 8.446 mm x 7.066 mm
- Bit depth: 12 bit
- Scan/frame rate: 24 fps in freerun mode
- Exposure time: 0.035 ms to 2000 ms
- Memory: 128 MB
- Connection type: 8-pin Hirose male connector
- Supply voltage: 12 V to 24 V
- Power consumption: ≤ 3.1 W
- Enclosure rating: IP30
- Data transmission rate: 1000 Mbit/s via GigE Vision Ethernet
- Configuration software: SICK Vision Suite
- Dimensions (H x L x W): 29mm x 29mm x 29mm
- Weight: 0.1 kg
Key Features
- 2D snapshot technology with streaming capability
- CMOS Color image sensor (Sony IMX264) with global shutter
- Supports line mode, region of interest, and long exposure functions
- High sensor resolution of 2448 px x 2048 px (5.01 Mpixel)
- Exposure time range from 0.035 ms to 2000 ms
- GigE Vision standard Ethernet interface with 1000 Mbit/s data transmission rate
- 128 MB memory for image processing
- Compact dimensions of 29 mm x 29 mm x 29 mm and lightweight at 52 g
- IP30 enclosure rating suitable for controlled environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration using SICK Vision Suite software.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern
- Identifying - Classifying
- Identifying - Sorting
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 3.1 W reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

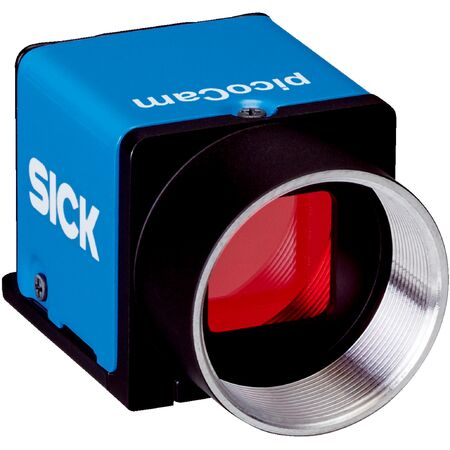

The SICK I2D305C-2RCA11 2D Snapshot Camera is available for immediate purchase, ideal for industrial measurement, quality control, and identification applications.
