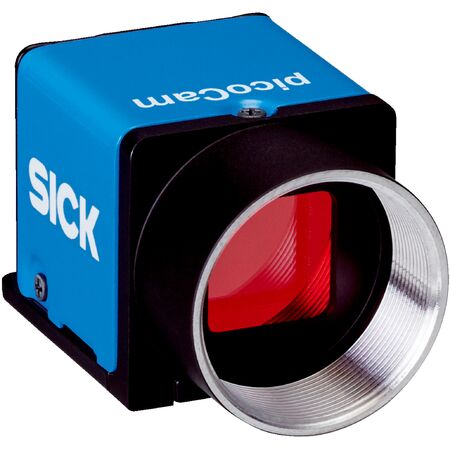

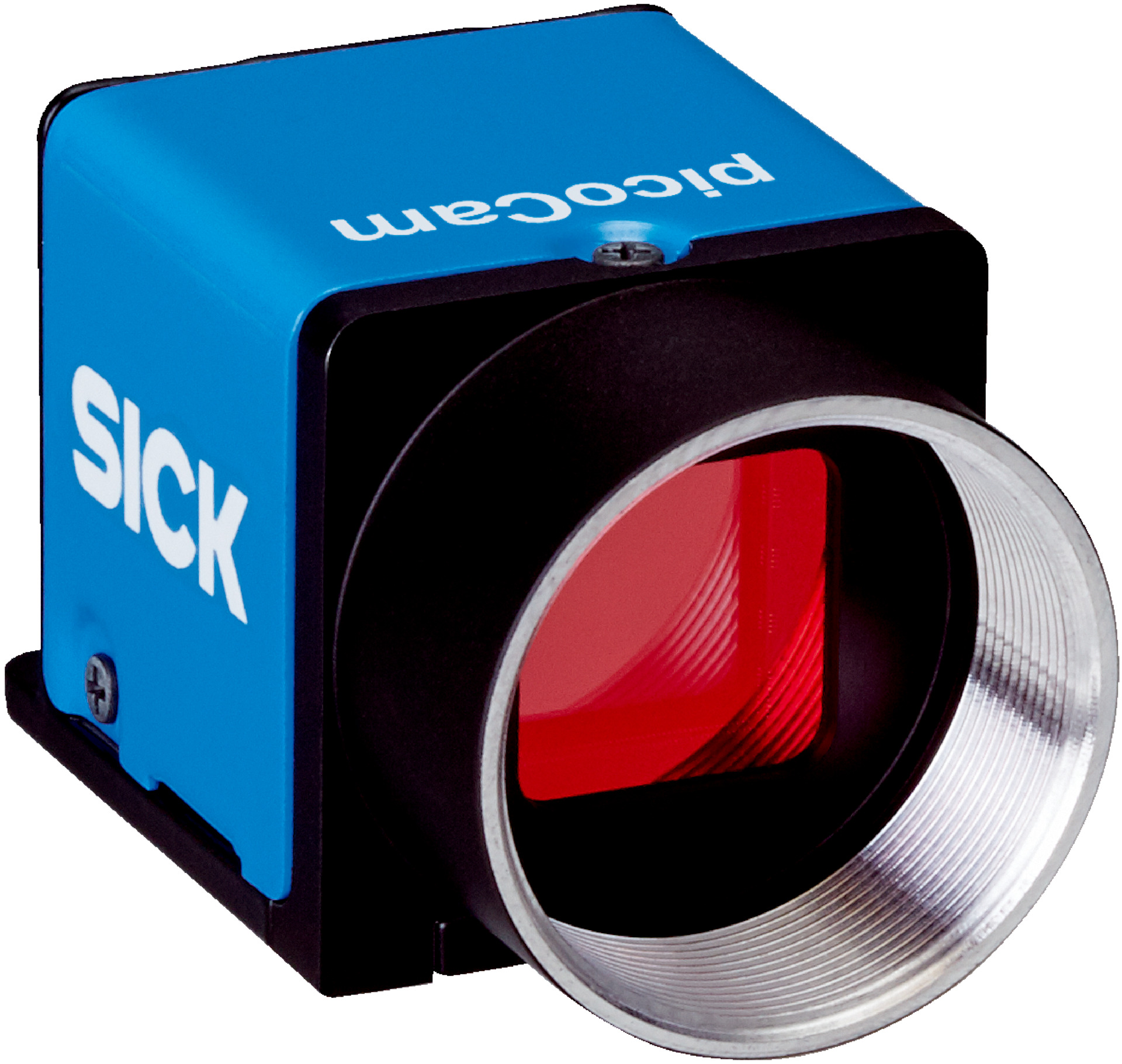

2D Snapshot Camera | Sony IMX265 Sensor | Global-Shutter Technology | 39 fps Frame Rate | by SICK
The 2D Snapshot Camera with Sony IMX265 sensor and global-shutter technology is perfect for industrial automation and quality control applications. With a high resolution of 2048 px x 1536 px and a scan/frame rate of 39 fps, it delivers precise measurements and monitoring capabilities. Ideal for professionals seeking reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS Color, Sony IMX265
- Shutter technology: Global-Shutter
- Lens mount: C-mount (lens sold separately)
- Sensor resolution: 2048 px x 1536 px (3.15 Mpixel)
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 7.066 mm x 5.3 mm
- Scan/frame rate: 39 fps in freerun mode
- Memory: 128 MB
- Exposure time: 0.032 ms to 2000 ms
- Connection type: 8-pin Hirose male connector
- Supply voltage: 12 V to 24 V
- Power consumption: ≤ 3.1 W
- Enclosure rating: IP30
- Data transmission: Ethernet, GigE Vision standard, 1000 Mbit/s
- Configuration software: SICK Vision Suite
- Shock load: 80 g
- Vibration load: 10 g, 30 Hz to 500 Hz
- Operating temperature: 0°C to +55°C
- Storage temperature: -20°C to +60°C
- Dimensions (H x L x W): 29mm x 29mm x 29mm
- Weight: 0.1 kg
Key Features
- 2D snapshot technology with streaming capability
- CMOS Color image sensor using Sony IMX265
- Global-Shutter shutter technology
- Line mode, region of interest, and long exposure functions
- C-mount lens compatible (lens to be ordered separately)
- High sensor resolution of 2048 px x 1536 px (3.15 Mpixel)
- Scan/frame rate of 39 fps in freerun mode
- 128 MB memory
- Exposure time range from 0.032 ms to 2000 ms
- Ethernet interface with GigE Vision standard and 1000 Mbit/s data transmission rate
- Configuration via SICK Vision Suite software
- Robust mechanical design with IP30 enclosure rating
- Operating temperature range 0°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper integration and configuration within industrial systems.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern
- Identifying - Classifying
- Identifying - Sorting
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 3.1 W reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK I2D303C-2RCA11 2D Snapshot Camera is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
