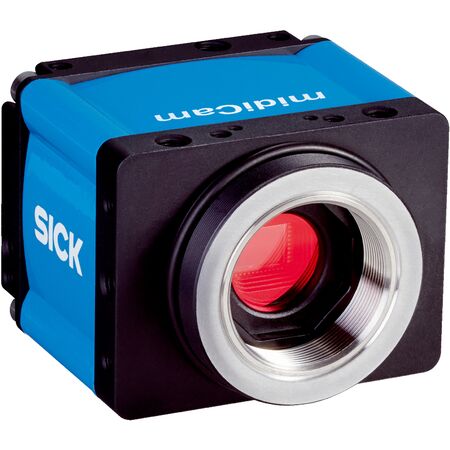

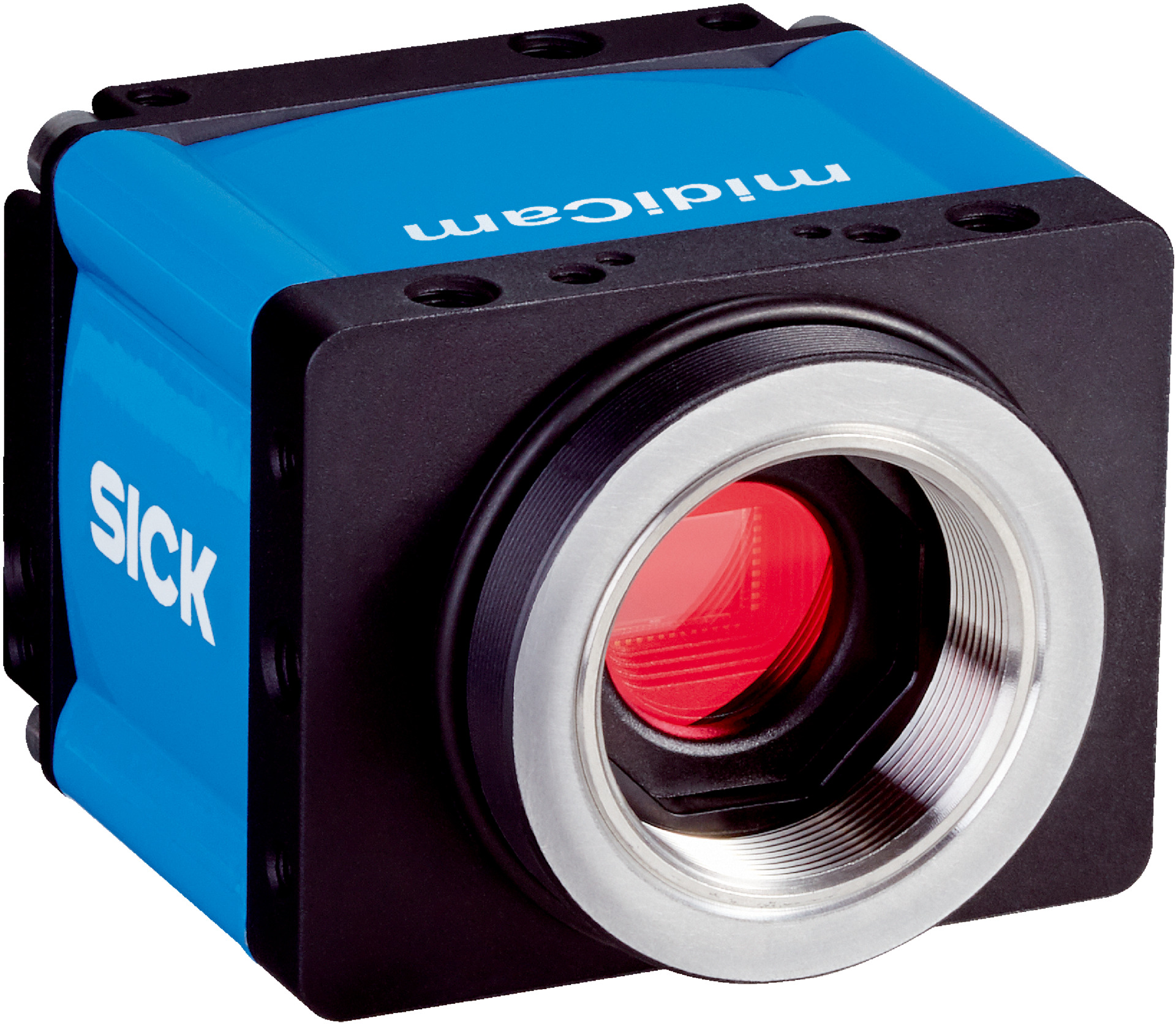

2D Snapshot Camera | Sony IMX265 Sensor | Global Shutter | IP65/IP67 Rated | by SICK
The 2D Snapshot Camera with Sony IMX265 sensor and global shutter technology is perfect for industrial automation and quality control applications. With a high resolution of 2048 px x 1536 px and robust IP65/IP67 enclosure, it ensures reliable performance in demanding environments. Ideal for measuring dimensions, monitoring quality, and identifying patterns, this camera is built for professionals seeking precision and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot with streaming
- Image sensor: CMOS Color, Sony IMX265
- Shutter technology: Global-Shutter
- Sensor resolution: 2048 px x 1536 px (3.15 Mpixel)
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 7.066 mm x 5.3 mm
- Bit depth: 12 bit
- Scan/frame rate: 39 fps in freerun mode
- Memory: 128 MB
- Exposure time: 0.032 ms to 2000 ms
- Connection type: M12, 8-pin male connector, A-coded (2 GPIOs, 1 digital input, 1 digital output)
- Supply voltage: 12 V to 24 V
- Power consumption: ≤ 2.9 W
- Enclosure rating: IP65, IP67
- Data transmission rate: 1,000 Mbit/s via Ethernet (GigE Vision Standard)
- Configuration software: SICK Vision Suite
- Shock load: 80 g (EN 60068-2-27, EN 60068-2-29)
- Vibration load: 10 g, 30 Hz to 500 Hz (EN 60068-2-6)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 41mm x 43mm x 53mm
- Weight: 0.1 kg
Key Features
- 2D snapshot technology with streaming capability
- CMOS Color image sensor (Sony IMX265) with global shutter
- High sensor resolution of 2048 px x 1536 px (3.15 Mpixel)
- Exposure time range from 0.032 ms to 2000 ms
- 128 MB memory for image processing
- M12, 8-pin male connector with 2 GPIOs, 1 digital input, 1 digital output
- Enclosure rated IP65 and IP67 for robust protection
- Supports GigE Vision standard with 1,000 Mbit/s data transmission
- Compatible with SICK Vision Suite configuration software
- Shock load resistance of 80 g and vibration load resistance of 10 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration using SICK Vision Suite software.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern, classifying, sorting
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 2.9 W reduces energy usage
- Durable IP65/IP67 rated enclosure extends product lifespan and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK I2D603C-2MCB71 2D Snapshot Camera is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
