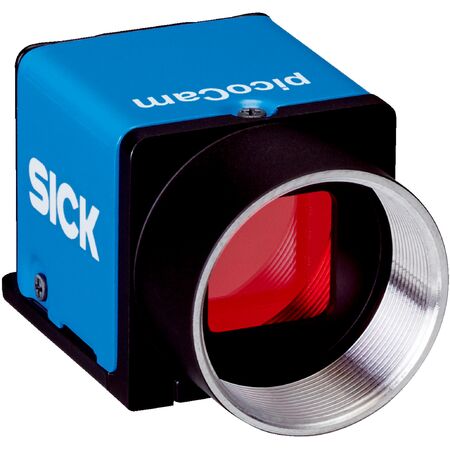

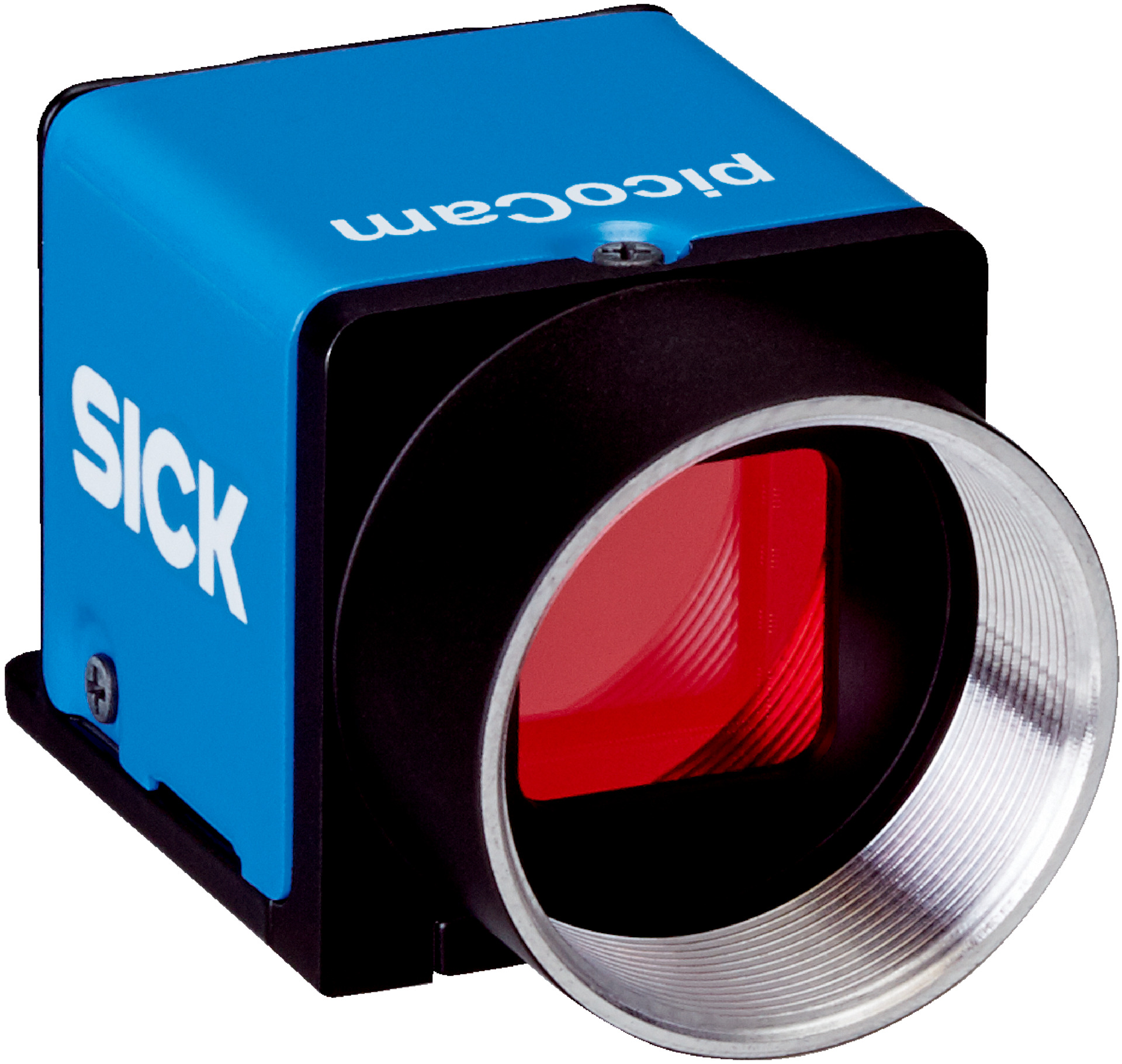

2D Snapshot Camera | Sony IMX273 CMOS Sensor | Global Shutter | 79 fps Frame Rate | by SICK
The 2D Snapshot Camera with Sony IMX273 CMOS sensor and global shutter technology is perfect for industrial automation and quality control applications. With a high resolution of 1,456 px x 1,088 px and a fast scan rate of 79 fps, it ensures precise measurements and monitoring. Designed for professionals, this camera supports various modes and is compatible with SICK Vision Suite for easy configuration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS Color, Sony IMX273
- Shutter technology: Global-Shutter
- Lens: C-mount (to be ordered separately)
- Optical format: 1/3"
- Connection type: 8-pin Hirose male connector
- Supply voltage: 12 V to 24 V
- Power consumption: ≤ 3.1 W
- Enclosure rating: IP30
- Bit depth: 12 bit
- Sensor resolution: 1,456 px x 1,088 px (1.58 Mpixel)
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 5.023 mm x 3.754 mm
- Scan/frame rate: 79 fps in freerun mode
- Memory: 128 MB
- Exposure time: 0.025 ms to 2,000 ms
- Ethernet: GigE Vision standard, UDP/IP, 1,000 Mbit/s
- Configuration software: SICK Vision Suite
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
- Shock load: 80 g
- Vibration load: 10 g, 30 Hz to 500 Hz
- Dimensions (H x L x W): 29mm x 29mm x 29mm
- Weight: 0.1 kg
Key Features
- 2D snapshot technology with streaming capability
- CMOS Color image sensor (Sony IMX273) with global shutter
- Supports line mode, region of interest, and long exposure
- High sensor resolution of 1,456 px x 1,088 px (1.58 Mpixel)
- Fast scan/frame rate of 79 fps in freerun mode
- 128 MB memory for image processing
- Ethernet interface with GigE Vision standard and 1,000 Mbit/s data transmission rate
- Compact dimensions of 29 mm x 29 mm x 29 mm and lightweight at 51 g
- Operating temperature range from 0 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration using SICK Vision Suite software.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern
- Identifying - Classifying
- Identifying - Sorting
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 3.1 W reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK I2D301C-2RCA11 2D Snapshot Camera is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
