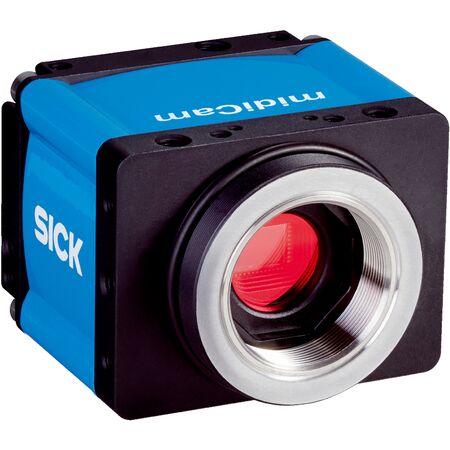

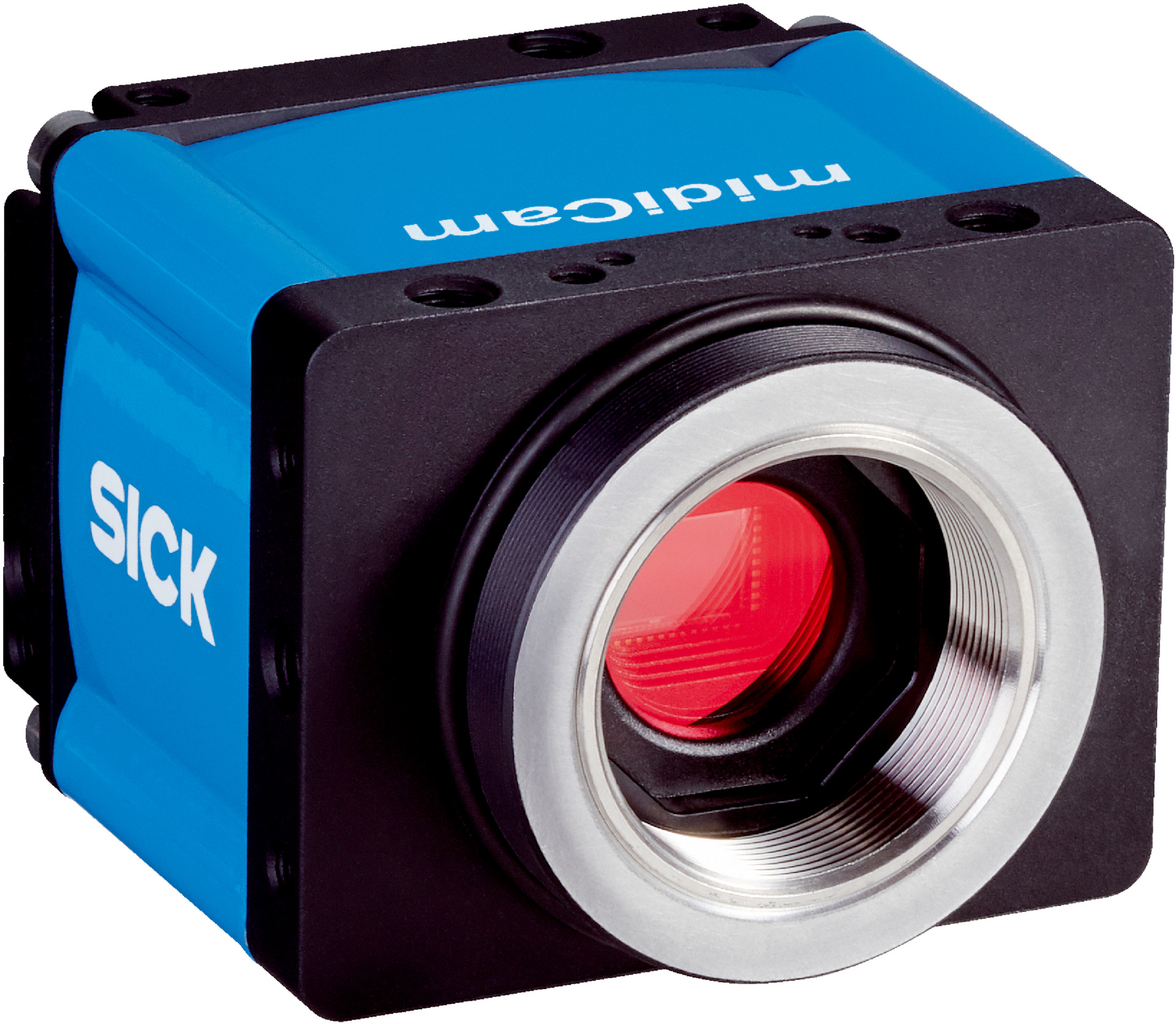

2D Snapshot Camera | Sony IMX273 Sensor | Global-Shutter Technology | 79 fps Frame Rate | by SICK
The 2D Snapshot Camera with Sony IMX273 sensor and global-shutter technology is perfect for industrial automation and quality control applications. With a high scan rate of 79 fps and robust IP65/IP67 rated enclosure, it ensures reliable performance in demanding environments. Ideal for measuring dimensions, monitoring quality, and identifying patterns, this camera is built for professionals seeking precision and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot with streaming
- Image sensor: CMOS Color, Sony IMX273
- Shutter technology: Global-Shutter
- Sensor resolution: 1456 px x 1088 px (1.58 Mpixel)
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 5.023 mm x 3.754 mm
- Scan/frame rate: 79 fps in freerun mode
- Memory: 128 MB
- Exposure time: 0.025 ms to 2000 ms
- Connection type: M12, 8-pin male connector, A-coded (2 GPIOs, 1 digital input, 1 digital output)
- Supply voltage: 12 V to 24 V
- Power consumption: ≤ 3.1 W
- Enclosure rating: IP65, IP67
- Ethernet: UDP/IP, GigE Vision Standard, 1,000 Mbit/s
- Configuration software: SICK Vision Suite
- Shock load: 80 g (EN 60068-2-27, EN 60068-2-29)
- Vibration load: 10 g, 30 Hz to 500 Hz (EN 60068-2-6)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
- Dimensions (H x L x W): 41mm x 42.7mm x 53mm
- Weight: 0.1 kg
Key Features
- 2D snapshot technology with streaming capability
- CMOS Color image sensor (Sony IMX273) with 12 bit depth
- Global-Shutter shutter technology
- Line mode, area of interest, and long exposure functions
- C-mount lens compatible (to be ordered separately)
- High scan/frame rate of 79 fps in freerun mode
- 128 MB memory for image processing
- Ethernet interface with GigE Vision standard and 1,000 Mbit/s data transmission rate
- IP65 and IP67 rated enclosure for robust protection
- Shock load resistance of 80 g and vibration load resistance of 10 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration using SICK Vision Suite software.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern
- Identifying - Classifying
- Identifying - Sorting
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 3.1 W reduces energy usage
- Durable IP65/IP67 rated enclosure extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK I2D601C-2MCB71 2D Snapshot Camera is available for immediate purchase, ideal for industrial automation, quality control, and measurement applications.
