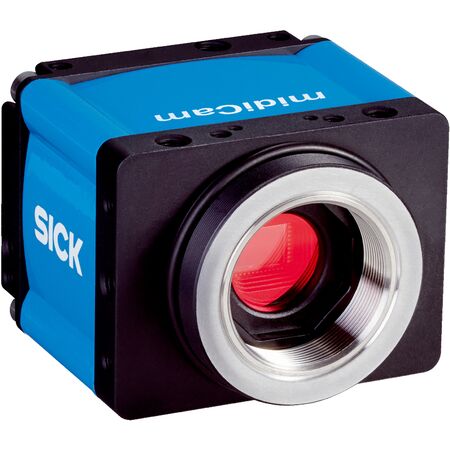

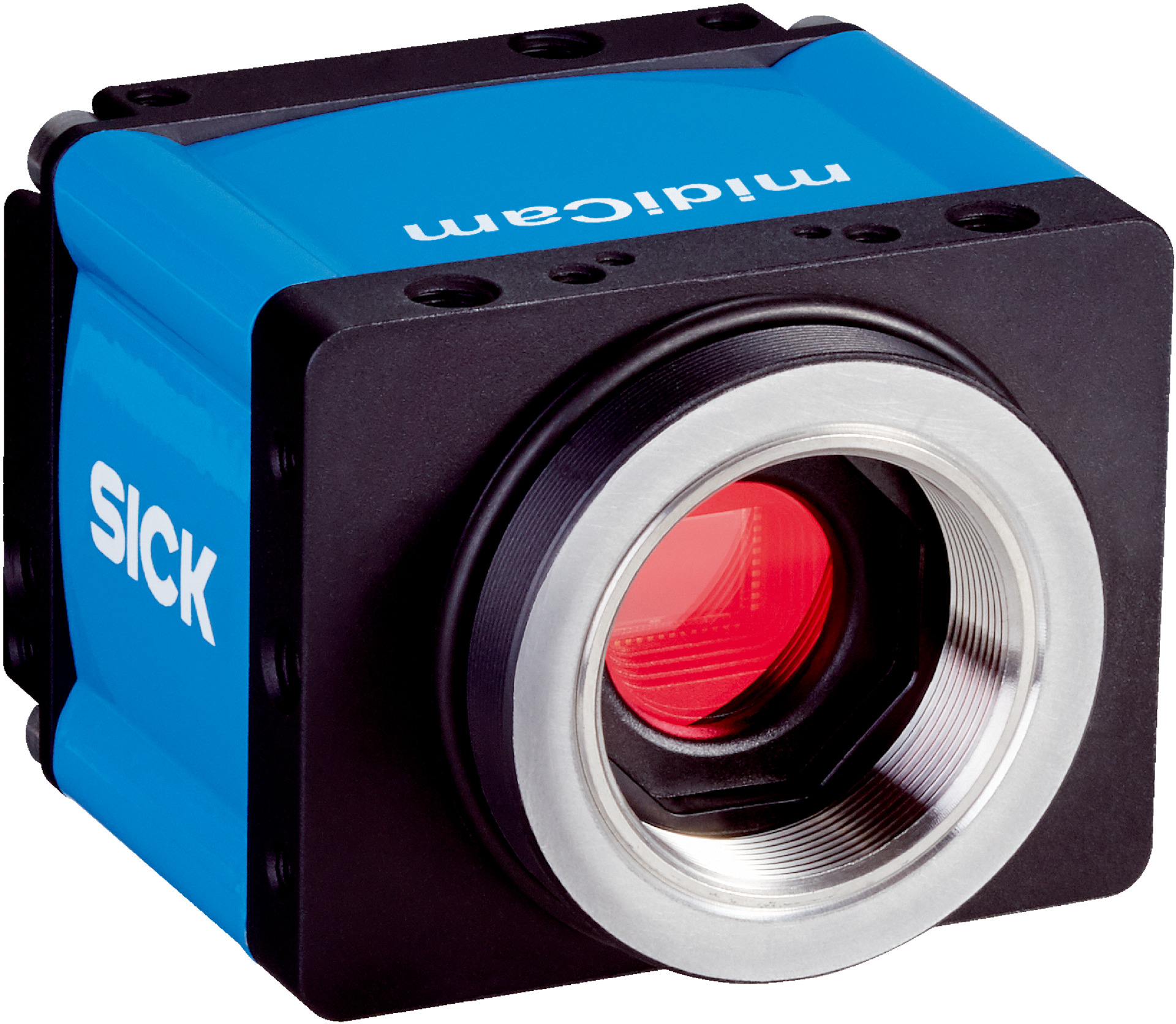

2D Snapshot Camera | Sony IMX304 Sensor | 12.29 Megapixel | IP65/IP67 Rated | by SICK
The 2D Snapshot Camera is equipped with a high-resolution Sony IMX304 CMOS color image sensor, delivering 12.29 megapixels for precise imaging. With global shutter technology and an IP65/IP67 rated enclosure, this camera is perfect for industrial applications such as dimension measurement, quality monitoring, and pattern identification. Its low power consumption and compatibility with SICK Vision Suite make it an efficient choice for any industrial setting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS Color, Sony IMX304
- Shutter technology: Global-Shutter
- Sensor resolution: 4096 px x 3000 px (12.29 Megapixel)
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 14.132 mm x 10.35 mm
- Scan/frame rate: 10 fps in freerun mode
- Memory: 128 MB
- Exposure time: 0.046 ms to 2000 ms
- Connection type: M12, 8-pin male connector, A-coded (2 GPIOs, 1 digital input, 1 digital output)
- Supply voltage: 12 V to 24 V
- Power consumption: ≤ 3.1 W
- Enclosure rating: IP65, IP67
- Ethernet: GigE Vision standard, UDP/IP, 1,000 Mbit/s
- Configuration software: SICK Vision Suite
- Dimensions (H x L x W): 41mm x 43mm x 53mm
- Weight: 0.17 kg
Key Features
- 2D snapshot technology with streaming capability
- CMOS Color image sensor (Sony IMX304) with global shutter
- High resolution: 4096 px x 3000 px (12.29 Megapixel)
- Exposure time range from 0.046 ms to 2000 ms
- IP65 and IP67 rated enclosure for robust protection
- M12, 8-pin male connector with 2 GPIOs, 1 digital input, 1 digital output
- GigE Vision standard Ethernet interface with 1,000 Mbit/s data rate
- Compatible with SICK Vision Suite configuration software
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Measuring - Dimension, contour and volume
- Monitoring and controlling - Quality
- Identifying - Pattern, classifying, sorting
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 3.1 W reduces energy usage
- Durable IP65/IP67 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK I2D612C-2MCB71 2D Snapshot Camera is available for immediate purchase, ideal for industrial measurement, quality control, and identification applications.
