2D Snapshot Imaging System PACS1000-221 | High-Quality Image Capture | Ethernet & TCP/IP Connectivity | by SICK
The 2D Snapshot Imaging System PACS1000-221 is designed for industrial automation, offering high-quality image capture with advanced Deep Learning capabilities. Ideal for pallet block and load inspection, this system features Ethernet and RJ45 connectivity, ensuring seamless integration into logistics and quality control processes. With a user-friendly web interface, it's perfect for enhancing efficiency in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Supply voltage: 24 V DC (21.6 V DC to 26.4 V DC)
- Current consumption: Typical 2.834 A at 24 V (68.01 W)
- Typical object speed: 0.5 m/s
- Interfaces: Ethernet, RJ45, TCP/IP
- Export data format: FTP (images of pallet blocks and pallet load), TCP/IP (result log)
- Configuration interface: Web-Interface
- Ambient temperature operation: 0 °C to +40 °C
- Ambient temperature storage: 0 °C to +40 °C

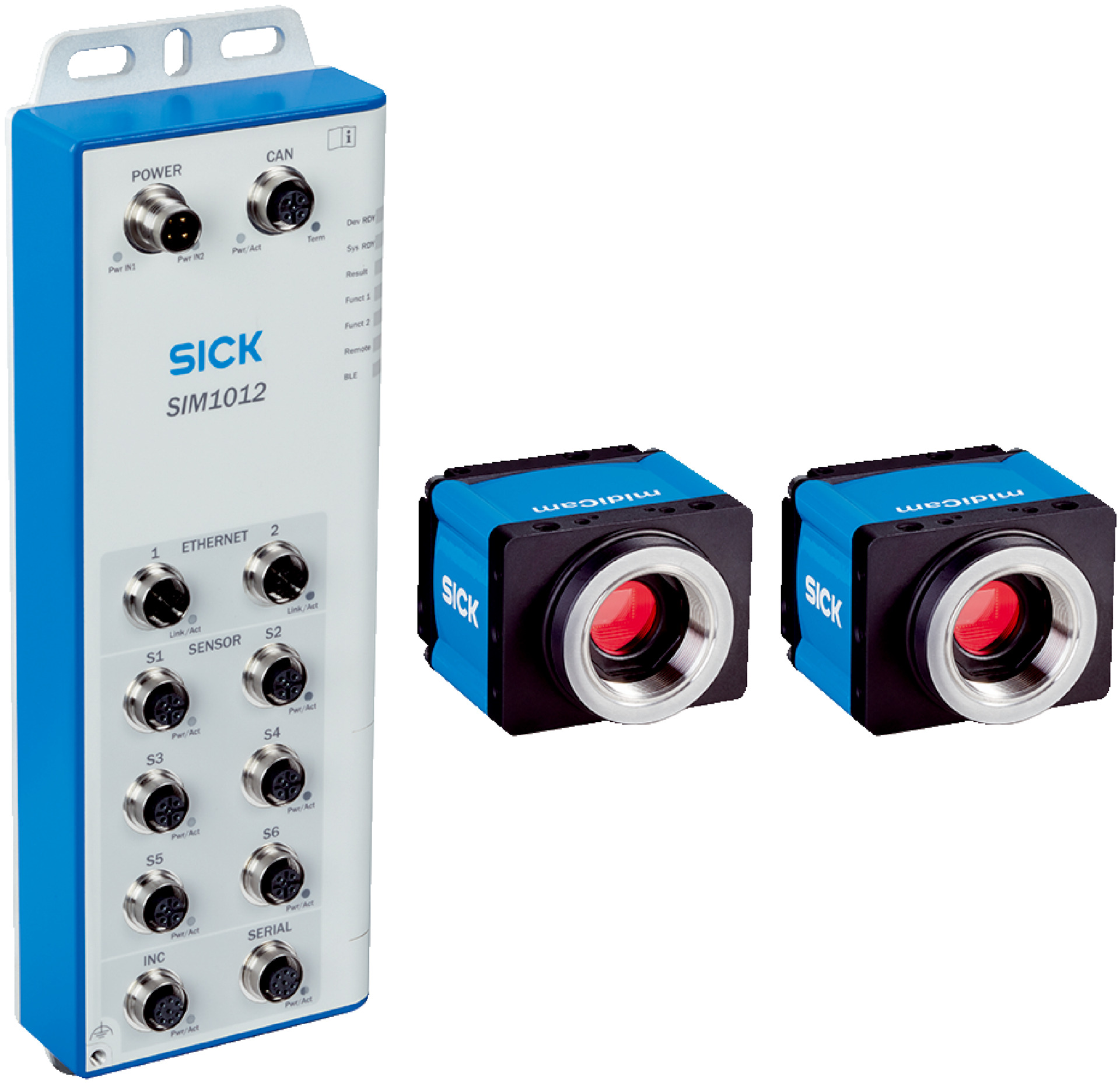

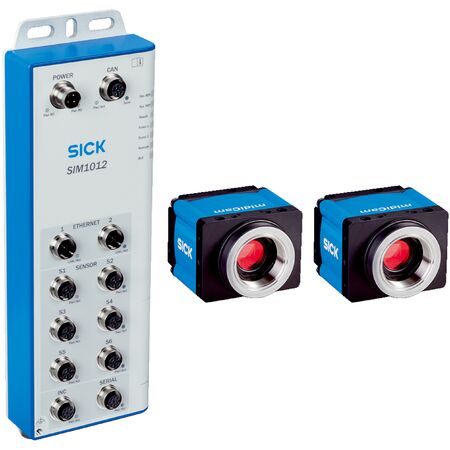

- Items supplied: 1x SIM1012 PACS with activated Deep Learning, 2x midiCam2 (1.58 megapixel, color), 2x C-mount 8 mm lens, 2x illumination unit, 2x WTB16P, 1x Gigabit switch (8 connections), 1x PACS software including classification network
- Dimensions (H x L x W): 200mm x 400mm x 300mm
- Weight: 5 kg
Key Features
- 2D snapshot technology for high-quality image capture
- Ethernet and RJ45 connectivity with TCP/IP support
- Web-interface for easy configuration
- Includes activated Deep Learning for advanced classification
- Supplied with 2 midiCam2 color cameras and illumination units
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial imaging systems and electrical connections is recommended to ensure proper setup and safety compliance.
Applications
- Industrial automation for pallet block and pallet load inspection
- Logistics and warehouse management
- Quality control in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables efficient quality control reducing waste and rework
- Supports digital inspection reducing the need for physical sampling
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PACS1000-221 2D Snapshot Imaging System is available now for immediate purchase. Ideal for industrial automation, logistics, and quality control applications.
