2D Snapshot Sensor | 1.2 Mpixel Resolution | 40 Hz Frame Rate | IP54 Rated | by SICK
The 2D Snapshot Sensor is designed for precision quality inspection and industrial automation, featuring a 1.2 Mpixel resolution and a 40 Hz scan rate. With integrated amber and blue LED illumination, it ensures optimal performance in detecting standard objects and measuring dimensions. Built with an IP54 rated zinc diecast housing, this sensor is perfect for demanding environments, providing reliable operation and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 960 px (1.2 Mpixel)
- Scan/frame rate: 40 Hz
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typically 3.5 W
- Enclosure rating: IP54 (EN 60529)
- Protection class: III
- Housing material: Zinc diecast
- Window material: PMMA
- Connection types: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Illumination colors: Amber LED (617 nm ± 50 nm), Blue LED (470 nm ± 15 nm)
- Feedback spot: Green LED (525 nm ± 15 nm)
- Alignment aid: Red LED (630 nm ± 15 nm)
- Laser class: Class 1 (IEC 60825-1:2014)
- LED class: Risk group 1 (IEC 62471)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- MTBF: 75,000 hours
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- 2D snapshot technology with programmable and configurable options
- Integrated amber and blue LED illumination with adjustable optical focus
- Global-Shutter CMOS monochrome image sensor with 1,280 px x 960 px resolution
- Working range from 50 mm to 300 mm with internal illumination
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, and RS-232
- IP54 rated zinc diecast housing with PMMA window
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
- 9 LEDs for status, alignment aids, and feedback
- Shock and vibration resistant per EN 60068 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

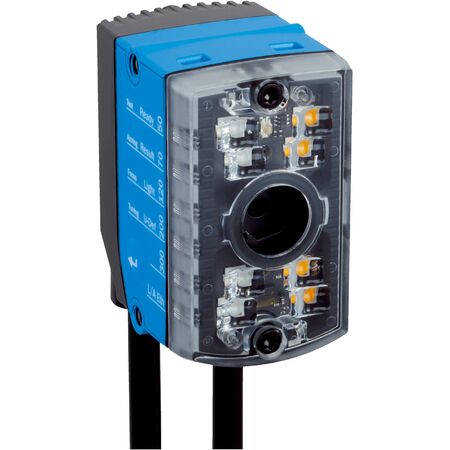

The SICK V2D611P-MMSBI4 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
