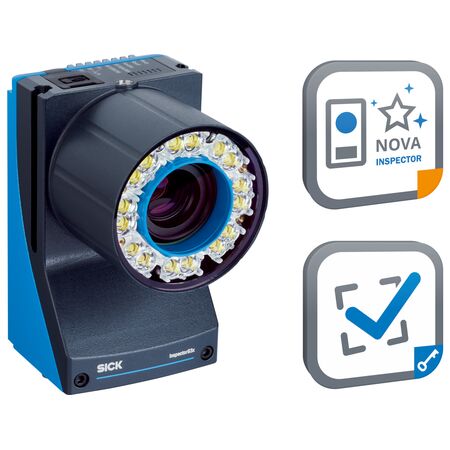

2D Snapshot Sensor | 1.3 Megapixel CMOS | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for high-performance industrial applications, featuring a 1.3 Megapixel CMOS monochrome image sensor and global-shutter technology. Ideal for quality inspection, object detection, and measurement, this sensor offers adjustable optical focus and integrated white LED illumination, ensuring precise results in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome
- Sensor resolution: 1232 px x 1024 px (1.3 Megapixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Optical focus: Adjustable manually
- Working range: 200 mm to 2,500 mm depending on lens
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- LED class: Risk group 1 (IEC 62471 / EN 62471)
- Lens: C-mount, 12 mm focal length, 1/1.8" optical format
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Weight: 545 g without lens and cables
- MTBF: 100,000 hours
- Scan/frame rate: 60 Hz
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female X-coded, M12 4-pin female D-coded
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP Dual Port
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5,000 m
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus
- Integrated white LED illumination (6,500 K ± 1,000 K)
- Global-Shutter shutter technology
- Supports multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- High sensor resolution of 1.3 Megapixels (1232 x 1024 px)
- 60 Hz scan/frame rate
- Multiple input/output options with opto-decoupled inputs and configurable I/O
- Supports external illumination and trigger options
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and network protocols to ensure optimal performance and safety.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces energy consumption compared to external lighting solutions
- Durable aluminum housing extends product lifespan, reducing waste
- Supports efficient quality inspection reducing material waste in manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D8301P-1MCICXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial quality inspection, object detection, and measurement applications.
