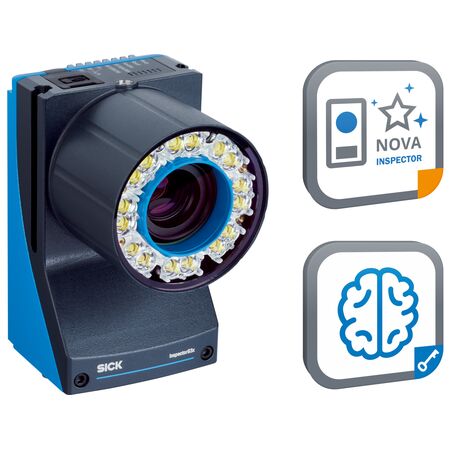

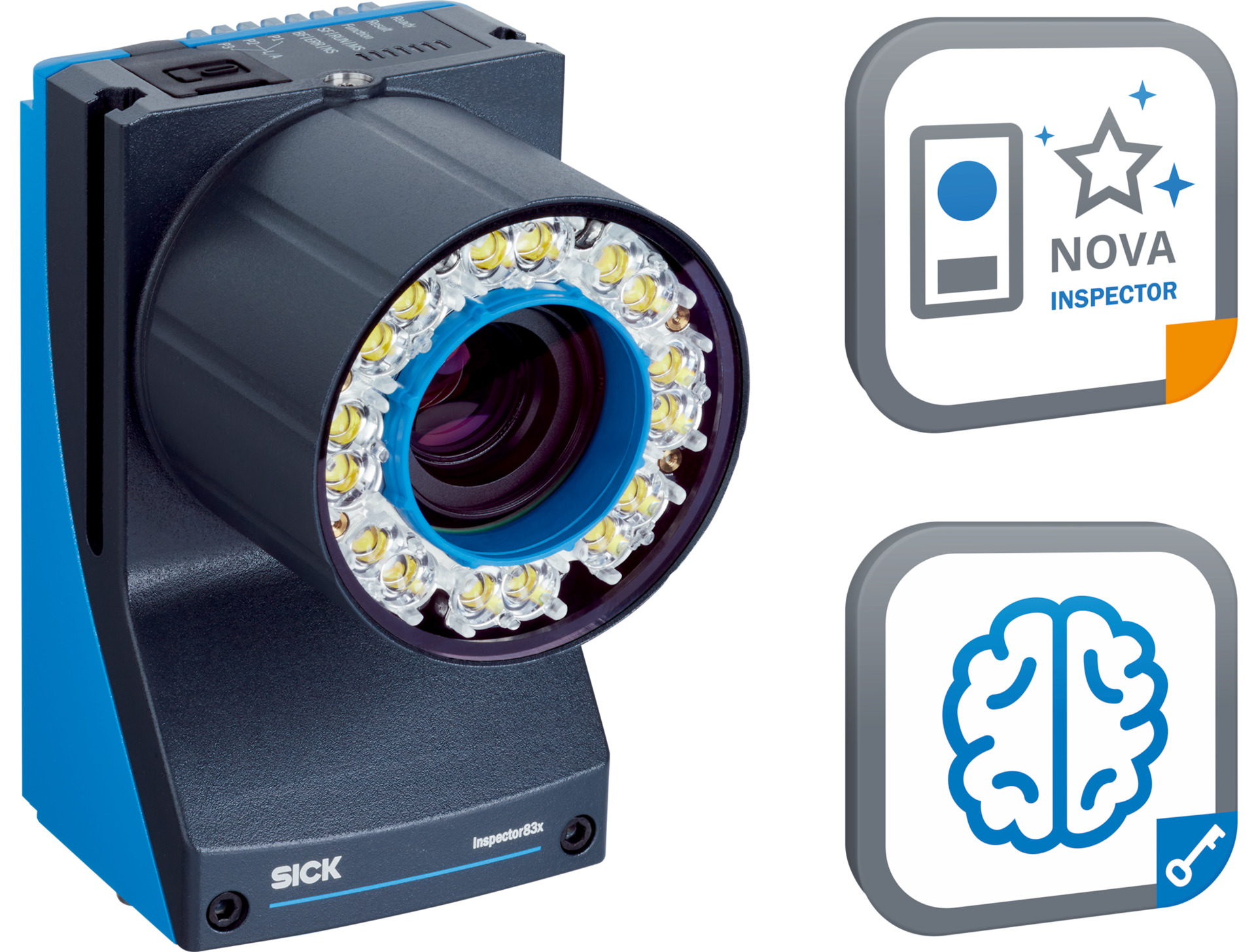

2D Snapshot Sensor | 1.3 Megapixel CMOS | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for precision in industrial automation, featuring a 1.3 Megapixel CMOS color sensor and global-shutter technology. Ideal for quality control and inspection applications, it offers adjustable optical focus and integrated white LED illumination for optimal performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor: CMOS Color, 1,232 px x 1,024 px (1.3 Megapixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Optical focus: Adjustable manually
- Working range: 200 mm to 2,500 mm depending on lens
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- LED class: Risk group 1 (IEC 62471 / EN 62471)
- Lens: C-mount, 8 mm focal length, 1/1.8" optical format
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female (Gigabit Ethernet), M12 4-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- MTBF: 100,000 hours
- Scan/frame rate: 30 Hz
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP Dual Port
- Operator interfaces: Web server
- Configuration software: Web GUI, SICK AppManager, SICK AppStudio
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Output current: ≤ 50 mA
- Maximum encoder frequency: 50 kHz
- External illumination support with voltage supply or Vout max 1 A
- Optical indicators: 8 status LEDs
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5,000 m
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.545 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K ± 1,000 K)
- Adjustable manual optical focus
- Global-Shutter shutter technology
- Multiple interface options including Ethernet, PROFINET, and EtherNet/IP
- High sensor resolution of 1.3 Megapixels (1232 x 1024 px)
- Robust aluminum die-cast housing with IP65 rating
- Supports SICK Nova Tool plug-in for custom tool development
- License included: Intelligent Inspection License with no time limit
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and network protocols to ensure optimal performance and safety.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Integrated LED illumination reduces energy consumption compared to external lighting solutions
- Durable aluminum housing extends product lifespan, reducing waste
- Programmable features allow for optimized inspection processes, minimizing resource use
Warranty Information
Warranty details are provided by the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK V2D8301P-1CCIBXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial automation, quality control, and inspection applications.
