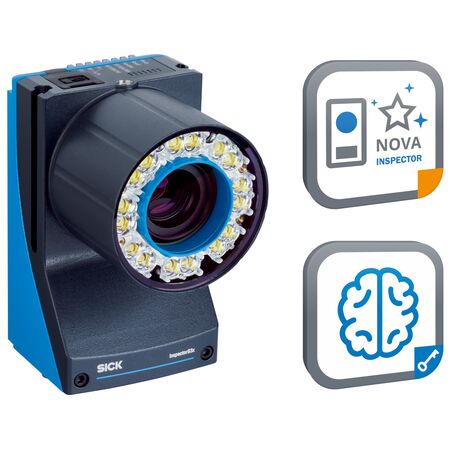

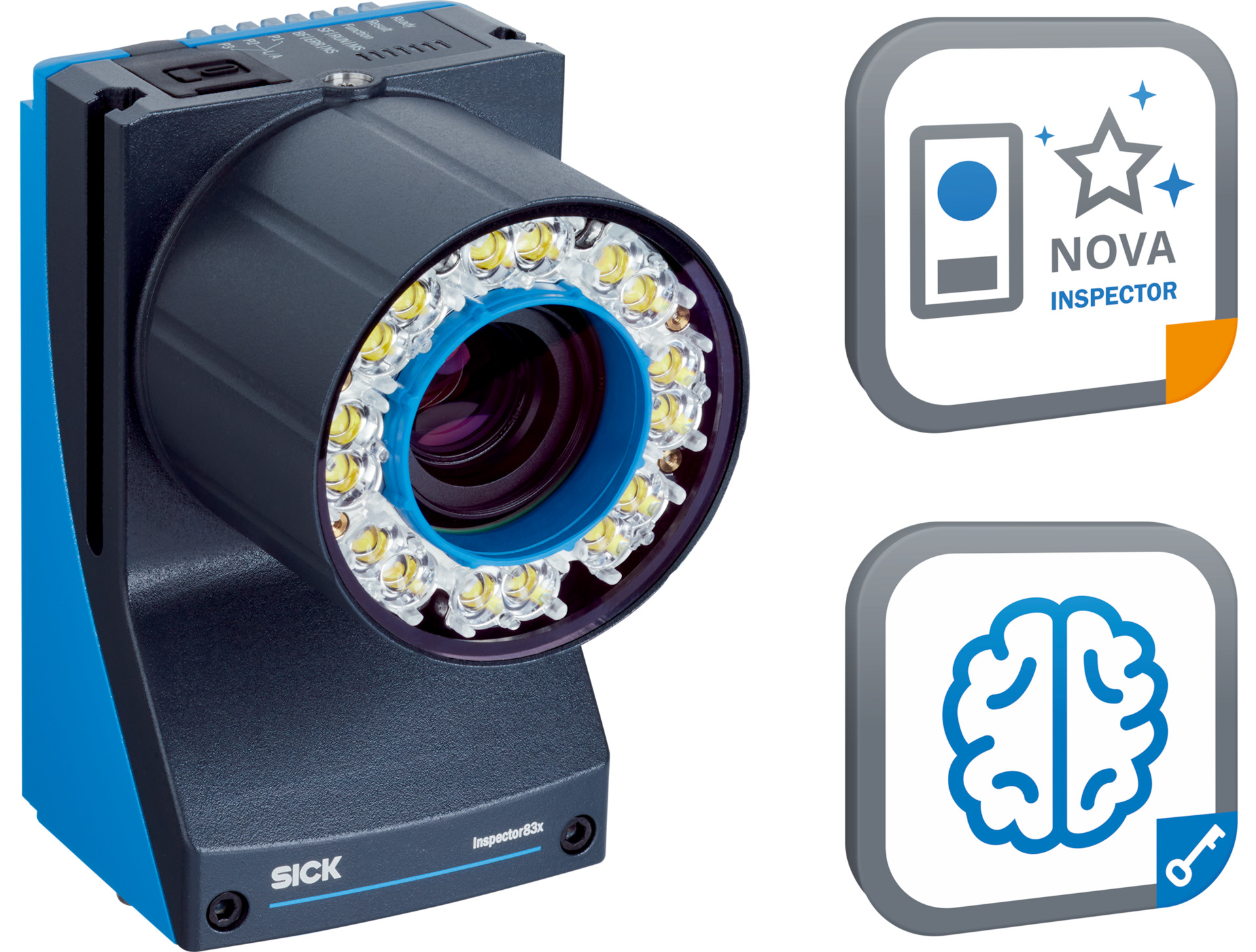

2D Snapshot Sensor | 1.3 Megapixel Resolution | Global-Shutter CMOS | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for precision in industrial automation, featuring a high-resolution 1.3 Megapixel global-shutter CMOS sensor and integrated white LED illumination. Ideal for applications like object detection, dimension measurement, and 2D code identification, this robust sensor ensures reliable performance in challenging environments with its IP65-rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor: CMOS monochrome with global shutter
- Sensor resolution: 1232 px x 1024 px (1.3 Megapixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Working range: 200 mm to 2,500 mm depending on lens
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- Lens: C-mount, 25 mm focal length, optical format 1/1.8"
- Power supply: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Interfaces: M12 and M8 connectors, Gigabit Ethernet, PROFINET, EtherNet/IP™
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Vibration and shock resistance compliant with EN 60068 standards
- MTBF: 100,000 hours
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.545 kg
Key Features
- 2D snapshot technology with programmable and configurable options
- Integrated white LED illumination (6,500 K ± 1,000 K)
- Adjustable manual optical focus with C-mount lens
- Global-Shutter CMOS monochrome image sensor
- High sensor resolution of 1.3 Megapixels (1232 x 1024 px)
- Multiple industrial Ethernet interfaces including PROFINET and EtherNet/IP™
- Robust aluminum die-cast housing with IP65 rating
- Supports SICK Nova Inspector SensorApp and SICK AppStudio for customization
- License included with no time limit, bound to hardware ID
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper configuration, connection, and compliance with electrical standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP65 rated housing extends product lifespan and reduces waste
- Supports software updates and customization to extend device usability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8301P-1MCKEXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial automation, quality inspection, and object detection applications.
