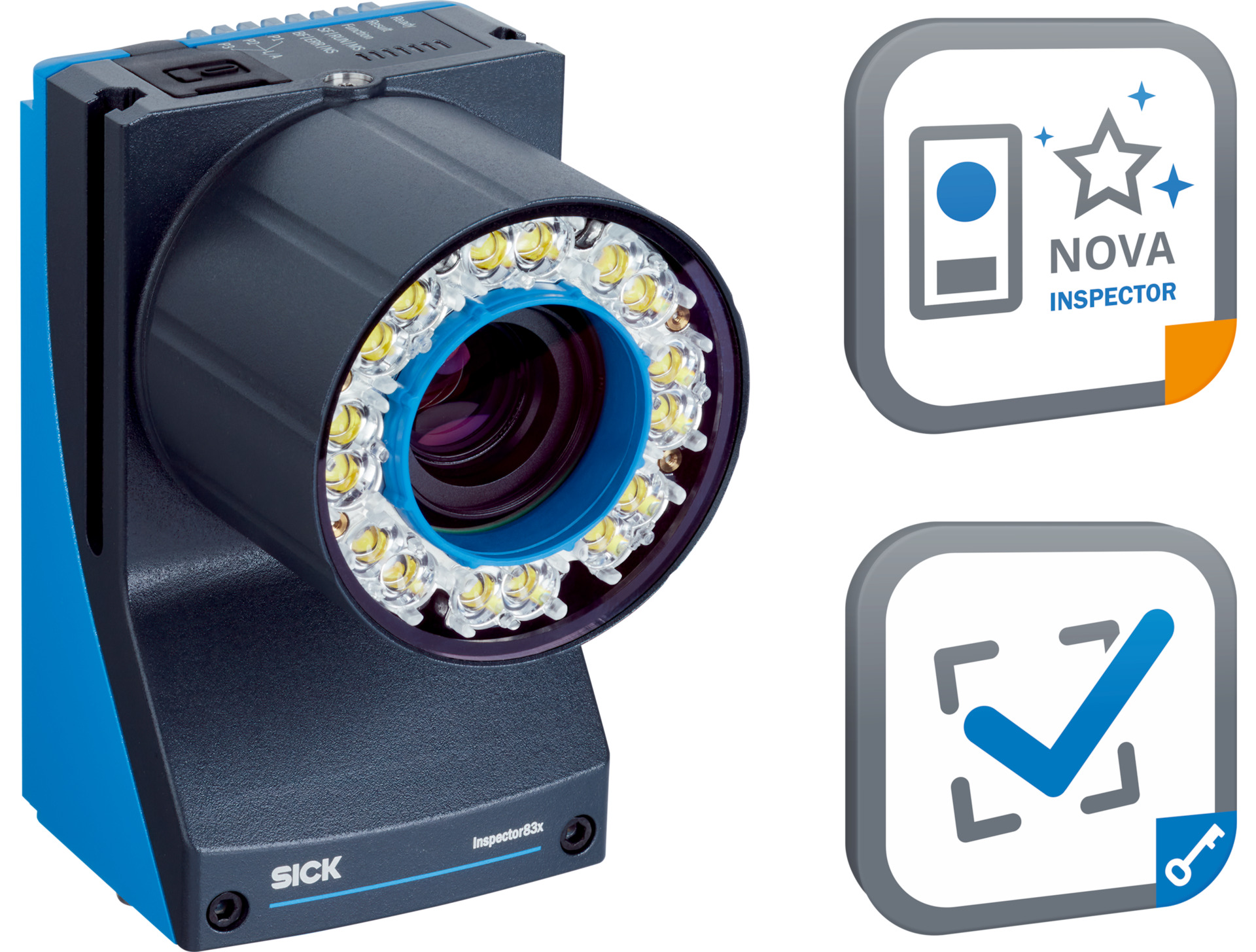

2D Snapshot Sensor | 1.3 Megapixel Resolution | Global-Shutter Technology | IP65 Rated | by SICK
The 2D snapshot sensor offers 1.3 Megapixel resolution and global-shutter technology, making it ideal for quality inspection in industrial automation. With integrated white LED illumination and support for multiple communication protocols, this sensor ensures reliable performance in various applications, including dimension measurement and pattern recognition.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor resolution: 1232 px x 1024 px (1.3 Megapixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Working range: 200 mm to 2500 mm depending on lens
- Illumination: Integrated white LED, 6500 K ± 1000 K
- Lens: C-mount, 8 mm focal length, optical format 1/1.8"
- Power supply: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female, M12 4-pin female connectors
- Communication: Ethernet TCP/IP, PROFINET, EtherNet/IP
- Frame rate: 60 Hz
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Weight: 545 g without lens and cables
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.545 kg
Key Features
- 2D snapshot technology with CMOS monochrome image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus with integrated white LED illumination
- Supports multiple communication protocols including Ethernet, PROFINET, and EtherNet/IP
- Robust IP65 aluminum die cast housing suitable for industrial environments
- High sensor resolution of 1.3 Megapixels with 60 Hz frame rate
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade
- Multiple input/output options with opto-decoupled inputs and configurable I/O
- Supports external illumination and has 8 status LEDs for optical indicators
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial automation sensors and network protocols to ensure optimal performance and safety.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Position determination in automation
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Integrated LED illumination reduces the need for external lighting, lowering energy consumption
- Durable aluminum housing extends product life and reduces waste
- Supports software upgrades and customization, minimizing hardware replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

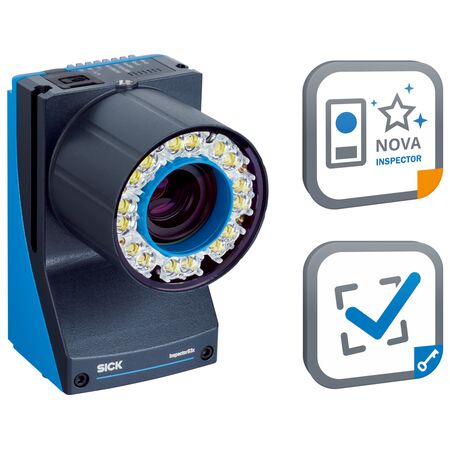

The SICK V2D8301P-1MCIBXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
