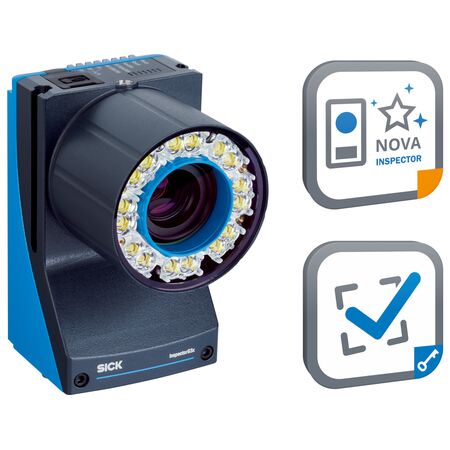

2D Snapshot Sensor | 1.3 Megapixel Resolution | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for industrial automation, featuring a high-resolution 1.3 Megapixel CMOS monochrome sensor and global-shutter technology. Ideal for quality inspection and object detection, this sensor offers integrated white LED illumination and multiple communication interfaces, ensuring reliable performance in various manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1232 px x 1024 px (1.3 Megapixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Working range: 200 mm to 2500 mm depending on lens
- Illumination: Integrated white LED, 6500 K ± 1000 K
- Power consumption: 21 W
- Supply voltage: 24 V DC ± 20%
- Connection types: M12 and M8 connectors for power, I/O, Ethernet, and illumination
- Enclosure rating: IP65
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Communication: Ethernet TCP/IP, PROFINET, EtherNet/IP
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Optical indicators: 8 status LEDs
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS monochrome sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K)
- Adjustable manual optical focus
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- High sensor resolution of 1.3 Megapixels
- Supports customer-specific tool development via SICK AppSpace and AppStudio
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical wiring standards.
Applications
- Industrial automation for quality inspection
- Object detection and measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Position determination in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces external lighting needs
- Energy-efficient 24 V DC operation minimizes power consumption
- Durable IP65 housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8301P-1MCKEXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
