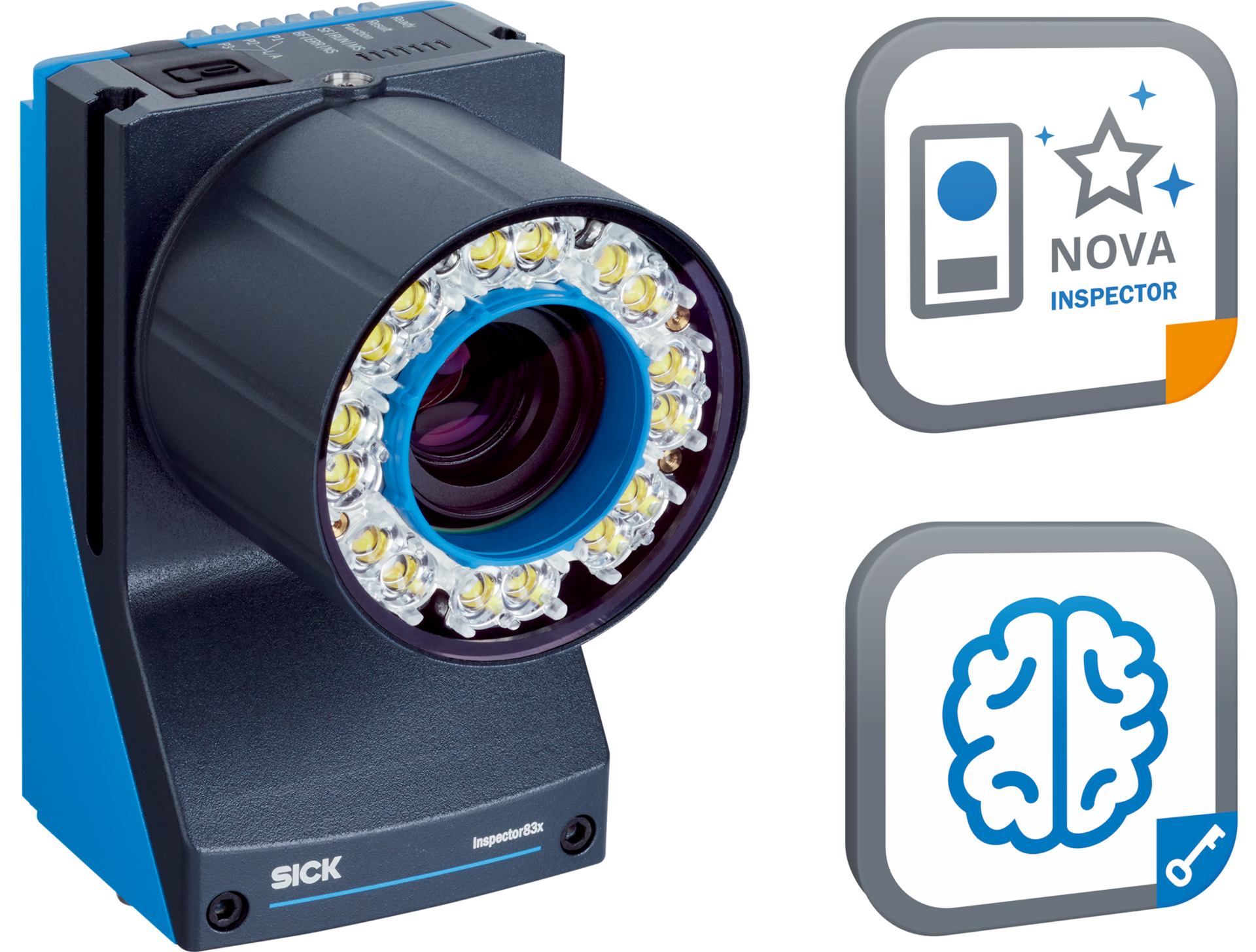

2D Snapshot Sensor | 1.3 Megapixel Resolution | Global Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor offers 1.3 Megapixel resolution and global shutter technology, making it ideal for industrial automation and quality control applications. With integrated white LED illumination and adjustable optical focus, this sensor is perfect for detecting objects, measuring dimensions, and performing optical character recognition. Built for robust use, it features an IP65 rated aluminum housing, ensuring durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor resolution: 1232 px x 1024 px (1.3 Megapixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Optical focus: Adjustable manually
- Working range: 200 mm to 2,500 mm depending on lens
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- LED class: Risk group 1 (IEC 62471 / EN 62471)
- Lens: C-mount, 16 mm focal length, 1/1.8" optical format
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), 2x M12 4-pin female (fieldbus Ethernet)
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65 (IEC 60529)
- Housing material: Aluminum die cast
- Weight: 545 g without lens and cables
- MTBF: 100,000 hours
- Scan/frame rate: 30 Hz
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP Dual Port
- Operator interfaces: Web server
- Configuration software: Web GUI, SICK AppManager, SICK AppStudio
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Output current: ≤ 50 mA
- Maximum encoder frequency: 50 kHz
- External illumination: Supported via connectors
- Optical indicators: 8 status LEDs
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5,000 m
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K ± 1,000 K)
- Adjustable manual optical focus with C-mount lens
- Global shutter technology for image capture
- Supports SICK Nova Tool plug-in for custom tool development
- Multiple industrial Ethernet interfaces including PROFINET and EtherNet/IP
- IP65 rated aluminum die cast housing for robust industrial use
- High sensor resolution of 1.3 Megapixels (1232 x 1024 px)
- Operating temperature range 0 °C to +40 °C
- Includes Intelligent Inspection License with unlimited time period
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with industrial systems.
Applications
- Industrial automation for detecting standard objects
- Measuring dimensions, contours, and volume
- Counting and number measurement
- 2D code identification
- Optical character recognition (OCR)
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Integrated LED illumination reduces energy consumption compared to traditional lighting
- Durable aluminum housing extends product lifespan, reducing waste
- Programmable and configurable software reduces need for hardware replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

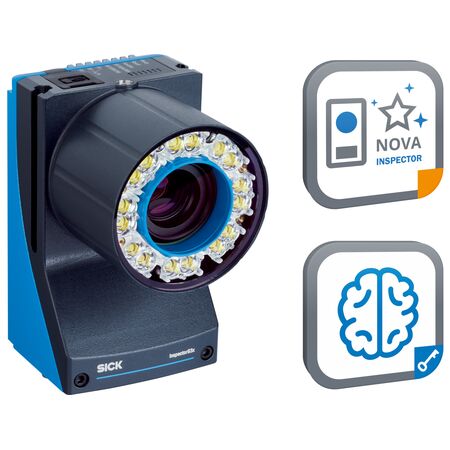

The SICK V2D8301P-1CCKDXAF1SXXXX sensor is available for immediate purchase, ideal for industrial automation, quality control, and inspection applications.
