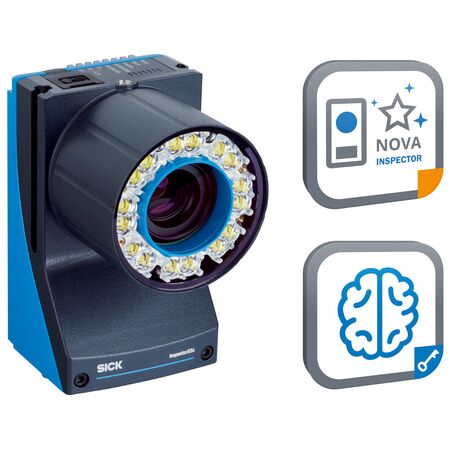

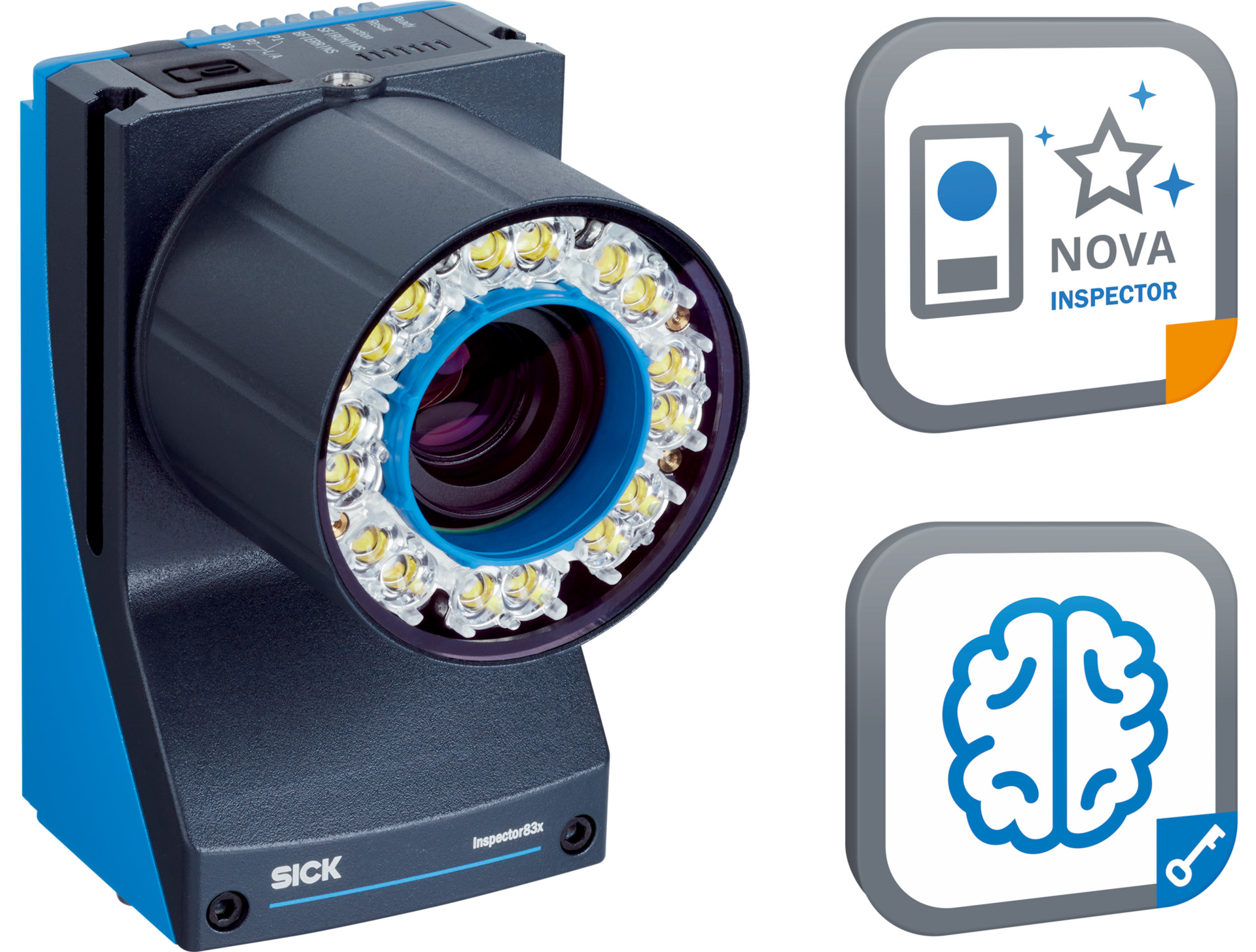

2D Snapshot Sensor | 1.3 Megapixel Resolution | Global-Shutter Technology | Integrated LED Illumination | by SICK
The 2D Snapshot Sensor offers a high-resolution 1.3 Megapixel image with global-shutter technology, making it perfect for industrial automation and inspection applications. With integrated white LED illumination and programmable features via SensorApp Nova Inspector, this sensor is designed for detecting objects, measuring dimensions, and identifying 2D codes. Its robust IP65-rated aluminum housing ensures durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1232 px x 1024 px (1.3 Megapixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Working range: 200 mm to 2500 mm depending on lens
- Illumination: Integrated white LED, 6500 K ± 1000 K
- Shutter technology: Global-Shutter
- Lens: C-mount, 12 mm focal length, optical format 1/1.8"
- Power supply: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Connection types: M12 and M8 connectors for power, I/O, Ethernet, and external illumination
- Data transmission rates: 10/100/1000 Mbit/s Ethernet
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Vibration and shock resistance compliant with EN 60068 standards
- MTBF: 100,000 hours
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K)
- Adjustable manual optical focus
- Global-Shutter shutter technology
- High sensor resolution of 1.3 Megapixels (1232 x 1024 px)
- Multiple industrial Ethernet interfaces including PROFINET and EtherNet/IP
- Robust aluminum die-cast housing with IP65 rating
- Supports SICK Nova Tool plug-in for custom tool development
- License bound to hardware ID with no time limit
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns
- Classifying and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces energy consumption compared to traditional lighting
- Durable aluminum housing extends product lifespan, reducing waste
- Supports software updates and tool customization, minimizing hardware replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK V2D8301P-1CCICXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial automation and inspection applications.
