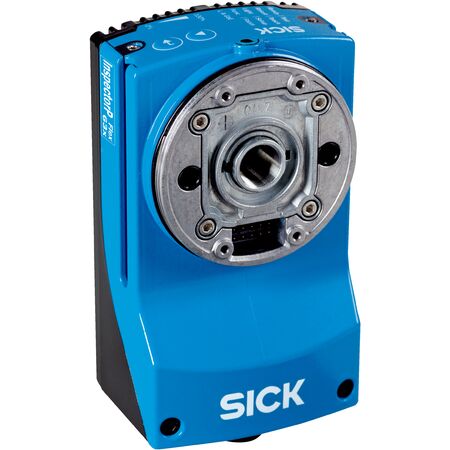

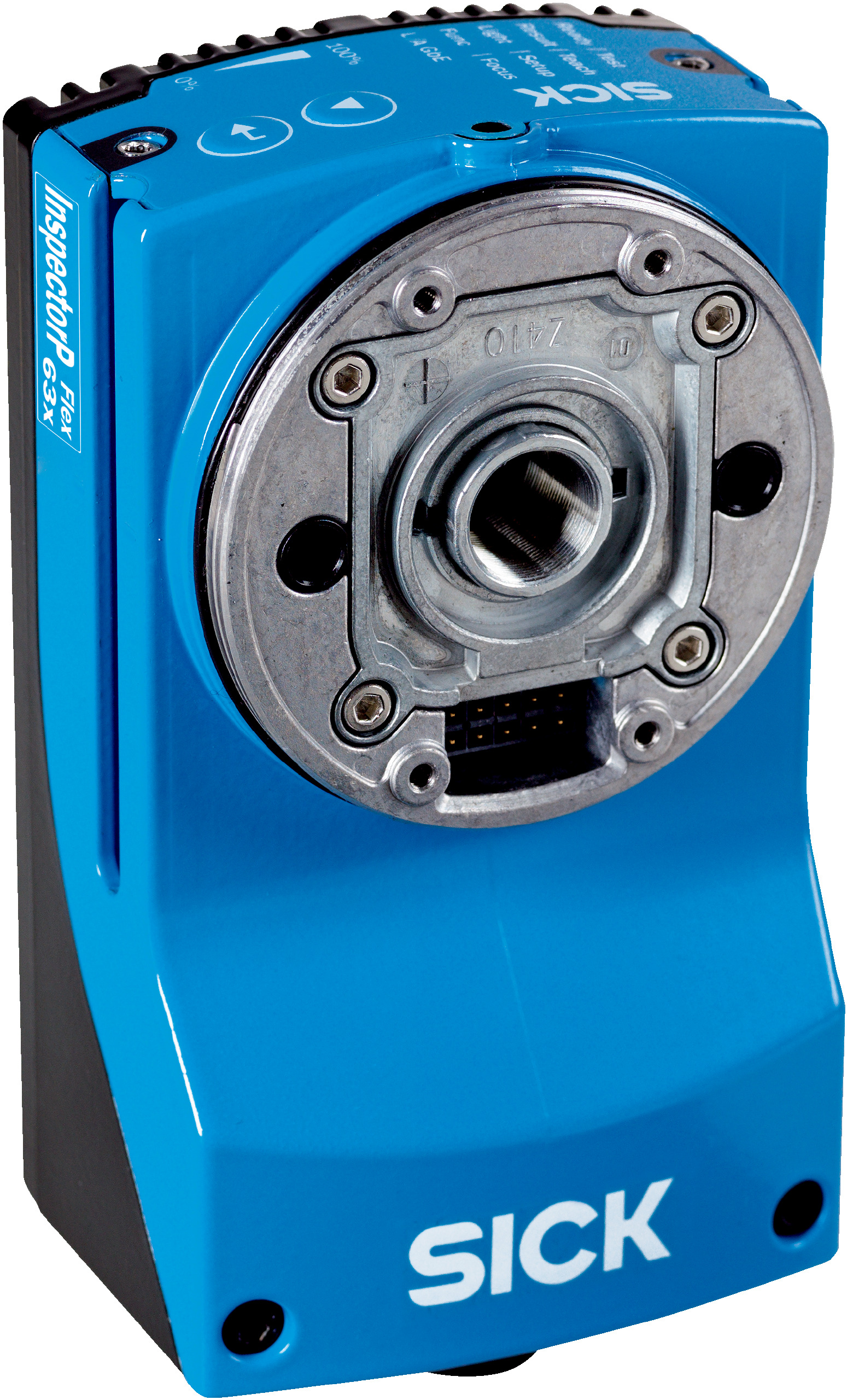

2D Snapshot Sensor | 1.3 Megapixel Resolution | IP67 Rated | Global-Shutter Technology | by SICK
The 2D Snapshot Sensor is designed for precision quality inspection in industrial settings, featuring a 1.3 Megapixel CMOS monochrome sensor and global-shutter technology. With an IP67 rated aluminum housing, it ensures durability and reliability in harsh environments, making it ideal for dimension measurement, 2D code identification, and pattern recognition applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 1024 px (1.3 Megapixel)
- Scan/frame rate: 50 Hz
- Supply voltage: 12 V DC to 24 V DC ±20%
- Power consumption: Typically 10 W ±20%
- Connection types: M12 17-pin male, M8 4-pin female USB (not used), M12 8-pin Gigabit Ethernet, M8 4-pin female for external illumination
- Protection class: III (EN 60950-1:2014-08)
- Enclosure rating: IP67 (EN 60529)
- Housing material: Aluminum die cast
- Window material: PMMA
- Laser class: 1 (IEC 60825-1:2014 compliant)
- Communication protocols: Ethernet TCP/IP, PROFINET, CAN, EtherNet/IP, Serial RS-232/RS-422
- Operator interface: Web server
- Configuration software: SICK AppStudio
- Inputs/outputs: 2 opto-decoupled inputs, 4 configurable inputs/outputs
- Output current: ≤ 100 mA
- Maximum encoder frequency: 1 kHz
- Indicators: 11 LEDs, 16 LED bar graphs, acoustic beeper
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- 2D snapshot technology with 1.3 Megapixel CMOS monochrome sensor
- Programmable with SensorApp Nova Inspector
- Global-Shutter shutter technology
- Adjustable optical focus
- Supports multiple illumination colors: White, Red, Blue, Infrared (accessories ordered separately)
- Laser alignment aid (Class 1 laser, compliant with IEC 60825-1:2014)
- Multiple communication interfaces including Ethernet, PROFINET, CAN, EtherNet/IP, and serial RS-232/RS-422
- IP67 rated aluminum die cast housing with PMMA window
- Supports image and data logging via microSD and external FTP
- Equipped with optical and acoustic indicators for status feedback
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables precise quality control reducing waste and rework
- Durable IP67 housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D631P-2MXSXB0 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and measurement applications.
