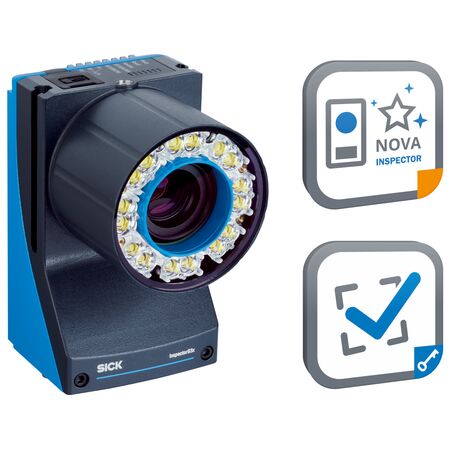

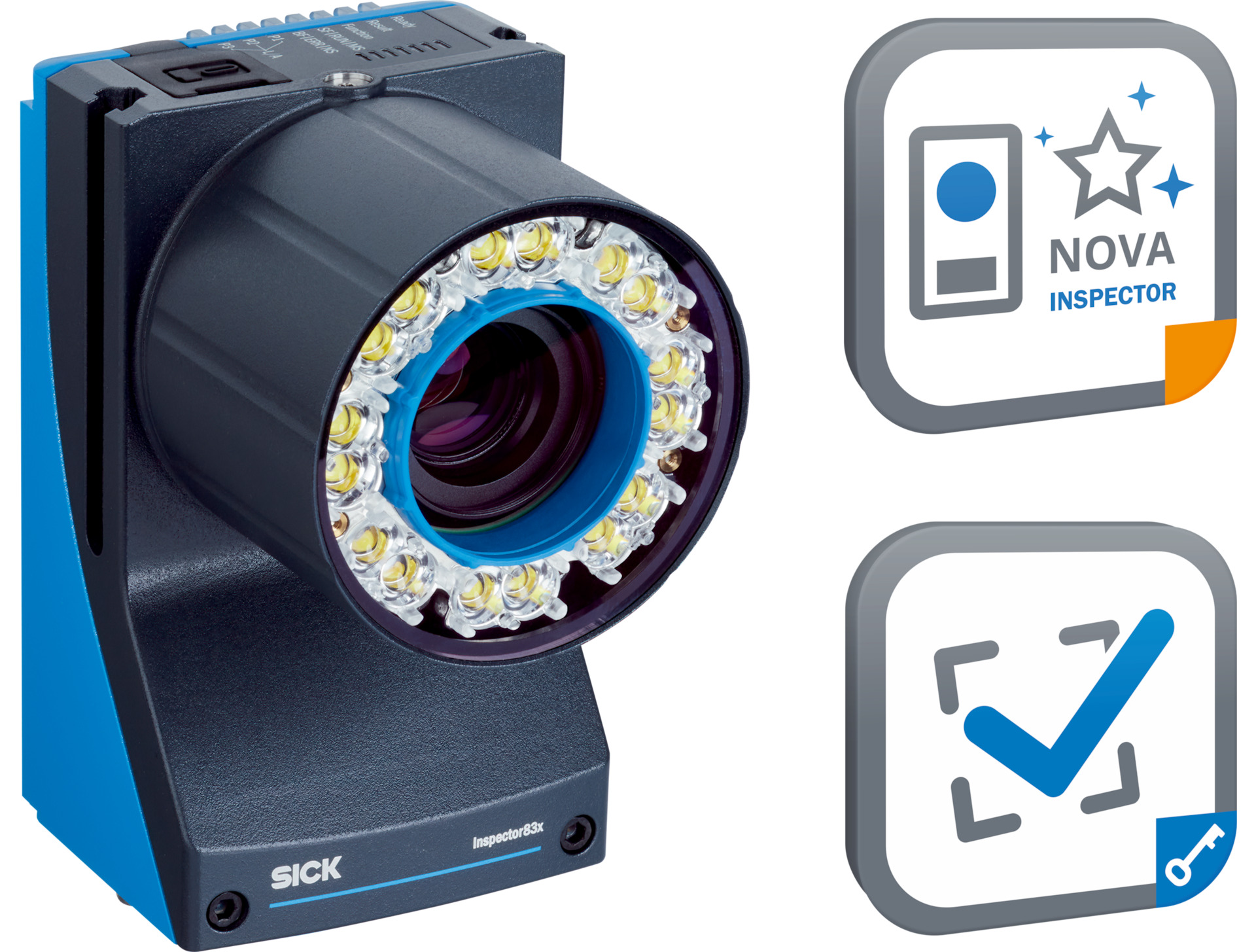

2D Snapshot Sensor | 1.3 Mpixel Resolution | Integrated LED Illumination | Global-Shutter Technology | by SICK
The 2D Snapshot Sensor is designed for industrial automation, featuring a 1.3 Mpixel resolution and integrated white LED illumination for optimal performance. Ideal for quality inspection and object detection, this sensor supports multiple communication protocols and is programmable via SensorApp Nova Inspector, ensuring versatility in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,232 px x 1,024 px (1.3 Mpixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Working range: 200 mm to 2,500 mm depending on lens
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- Power consumption: 21 W
- Supply voltage: 24 V DC ± 20%
- Enclosure rating: IP65
- Connection types: Multiple M12 and M8 connectors for power, I/O, Ethernet, and external illumination
- Communication protocols: Ethernet TCP/IP, PROFINET, EtherNet/IP
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Vibration and shock resistance compliant with EN 60068 standards
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K)
- Adjustable manual optical focus
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP
- Robust aluminum die-cast housing with IP65 rating
- Supports customer-specific tool development via SICK AppSpace and AppStudio
- Global-Shutter shutter technology for precise image capture
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial sensor systems and electrical wiring is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for quality inspection
- Object detection and measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Position determination in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces external lighting needs
- Energy-efficient 24 V DC operation minimizes power consumption
- Durable IP65 housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8301P-1CCICXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
