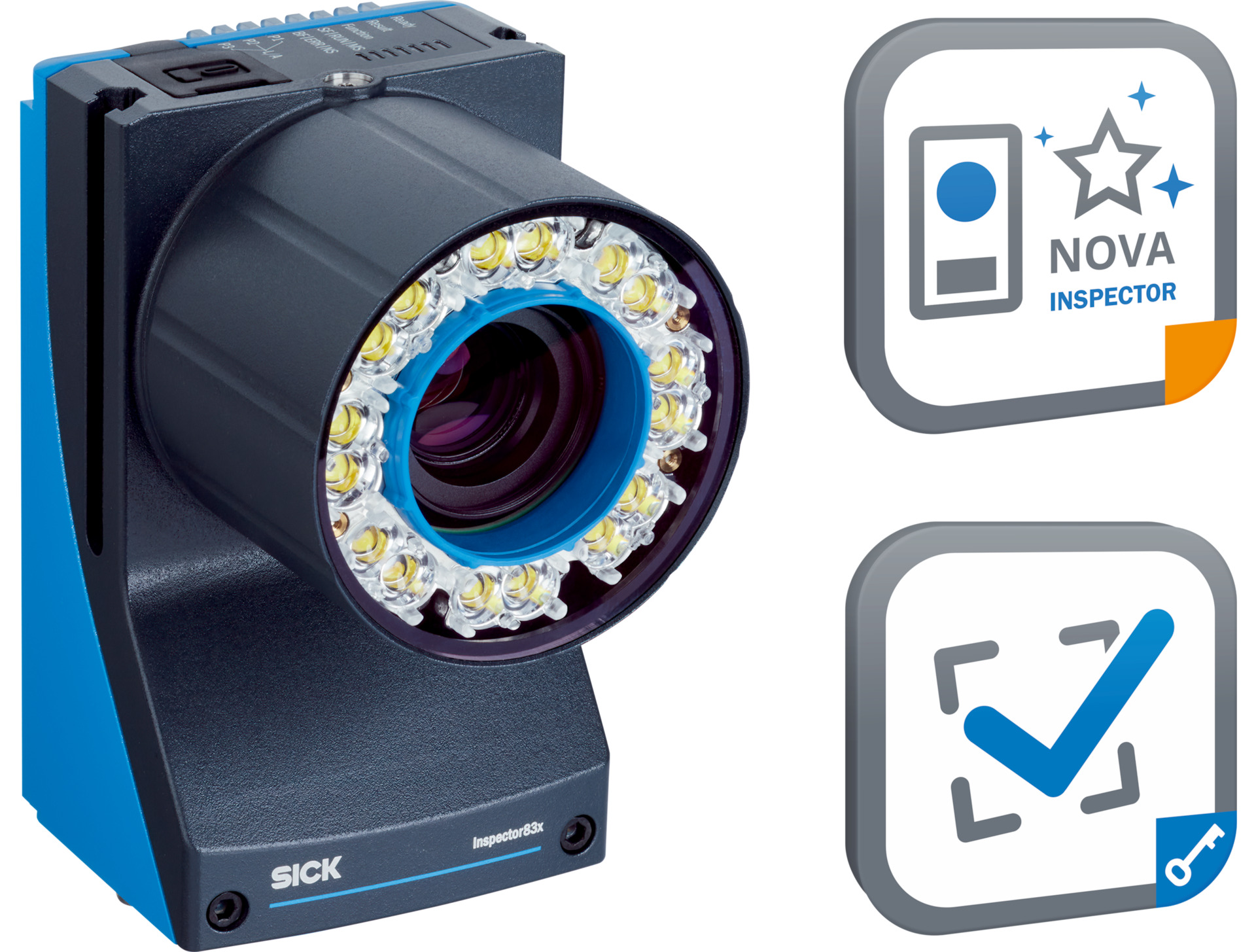

2D Snapshot Sensor | 1.3 Mpixel Resolution | IP65 Rated | Global-Shutter Technology | by SICK
The 2D Snapshot Sensor is designed for quality inspection in manufacturing, featuring a 1.3 Mpixel resolution and robust IP65-rated aluminum housing. With integrated white LED illumination and programmable capabilities via SensorApp Nova Inspector, this sensor excels in dimension measurement, 2D code identification, and pattern recognition, making it ideal for automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,232 px x 1,024 px (1.3 Mpixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Working range: 200 mm to 2,500 mm depending on lens
- Power consumption: 21 W
- Supply voltage: 24 V DC ± 20%
- Enclosure rating: IP65
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female, M12 4-pin female connectors
- Scan/frame rate: 30 Hz
- Illumination color: White LED, 6,500 K ± 1,000 K
- LED class: Risk group 1 (IEC 62471)
- Housing material: Aluminum die cast
- MTBF: 100,000 hours
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K)
- Adjustable manual optical focus
- Global-Shutter shutter technology
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- Supports customer-specific tool development via SICK AppSpace and AppStudio
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Position determination in automation
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Integrated LED illumination reduces need for external lighting, lowering energy consumption
- Durable aluminum housing extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

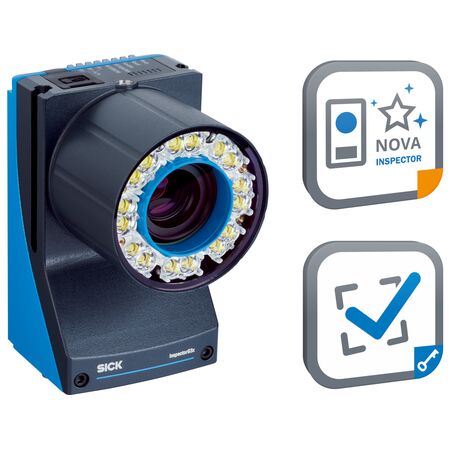

The SICK V2D8301P-1CCKDXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
