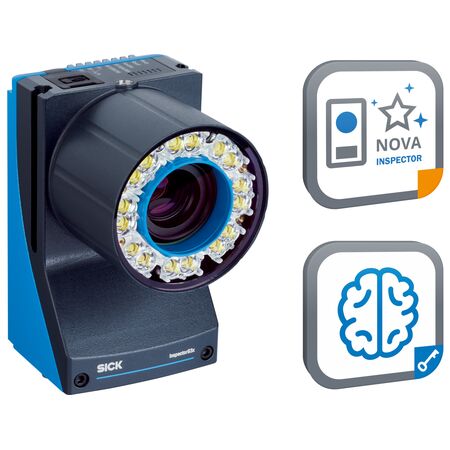

2D Snapshot Sensor | 1.3 Mpixel Resolution | IP65 Rated | Global-Shutter Technology | by SICK
The 2D Snapshot Sensor offers 1.3 Mpixel resolution and global-shutter technology, making it ideal for precise object detection and measurement in industrial automation. With a robust IP65-rated aluminum housing and multiple interface options, this sensor is built for reliability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1232 px x 1024 px (1.3 Mpixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Scan/frame rate: 30 Hz
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), 2x M12 4-pin female (fieldbus Ethernet)
- Illumination color: White LED, 6500 K ± 1000 K
- LED class: Risk group 1 (IEC 62471 / EN 62471)
- Housing material: Aluminum die cast
- MTBF: 100,000 hours
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5000 m
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP Dual Port
- Operator interfaces: Web server
- Configuration software: Web GUI, SICK AppManager, SICK AppStudio
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Optical indicators: 8 status LEDs
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Includes Intelligent Inspection License with no time limit
- Adjustable manual optical focus with integrated white LED illumination
- Global-Shutter shutter technology
- Multiple interface options including Ethernet, PROFINET, and EtherNet/IP
- Robust aluminum die-cast housing with IP65 rating
- Supports SICK AppSpace and SICK AppStudio for tool development and customization
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and network protocols to ensure optimal performance and safety.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8301P-1CCKEXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial automation applications requiring precise object detection, measurement, and identification.
