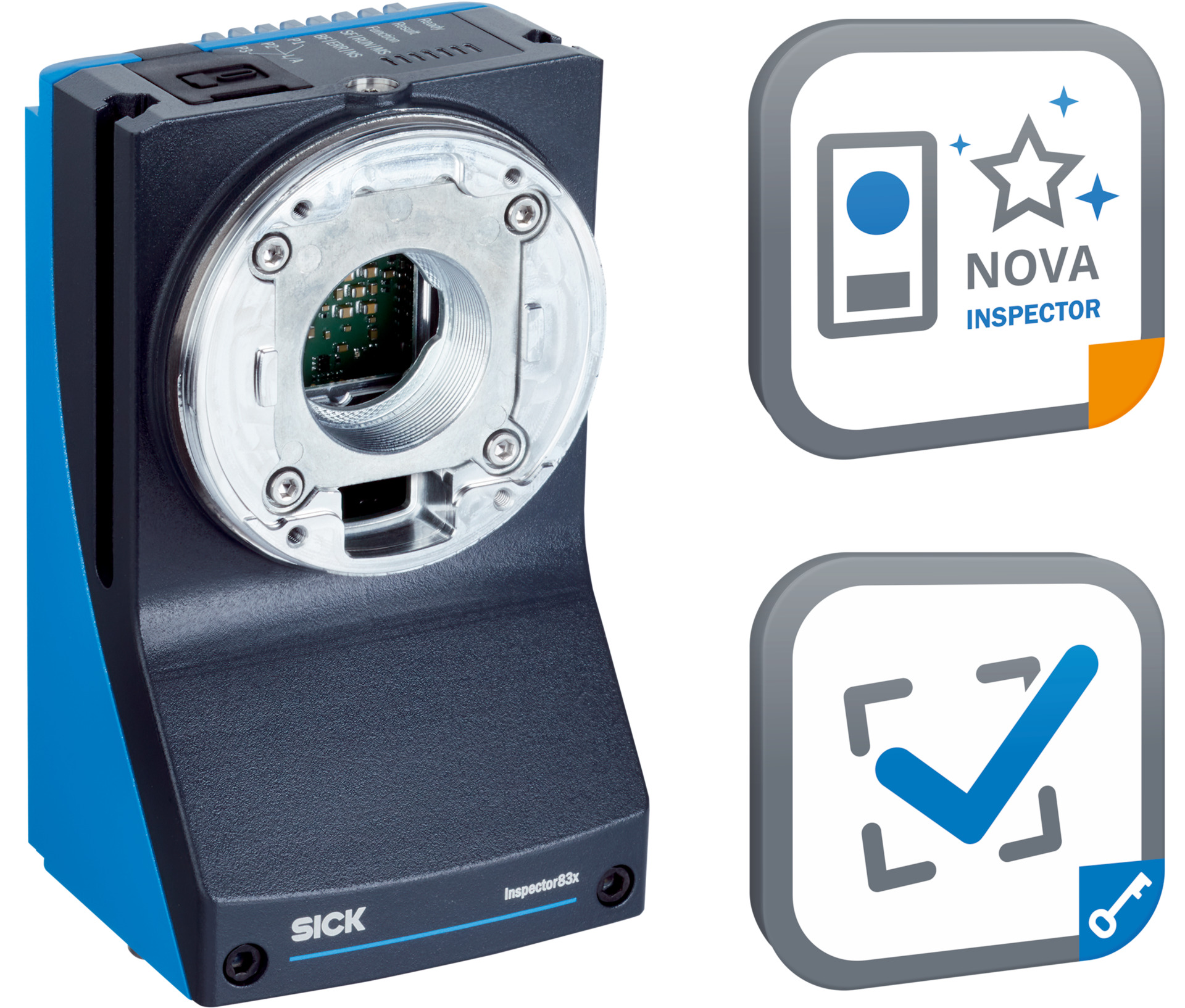

2D Snapshot Sensor | 1.3 Mpixel Resolution | IP65 Rated | Global-Shutter Technology | by SICK
The 2D Snapshot Sensor is designed for high-precision quality inspection in industrial settings, featuring a 1.3 Mpixel resolution and robust IP65-rated aluminum housing. With programmable capabilities via SensorApp Nova Inspector and adjustable optical focus, it’s perfect for dimension measurement, 2D code identification, and pattern recognition tasks, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,232 px x 1,024 px (1.3 Mpixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Scan/frame rate: 30 Hz
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65 (IEC 60529)
- Housing material: Aluminum die cast
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), M12 4-pin female (fieldbus Ethernet)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- MTBF: 100,000 hours
- Dimensions (H x L x W): 55mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus
- Global-Shutter shutter technology
- Supports multiple communication protocols including Ethernet, PROFINET, and EtherNet/IP
- High resolution sensor: 1,232 px x 1,024 px (1.3 Mpixel)
- Robust aluminum die cast housing with IP65 rating
- Multiple connector types for power, I/O, external illumination, and Ethernet
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
- Supports SICK Nova Tool plug-in for custom tool development
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP65 rated housing reduces need for frequent replacements
- Energy-efficient 24 V DC operation minimizes power consumption
- Supports software upgrades to extend device lifecycle
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

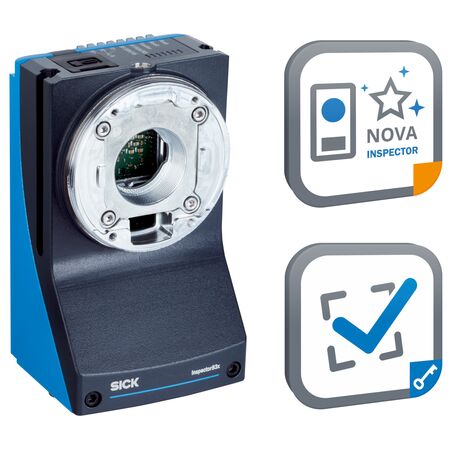

The SICK V2D8301P-1CCXXXAF0SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial quality inspection and measurement applications.
