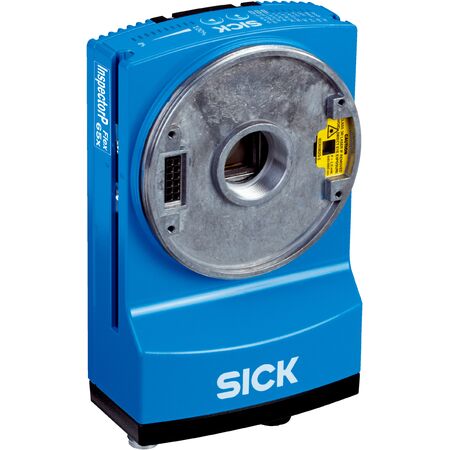

2D Snapshot Sensor | 1.7 Megapixel Resolution | 40 Hz Frame Rate | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for high-performance industrial applications, featuring a 1.7 Megapixel CMOS monochrome image sensor and a high scan/frame rate of 40 Hz. Ideal for detecting standard objects, measuring dimensions, and identifying 2D codes, this robust sensor with IP65 rating ensures reliable operation in challenging environments, making it perfect for quality inspection and automation tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1600 px x 1088 px (1.7 Megapixel)
- Scan/frame rate: 40 Hz
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 20 W ± 20%
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 60950-1)
- Housing material: Aluminum die cast
- Window material: Glass
- Connection types: 1 x M12 17-pin male connector, 1 x M8 4-pin female connector (USB not used), 2 x M12 8-pin sockets (Gigabit Ethernet)
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP, PROFINET, EtherNet/IP), CAN
- Configuration software: SICK AppStudio
- Data storage: microSD memory card and external FTP
- Inputs/outputs: 2 opto-decoupled inputs, 4 configurable inputs/outputs
- Output current: ≤ 100 mA
- Maximum encoder frequency: 1 kHz
- Control elements: 2 buttons
- Optical indicators: 21 LEDs
- Acoustic indicators: Beeper
- Laser class: 1 (IEC 60825-1:2014 compliant)
- Spectral range: Approx. 400 nm to 900 nm
- Dimensions (H x L x W): 46mm x 142mm x 90mm
- Weight: 0.635 kg
Key Features
- 2D snapshot technology with 1.7 Megapixel CMOS monochrome image sensor
- Programmable with SensorApp Nova Inspector
- Adjustable optical focus with C-mount lens (to be ordered separately)
- Global-Shutter shutter technology
- Laser alignment aid (Class 1 laser, compliant with IEC 60825-1:2014)
- Supports multiple illumination colors: White, Red, Blue, Infrared (illumination accessories ordered separately)
- High scan/frame rate of 40 Hz
- Multiple interface options including Serial (RS-232, RS-422), Ethernet (TCP/IP, PROFINET, EtherNet/IP), CAN
- Robust aluminum die cast housing with IP65 rating
- Data logging via microSD and external FTP
- Operator interface with web server and SICK AppStudio configuration software
- Multiple configurable inputs/outputs and optical/acoustic indicators
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial vision systems and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Energy-efficient operation with typical power consumption of 20 W
- Supports remote configuration and diagnostics reducing need for physical interventions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D642P-2MCXXA6 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection, object detection, and measurement applications.
