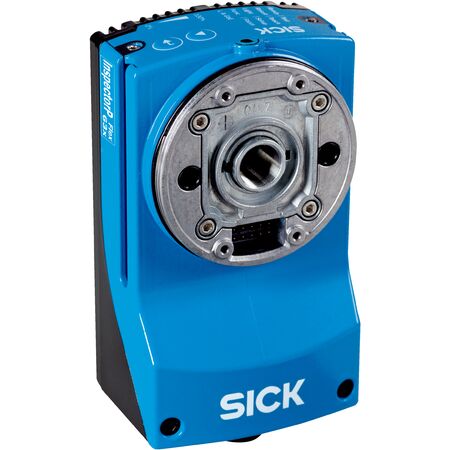

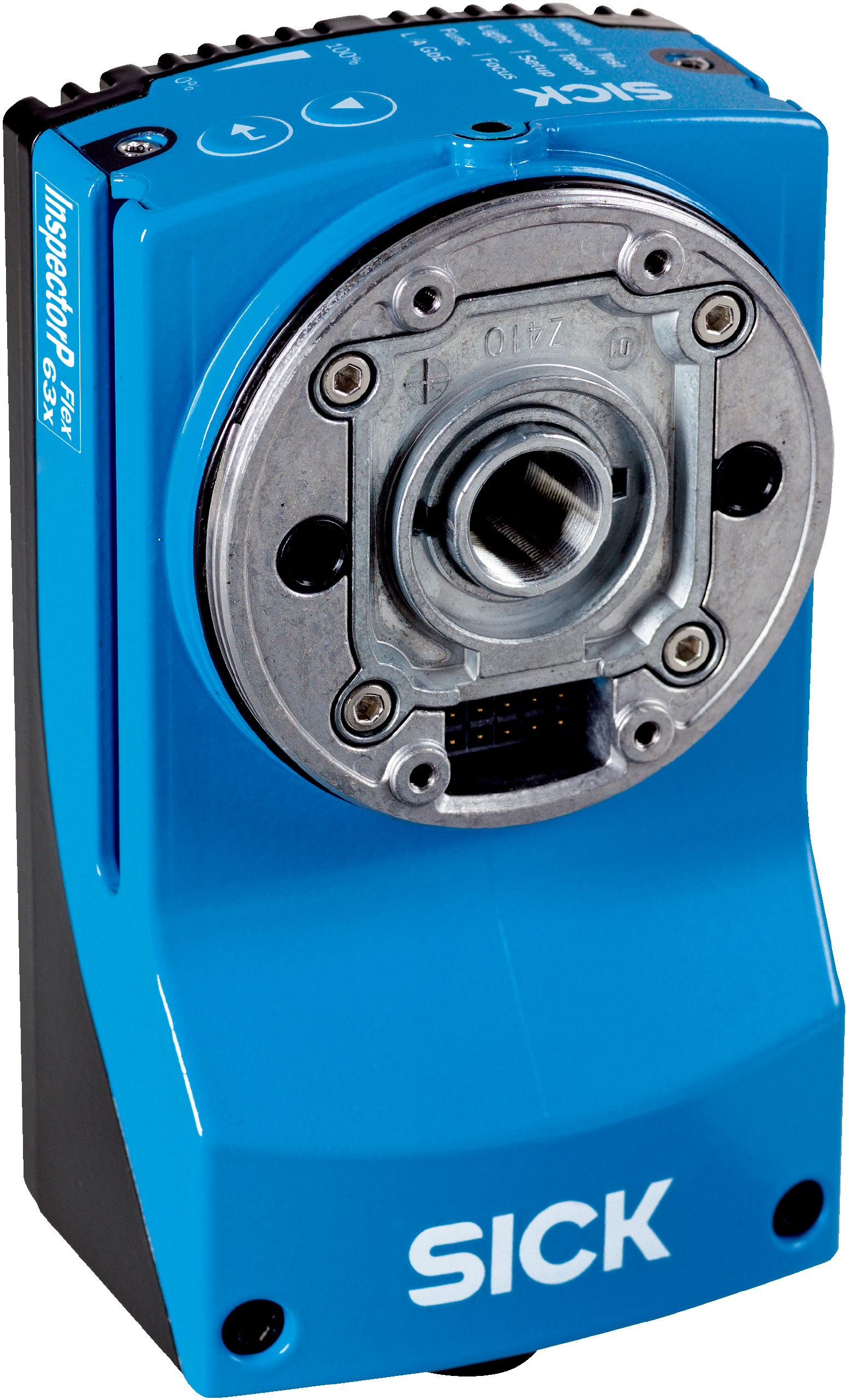

2D Snapshot Sensor | 1.9 Megapixel Resolution | Global-Shutter Technology | IP67 Rated | by SICK
The 2D Snapshot Sensor is designed for high-precision quality inspection in industrial settings, featuring a 1.9 Megapixel CMOS monochrome sensor and global-shutter technology for fast image capture. With a robust IP67 rated aluminum housing, it ensures durability in harsh environments, making it ideal for applications like dimension measurement, 2D code identification, and pattern recognition.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D Snapshot Sensor | 1.9 Megapixel Resolution | Global-Shutter Technology | IP67 Rated | by SICK
Brand: SICK
SKU: 1082301
Alternatively Known As: 2D Snapshot Sensor, Industrial Vision Sensor, Programmable Inspection Sensor, SICK Vision Sensor
Technical Specifications
- Sensor resolution: 1600 px x 1200 px (1.9 Megapixel)
- Scan/frame rate: 50 Hz
- Supply voltage: 12 V DC to 24 V DC ± 20%
- Power consumption: Typical 10 W ± 20%
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 60950-1)
- Housing material: Aluminum die cast
- Window material: PMMA
- Connection types: M12 17-pin male, M8 4-pin female (USB and external illumination), M12 8-pin socket (Gigabit Ethernet)
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP), PROFINET, CAN, EtherNet/IP
- Optical format: 1/1.8" S-mount lens (ordered separately)
- Illumination: To be ordered separately as accessories
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 46mm x 108mm x 63mm
- Weight: 0.43 kg
Key Features
- 2D snapshot technology with 1.9 Megapixel CMOS monochrome sensor
- Programmable with SensorApp Nova Inspector
- Global-Shutter shutter technology
- Adjustable optical focus
- Supports multiple illumination colors: White, Red, Blue, Infrared (ordered separately)
- Laser alignment aid (Class 1 laser, 630 nm to 680 nm)
- High scan/frame rate of 50 Hz
- Multiple interfaces including Ethernet, PROFINET, CAN, EtherNet/IP, and serial
- IP67 rated aluminum die cast housing with PMMA window
- Supports image and data logging via microSD and external FTP
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial vision systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP67 rated housing ensures long product life and reduces waste
- Energy-efficient operation with typical power consumption of 10 W
- Supports remote configuration and monitoring reducing the need for physical interventions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D632P-2MXSXB0 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and measurement applications.
