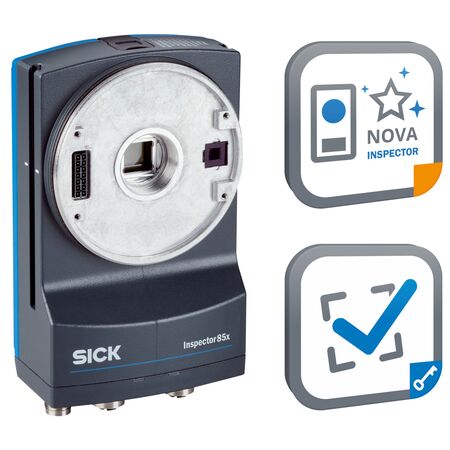

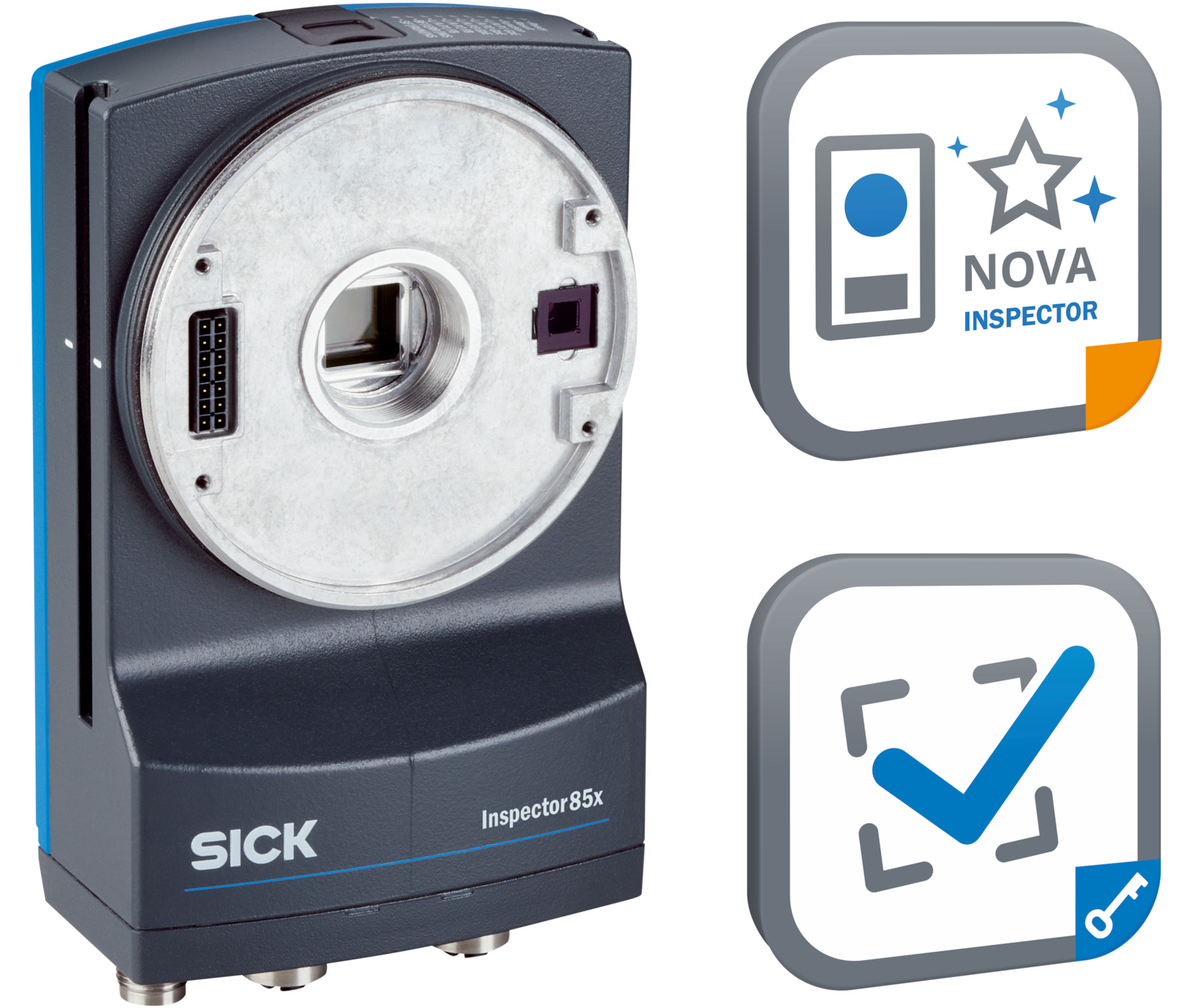

2D Snapshot Sensor | 12 Megapixel Resolution | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor offers a high-resolution 12 Megapixel CMOS monochrome sensor, perfect for quality inspection and measurement in industrial applications. With programmable features via SensorApp Nova Inspector and robust IP65-rated aluminum housing, this sensor is designed for durability and efficiency, making it ideal for manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 4096 px x 3008 px (12 Megapixel)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 11.22 mm x 8.22 mm
- Scan/frame rate: 40 Hz
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typically 24 W ± 20%
- Connection types: Multiple M12 connectors including 17-pin male, 5-pin female, 8-pin female, and 4-pin female
- Enclosure rating: IP65 compliant with IEC 60529 standards
- Housing material: Aluminum die cast
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: Up to 5000 m
- EMC compliance: IEC 61000-6-2 and IEC 61000-6-4
- Vibration and shock resistance: EN 60068-2-6, EN 60068-2-64, EN 60068-2-27
- Optical focus: Adjustable manually
- Laser class: Class 1 compliant with IEC 60825-1:2014
- Dimensions (H x L x W): 46mm x 143.3mm x 90mm
- Weight: 0.64 kg
Key Features
- 2D snapshot technology with 12 Megapixel CMOS monochrome sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus with C-mount lens
- Global-Shutter shutter technology
- LED feedback spot and red laser alignment aid
- Supports multiple communication protocols including Ethernet, PROFINET, and EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- High MTBF of 100,000 hours
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8512P-1MCXXXAF0SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial quality inspection and measurement applications.
