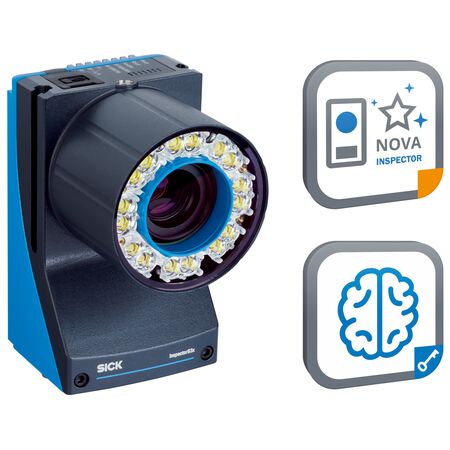

2D Snapshot Sensor | 1232 x 1024 Resolution | Global-Shutter CMOS | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for industrial automation, featuring a high resolution of 1232 x 1024 pixels and global-shutter CMOS technology. Ideal for applications like optical character recognition and 2D code identification, this sensor offers integrated white LED illumination and multiple Ethernet interfaces for seamless integration into your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1232 px x 1024 px (1.3 Mpixel)
- Pixel size: 5.48 µm x 5.48 µm
- Sensor size: 6.75 mm x 5.61 mm
- Scan/frame rate: 60 Hz
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), 2x M12 4-pin female (fieldbus Ethernet)
- Illumination color: White LED, 6500 K ± 1000 K
- Lens: C-mount, 16 mm focal length, optical format 1/1.8"
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- MTBF: 100,000 hours
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with programmable and configurable options
- Integrated white LED illumination with adjustable manual focus
- Global-Shutter CMOS monochrome image sensor
- Supports SICK Nova Inspector SensorApp and SICK AppSpace for tool customization
- Multiple Ethernet interfaces including PROFINET and EtherNet/IP™
- High vibration and shock resistance compliant with EN 60068 standards
- IP65 rated aluminum die-cast housing for robust industrial use
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with industrial systems.
Applications
- Industrial automation for detecting standard objects
- Measuring dimension, contour, and volume
- Counting and number measurement
- 2D code identification
- Optical character recognition (OCR)
- Pattern identification and classification
- Sorting and 2D position determination
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable IP65 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8301P-1MCKDXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and inspection applications.
