2D Snapshot Sensor | 1280px x 960px CMOS | Global-Shutter Technology | IP54 Rated | by SICK
The 2D Snapshot Sensor is designed for quality inspection and industrial automation, featuring a 1280px x 960px CMOS monochrome sensor and global-shutter technology. With integrated infrared LED illumination and multiple communication interfaces, it excels in detecting objects, measuring dimensions, and identifying 2D codes. Ideal for professionals seeking reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- 2D snapshot technology with 1,280 px x 960 px CMOS monochrome sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated infrared LED illumination (850 nm) with adjustable optical focus
- Global-Shutter shutter technology
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, and RS-232
- IP54 rated zinc diecast housing with PMMA window
- Low power consumption (typ. 3.5 W)
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
- 9 LEDs for status, alignment, and feedback indication
- Operating temperature range 0 °C to +40 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with existing systems.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns
- Classifying and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable zinc diecast housing extends product lifespan
- Compliance with China-RoHS supports reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

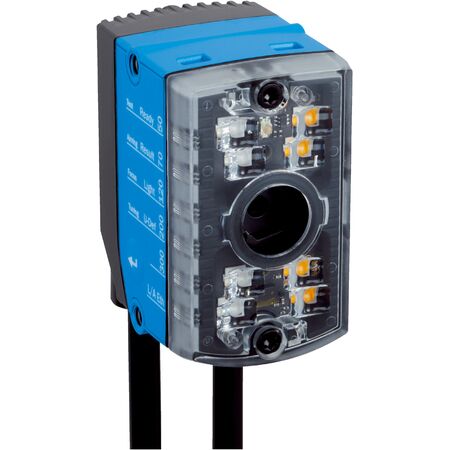

The SICK V2D611P-MMICI4 is available for immediate purchase, ideal for industrial automation and quality inspection applications.
