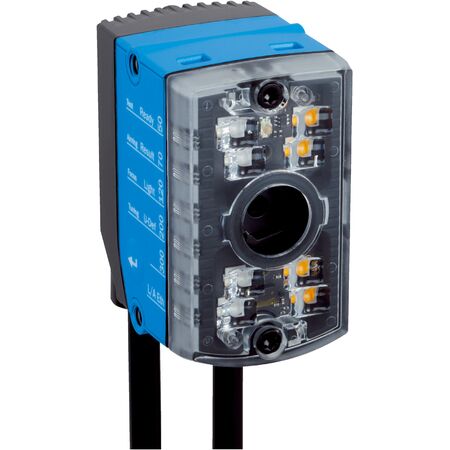

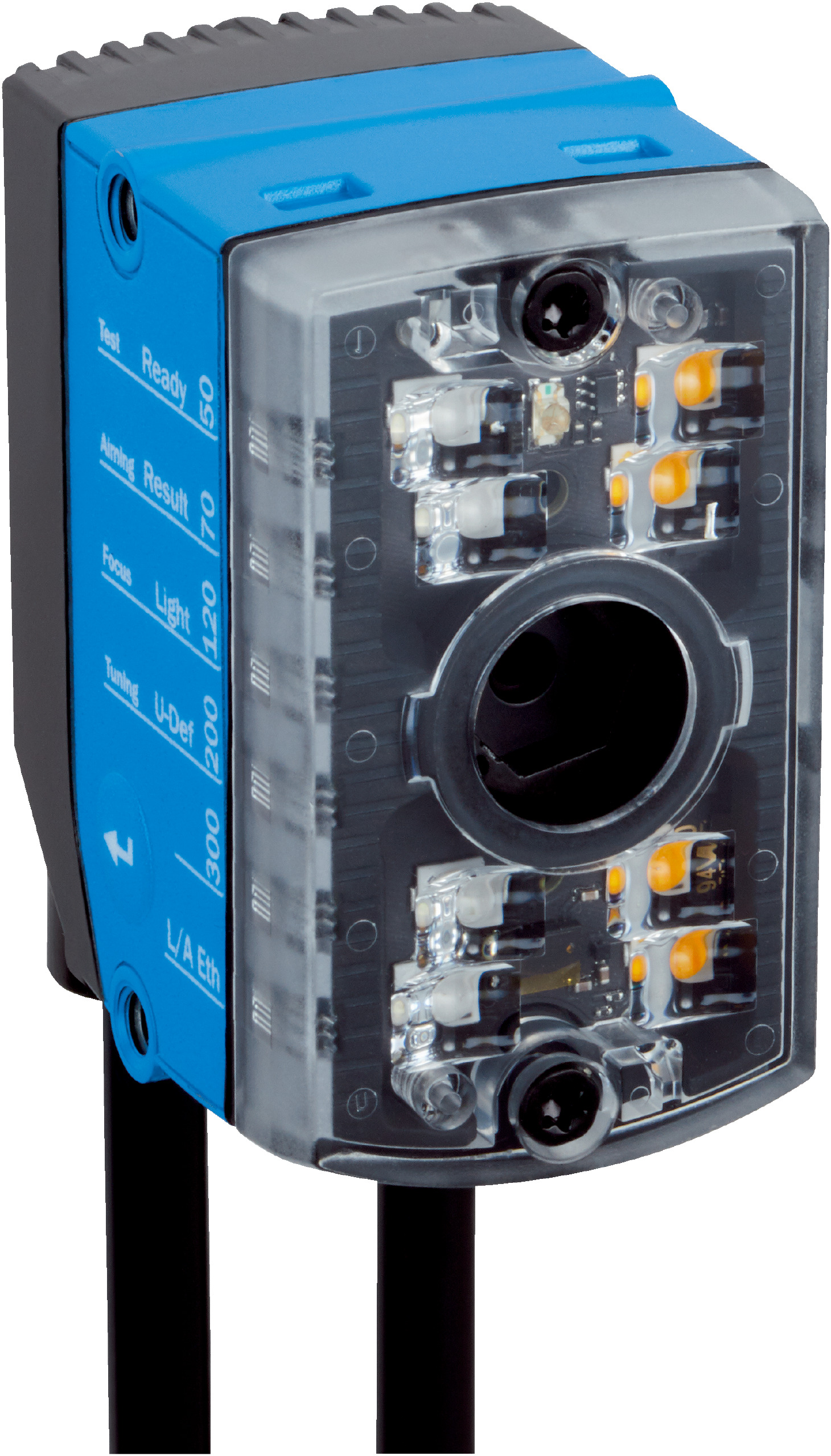

2D Snapshot Sensor | 1,280 px x 960 px Resolution | IP54 Rated | Global-Shutter CMOS | by SICK
The 2D Snapshot Sensor is designed for precision quality inspection in industrial applications, featuring a high resolution of 1,280 px x 960 px and a scan rate of 40 Hz. With integrated amber and blue LED illumination, it ensures optimal performance in detecting and measuring objects, making it ideal for automation and inspection tasks. Its robust IP54 rated zinc diecast housing guarantees durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 960 px (1.2 Mpixel)
- Scan/frame rate: 40 Hz
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typically 3.5 W
- Enclosure rating: IP54 (EN 60529)
- Protection class: III
- Housing material: Zinc diecast
- Window material: PMMA
- Working range: 50 mm to 300 mm with internal illumination, extendable with external illumination
- Illumination colors: Amber LED (617 nm ± 50 nm), Blue LED (470 nm ± 15 nm)
- Feedback spot: Green LED (525 nm ± 15 nm)
- Alignment aid: Red LED (630 nm ± 15 nm)
- Laser class: Class 1 (IEC 60825-1:2014)
- LED class: Risk group 1 (IEC 62471)
- Connection types: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP, RS-232 serial
- Inputs/outputs: 2 x input, 3 x configurable input/output, 1 x output
- Maximum encoder frequency: 300 Hz
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- MTBF: 75,000 hours
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- 2D snapshot technology with programmable and configurable options
- Integrated amber and blue LED illumination with adjustable optical focus
- Global-Shutter CMOS monochrome image sensor with 1,280 px x 960 px resolution
- Supports multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, and RS-232
- IP54 rated zinc diecast housing with PMMA window
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
- Web server and GUI-based configuration software
- 9 LEDs for status, alignment aids, and feedback spot
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D611P-MMSCI4 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
