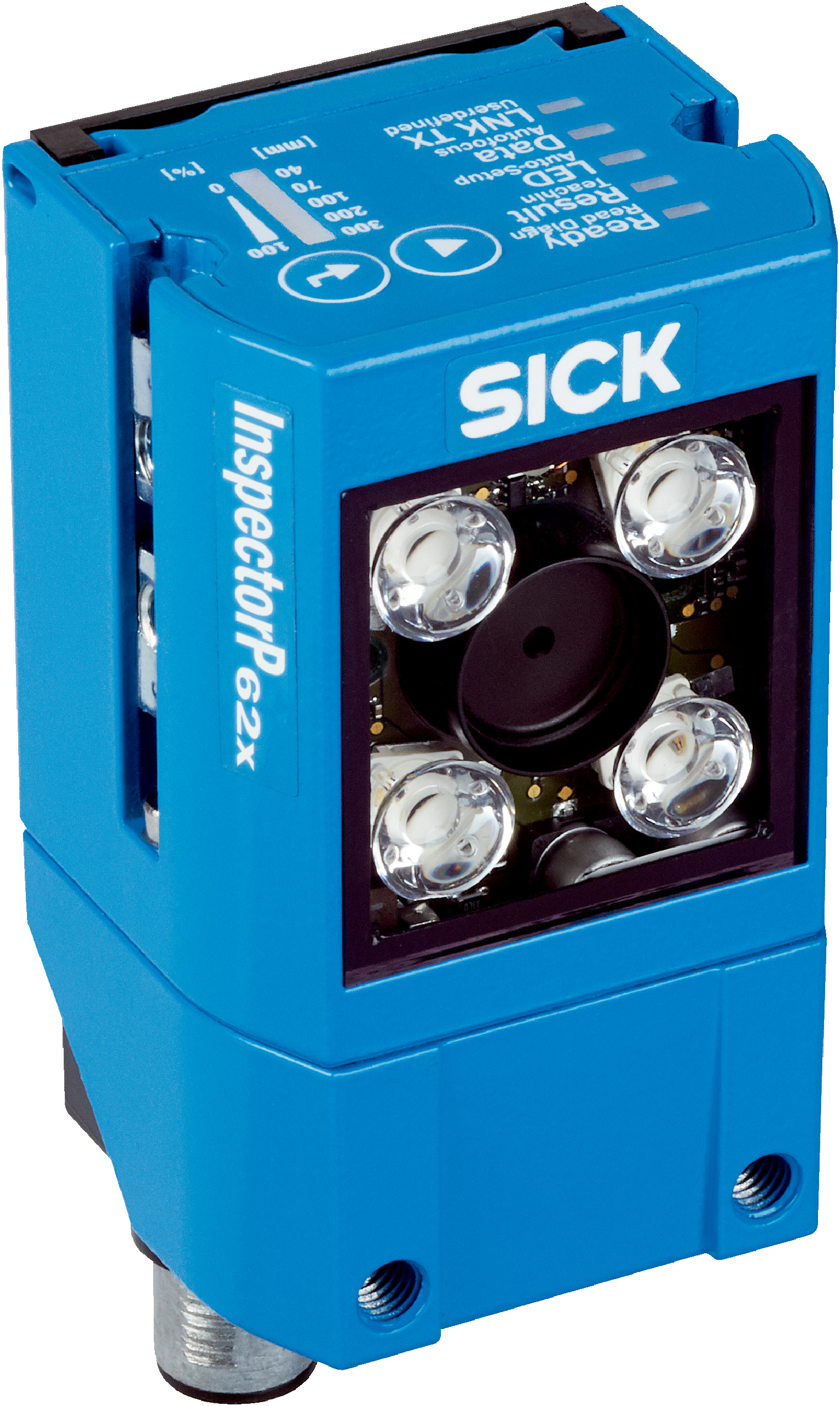

2D Snapshot Sensor | 1280 x 1024 Resolution | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for industrial automation and quality inspection, featuring a high-resolution 1280 x 1024 CMOS monochrome image sensor and integrated red and blue LED illumination. With a working range of 70 mm to 1,500 mm and multiple interface options, it’s perfect for detecting standard objects, measuring dimensions, and optical character recognition (OCR). Built for durability with an IP65 rated aluminum housing, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Image sensor: CMOS monochrome with global shutter
- Sensor resolution: 1280 px x 1024 px (1.3 Mpixel)
- Frame rate: 50 Hz
- Working range: 70 mm to 1,500 mm
- Illumination: Integrated red (617 nm ±15 nm) and blue (470 nm ±15 nm) LEDs
- Feedback spot: Green LED (525 nm ±15 nm)
- Laser alignment aid: Red laser (630 nm to 680 nm), Class 1
- Connection types: 1 x M12 17-pin male, 1 x M12 4-pin female Ethernet
- Supply voltage: 12 V DC to 24 V DC ±10%
- Power consumption: Typical 4 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Window material: PMMA
- MTBF: 75,000 hours
- Interfaces: Ethernet (TCP/IP, PROFINET, EtherNet/IP), Serial (RS-232, RS-422), CAN, EtherCAT, PROFIBUS DP
- Operator interfaces: Web server, Web GUI, SICK AppStudio
- Inputs/outputs: 2 opto-decoupled inputs, 4 configurable inputs/outputs
- Output current: ≤ 100 mA
- Maximum encoder frequency: 300 Hz
- Control elements: 2 buttons
- Optical indicators: 16 LEDs
- Acoustic indicators: Beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 35.6mm x 71mm x 43mm
- Weight: 0.17 kg
Key Features
- 2D snapshot technology with programmable and configurable options
- Integrated red and blue LED illumination with green feedback spot
- Adjustable electric optical focus
- Global-Shutter CMOS monochrome image sensor
- Working range from 70 mm to 1,500 mm
- Multiple interface options including Ethernet, PROFINET, EtherCAT, CAN, and serial
- IP65 rated aluminum die cast housing with PMMA window
- High sensor resolution of 1280 px x 1024 px (1.3 Mpixel) and 50 Hz frame rate
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
- Comprehensive operator interfaces with web server and configuration software
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with industrial systems.
Applications
- Industrial automation for quality inspection
- Detecting standard objects
- Measuring dimension, contour, and volume
- 2D code identification
- Optical character recognition (OCR)
- Pattern identification and classification
- Sorting and 2D position determination
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (typ. 4 W)
- Durable IP65 rated housing reduces environmental impact by extending product lifespan
- Supports digital data logging reducing paper and physical storage needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

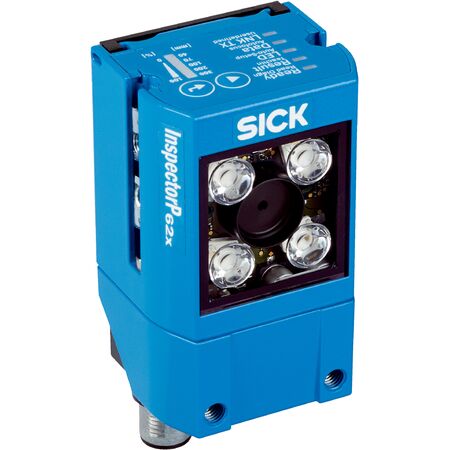

The SICK V2D621P-2MSFBB5 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
