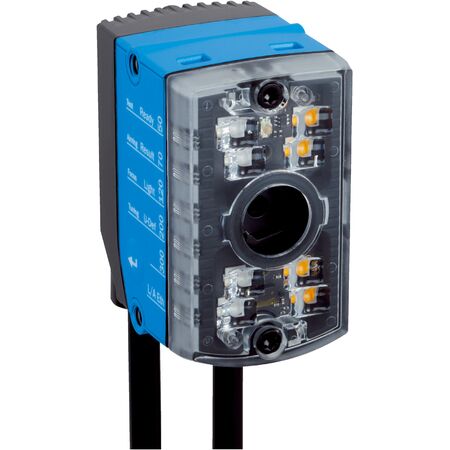

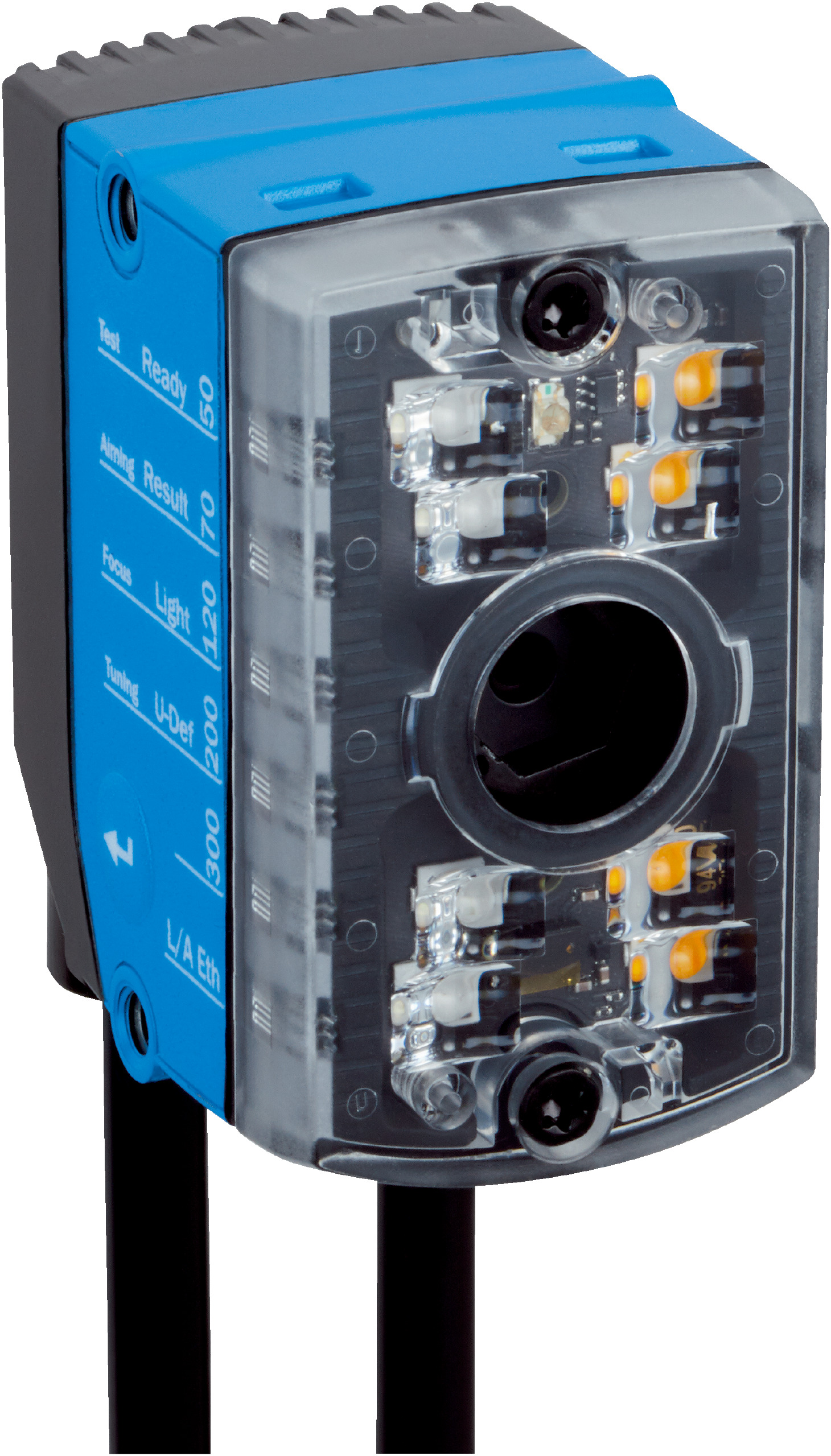

2D Snapshot Sensor | 1280 x 960 Resolution | 40 Hz Frame Rate | IP54 Rated | by SICK
The 2D Snapshot Sensor is designed for precision quality inspection in industrial applications, featuring a 1280 x 960 resolution and a 40 Hz scan rate. With integrated white LED illumination and multiple communication interfaces, it excels in detecting objects, measuring dimensions, and performing OCR tasks. Built for durability with an IP54 rating, this sensor is perfect for automation and quality control processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px (1.2 Mpixel)
- Scan/frame rate: 40 Hz
- Supply voltage: 12 V DC to 24 V DC ± 15%
- Power consumption: Typically 3.5 W
- Enclosure rating: IP54 (EN 60529)
- Protection class: III
- Connection types: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Data transmission rate: 10/100 MBit/s
- Inputs/outputs: 2 x input, 3 x configurable input/output, 1 x output
- Maximum encoder frequency: 300 Hz
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- MTBF: 75,000 hours
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.165 kg
Key Features
- 2D snapshot technology with CMOS color image sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (4000 K ± 1000 K)
- Adjustable manual optical focus
- Working range 50 mm to 300 mm with internal illumination, extendable with external illumination
- Global-Shutter shutter technology
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, and RS-232
- IP54 rated zinc diecast housing with PMMA window
- LED feedback spot and alignment aids
- Complies with laser class 1 and LED risk group 1 safety standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- 2D code identification
- OCR (Optical Character Recognition)
- Pattern identification
- Classifying and sorting
- 2D position determination
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D611P-CMWBI4 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
