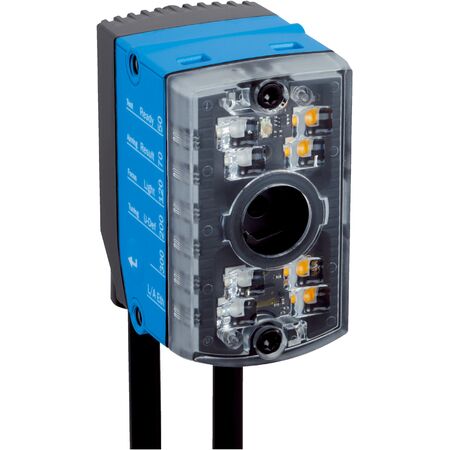

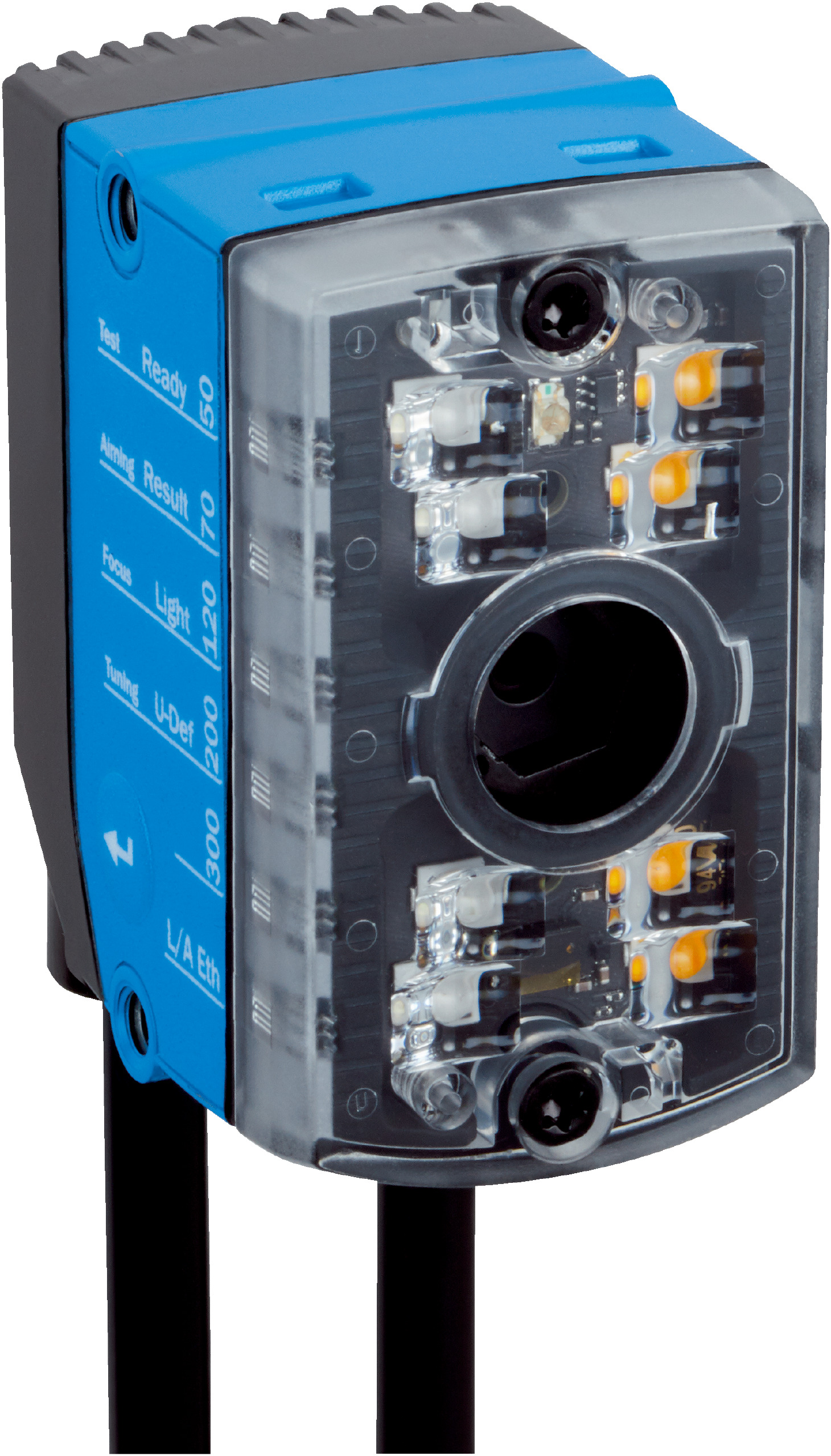

2D Snapshot Sensor | 1280 x 960 Resolution | 40 Hz Frame Rate | IP54 Rated | by SICK
The 2D Snapshot Sensor is designed for precision quality inspection in industrial applications, featuring a 1280 x 960 resolution and a 40 Hz scan rate. With integrated white LED illumination and adjustable optical focus, it excels in detecting dimensions, contours, and 2D codes. Built for durability with an IP54 rating, this sensor is perfect for automation and quality control tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px (1.2 Mpixel)
- Scan/frame rate: 40 Hz
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typically 3.5 W
- Enclosure rating: IP54 (EN 60529)
- Protection class: III
- Connection types: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Data transmission rate: 10/100 MBit/s
- Inputs/outputs: 2 x input, 3 x configurable input/output, 1 x output
- Maximum encoder frequency: 300 Hz
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- MTBF: 75,000 hours
- Optical focus: Adjustable manually
- Illumination color: White LED, 4000 K ± 1000 K
- Laser class: 1 (IEC 60825-1:2014)
- LED class: Risk group 1 (IEC 62471)
- Dimensions (H x L x W): 29.6mm x 50mm x 40.3mm
- Weight: 0.165 kg
Key Features
- 2D snapshot technology with programmable and configurable options
- Integrated white LED illumination (4000 K ± 1000 K)
- Adjustable manual optical focus
- Global-Shutter CMOS color image sensor
- Working range 50 mm to 300 mm with internal illumination, extendable with external illumination
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, and RS-232
- Web server operator interface and configurable via SensorApp and SICK AppStudio
- Robust zinc diecast housing with IP54 protection rating
- Laser class 1 and LED risk group 1 compliant
- 9 LEDs for status, alignment, and feedback indication
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- 2D position determination
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D611P-CMWCI4 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
