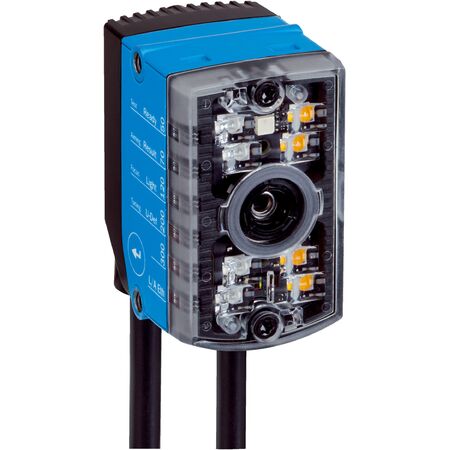

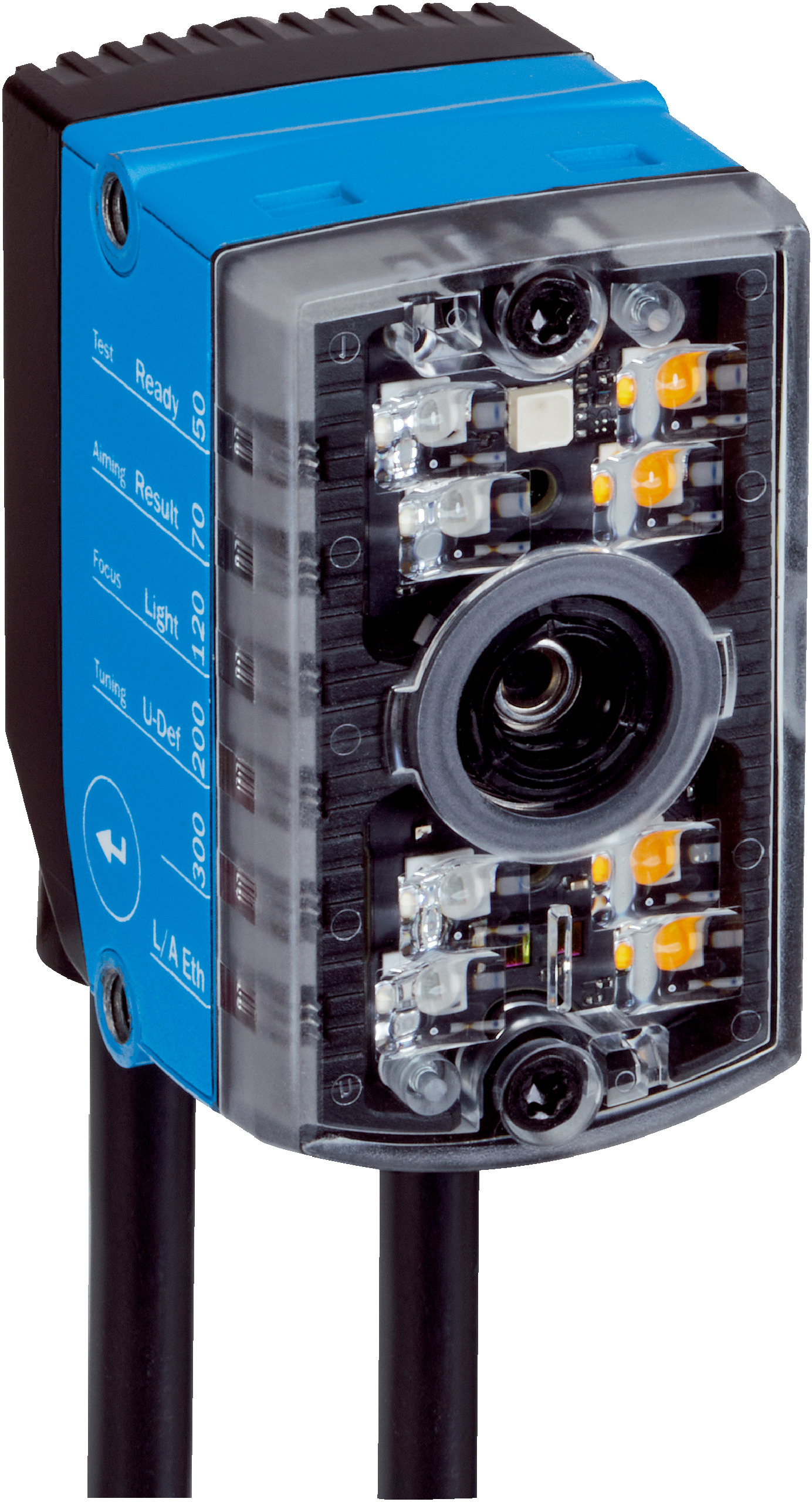

2D Snapshot Sensor | 1280 x 960 Resolution | 40 Hz Frame Rate | IP65 Rated | by SICK
The 2D Snapshot Sensor offers a high resolution of 1280 x 960 pixels and a fast scan rate of 40 Hz, making it ideal for quality inspection in industrial automation. With integrated amber and blue LED illumination, it ensures accurate detection of objects, dimensions, and 2D codes. Built with an IP65 rated zinc diecast housing, this sensor is designed for durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px (1.2 Mpixel)
- Scan/frame rate: 40 Hz
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typically 3.5 W
- Enclosure rating: IP65
- Protection class: III
- Housing material: Zinc diecast
- Window material: PMMA
- Connection types: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector
- Illumination colors: Amber (617 nm ± 50 nm), Blue (470 nm ± 15 nm)
- Feedback spot: Green LED (525 nm ± 15 nm)
- Alignment aid: Red LED (630 nm ± 15 nm)
- Laser class: Class 1 (IEC 60825-1:2014)
- LED class: Risk group 1 (IEC 62471)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- MTBF: 75,000 hours
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.166 kg
Key Features
- 2D snapshot technology with programmable and configurable options
- Integrated illumination with amber and blue LEDs
- Global-Shutter CMOS monochrome image sensor
- Teach auto focus with liquid lens
- Working range 50 mm to 300 mm, extendable with external illumination
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, and RS-232
- IP65 rated zinc diecast housing with PMMA window
- 9 LEDs for status, alignment, and feedback
- Quality Inspection License included with optional Intelligent Inspection Upgrade License
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and integration with existing systems.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns
- Classifying and sorting
- Determining 2D position
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces energy consumption
- Durable IP65 rated housing ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D611P-MLSCI5 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
