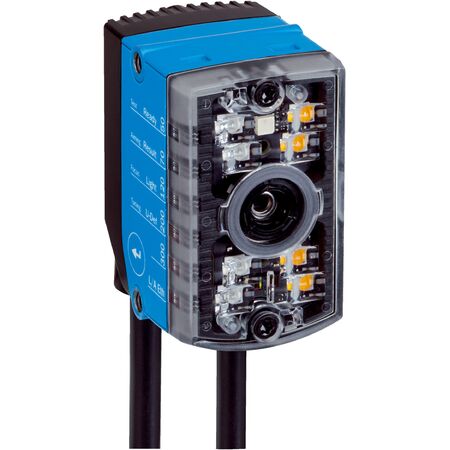

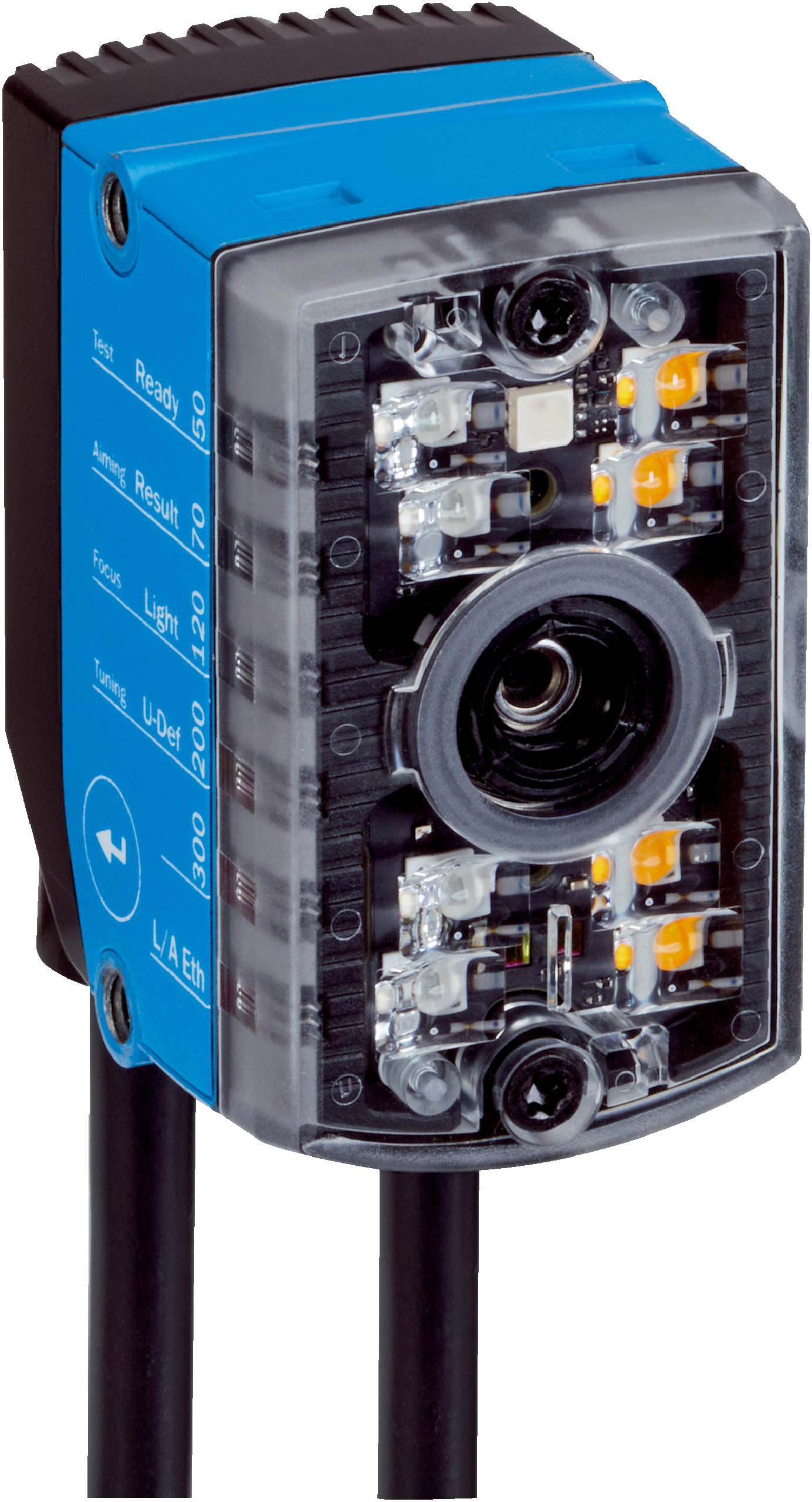

2D Snapshot Sensor | 1280x960 Resolution | 40Hz Frame Rate | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for precision quality inspection in industrial applications, featuring a 1280 px x 960 px resolution and a 40 Hz scan rate. With integrated amber and blue LED illumination, it ensures optimal performance in detecting objects, measuring dimensions, and identifying 2D codes. Built with a robust zinc diecast housing and IP65 rating, this sensor is perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 960 px (1.2 Mpixel)
- Scan/frame rate: 40 Hz
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typically 3.5 W
- Enclosure rating: IP65 (EN 60529)
- Protection class: III
- Housing material: Zinc diecast
- Window material: PMMA
- MTBF: 75,000 hours
- Connection types: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Communication: Ethernet (TCP/IP, PROFINET, EtherNet/IP), RS-232 serial
- Optical focus: Teach auto focus (liquid lens)
- Illumination colors: Amber (617 nm), Blue (470 nm), Feedback spot green (525 nm), Alignment aid red (630 nm)
- Laser class: 1 (IEC 60825-1:2014)
- LED class: Risk group 1 (IEC 62471)
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.166 kg
Key Features
- 2D snapshot technology with programmable and configurable options
- Integrated illumination with amber and blue LEDs
- Global-Shutter CMOS monochrome image sensor
- Teach auto focus with liquid lens
- Working range 50 mm to 300 mm, extendable with external illumination
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, and RS-232
- Web server operator interface and configuration via Web GUI and SICK AppManager
- Robust zinc diecast housing with IP65 rating
- 9 LEDs for status, alignment aids, and feedback
- Complies with laser class 1 and LED risk group 1 safety standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical wiring standards to ensure compliance and safety.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces energy consumption compared to external lighting
- Durable zinc diecast housing enhances product longevity and reduces waste
- Supports efficient quality inspection reducing material waste in production
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK V2D611P-MLSBI5 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
