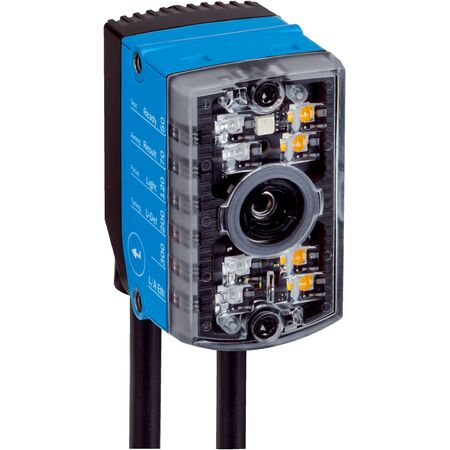

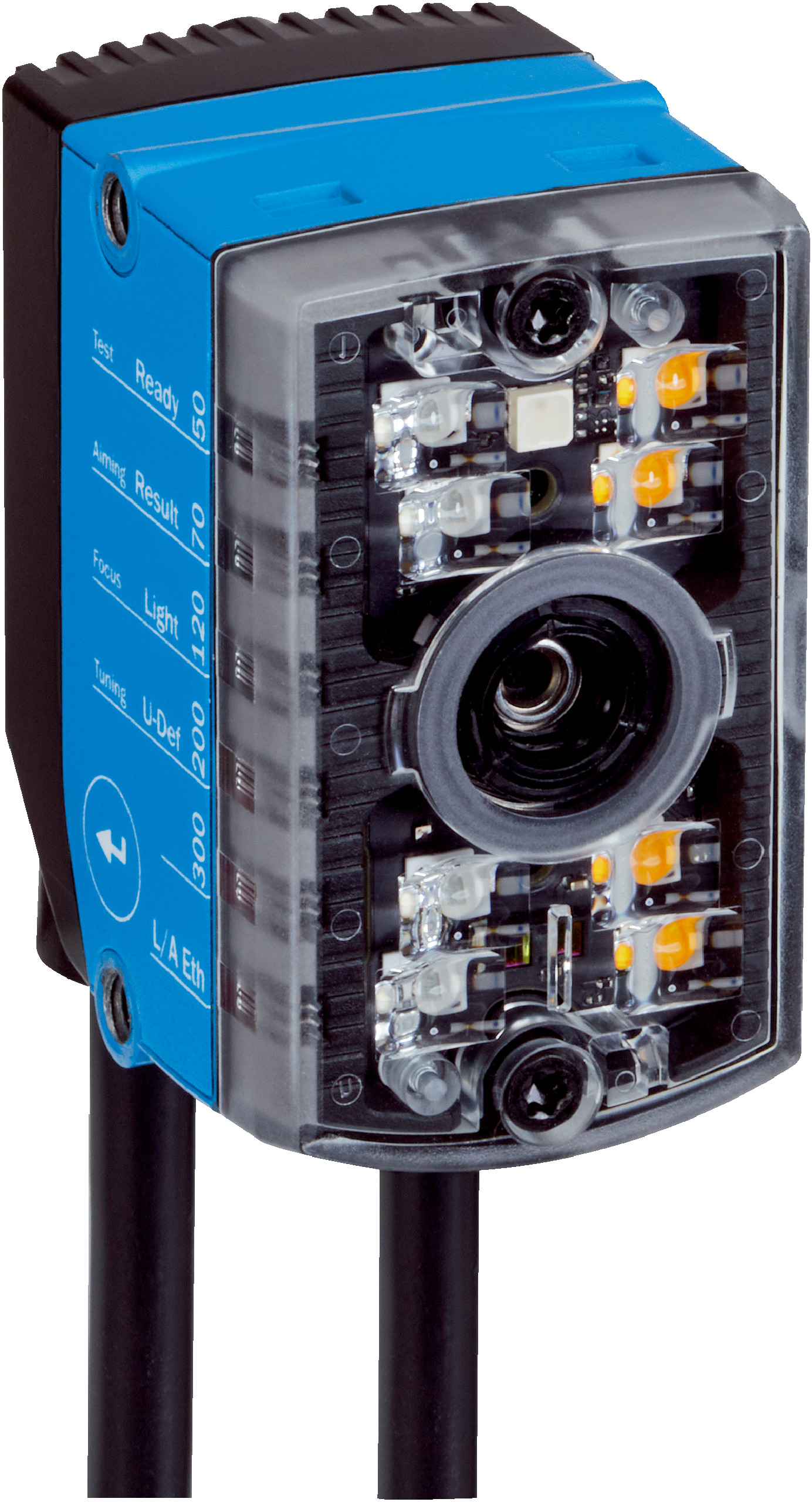

2D Snapshot Sensor | 1,280 x 960 Resolution | IP65 Rated | Infrared LED Illumination | by SICK
The 2D Snapshot Sensor is designed for precision quality inspection and measurement in industrial applications. With a high resolution of 1,280 px x 960 px and an IP65 enclosure rating, it ensures reliable performance in challenging environments. Featuring integrated infrared LED illumination and multiple communication interfaces, this sensor is perfect for detecting objects, measuring dimensions, and identifying 2D codes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1,280 px x 960 px (1.2 Mpixel)
- Scan/frame rate: 40 Hz
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typically 3.5 W
- Enclosure rating: IP65 (EN 60529)
- Protection class: III
- Housing material: Zinc diecast
- Window material: PMMA
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector
- Illumination color: Infrared LED 850 nm ±15 nm
- Feedback spot: Green LED 525 nm ±15 nm
- Alignment aid: Red LED 630 nm ±15 nm
- Laser class: Class 1 (IEC 60825-1:2014)
- LED class: Risk group 1 (IEC 62471)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- MTBF: 75,000 hours
- Dimensions (H x L x W): 30mm x 50mm x 40mm
- Weight: 0.166 kg
Key Features
- 2D snapshot technology with programmable and configurable options
- Integrated infrared LED illumination (850 nm) with visible green and red LED aids
- Global-Shutter CMOS monochrome image sensor with 1,280 px x 960 px resolution
- Working range from 50 mm to 300 mm with internal illumination, extendable with external lighting
- Supports multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, and RS-232
- Robust zinc diecast housing with IP65 rating
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
- Supports SICK algorithm API HALCON and SensorApp Nova Inspector
- Operating temperature range 0 °C to +40 °C
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper configuration and integration with existing systems.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable zinc diecast housing enhances product longevity and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D611P-MLICI5 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automated measurement applications.
