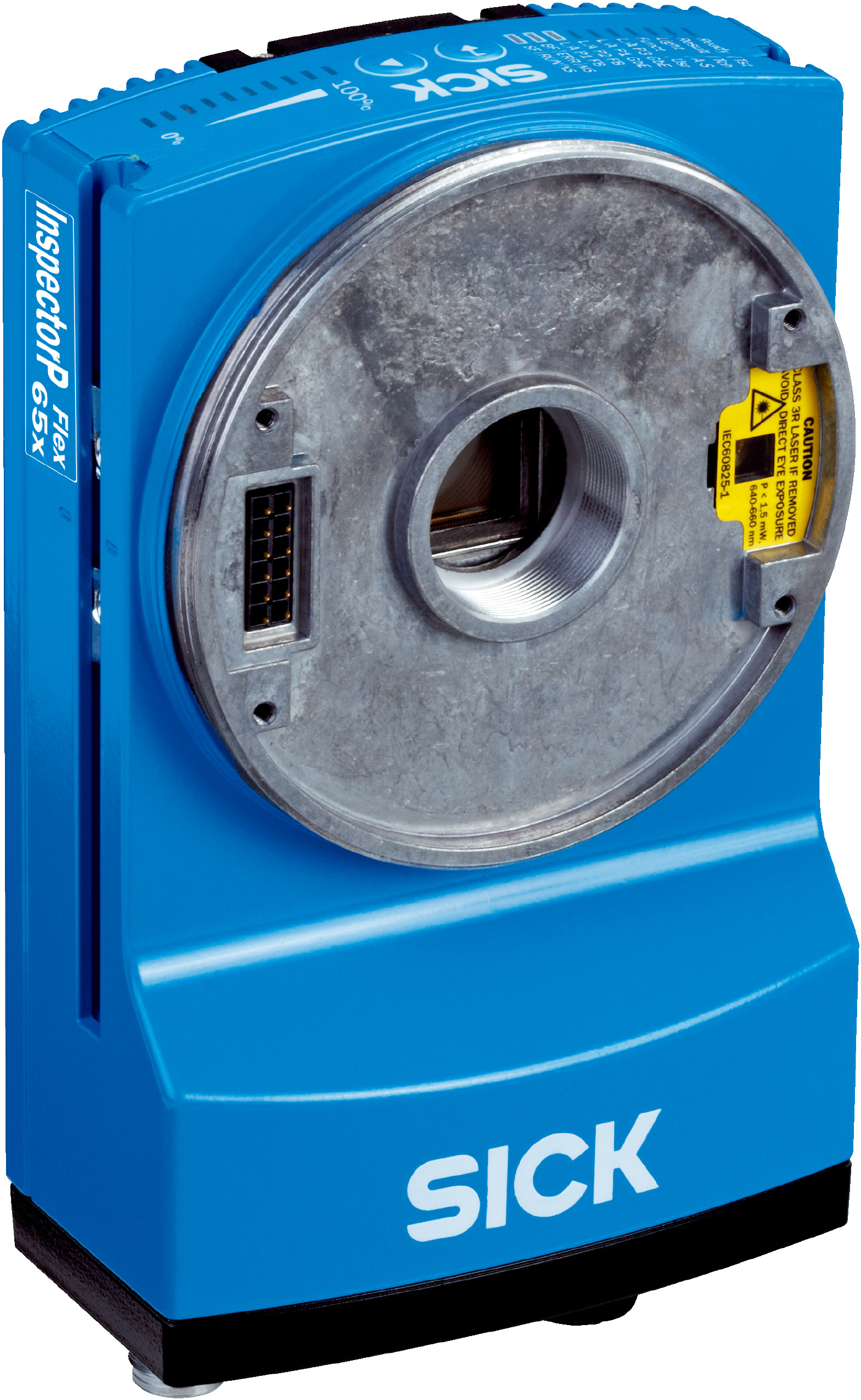

2D Snapshot Sensor | 4.2 Megapixel Resolution | 40 Hz Scan Rate | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for high-performance industrial applications, featuring a 4.2 Megapixel CMOS monochrome sensor and a fast 40 Hz scan rate. Ideal for detecting objects, measuring dimensions, and identifying 2D codes, this sensor is built for durability with an IP65 rated aluminum housing, ensuring reliable operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 2D Snapshot Sensor | 4.2 Megapixel Resolution | 40 Hz Scan Rate | IP65 Rated | by SICK
Brand: SICK
SKU: 1082304
Alternatively Known As: 2D Snapshot Sensor, Industrial Vision Sensor, SICK V2D Sensor, Programmable 2D Code Reader
Technical Specifications
- Sensor resolution: 2048 px x 2048 px (4.2 Megapixel)
- Scan/frame rate: 40 Hz
- Supply voltage: 24 V DC, ± 20%
- Power consumption: Typical 20 W, ± 20%
- Enclosure rating: IP65
- Protection class: III
- Housing material: Aluminum die cast
- Window material: Glass
- Connection types: 1 x M12 17-pin male, 1 x M8 4-pin female (USB not used), 2 x M12 8-pin socket (Gigabit Ethernet, one used)
- Interfaces: Serial (RS-232, RS-422), Ethernet (TCP/IP), PROFINET, CAN, EtherNet/IP
- Configuration software: SICK AppStudio
- Data storage: microSD card and external FTP
- Optical indicators: 21 LEDs
- Acoustic indicators: Beeper
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Dimensions (H x L x W): 46mm x 142mm x 90mm
- Weight: 0.635 kg
Key Features
- 2D snapshot technology with 4.2 Megapixel CMOS monochrome sensor
- Programmable with SensorApp Nova Inspector
- Adjustable optical focus with C-mount lens (to be ordered separately)
- Global-Shutter shutter technology
- Laser alignment aid (Class 1 laser, compliant with IEC 60825-1 Ed.3)
- Multiple illumination colors available as accessories: White, Red, Blue, Infrared
- High scan/frame rate of 40 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including Ethernet, PROFINET, CAN, EtherNet/IP, and serial
- Data logging via microSD and external FTP
- Configurable inputs/outputs and optical/acoustic indicators
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- Determining 2D position
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise quality inspection reducing waste and rework
- Supports energy-efficient operation with low power consumption (typ. 20 W)
- Durable IP65 rated housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

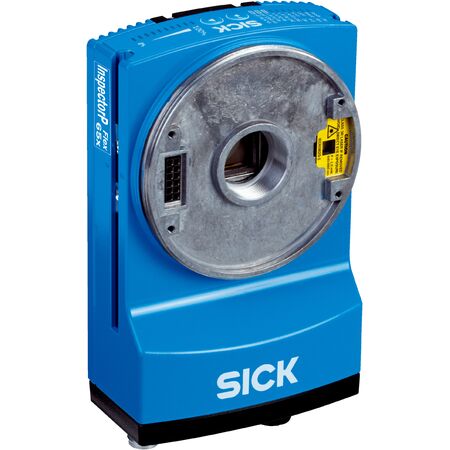

The SICK V2D654P-2MCXXA6 2D Snapshot Sensor is available for immediate purchase. Ideal for industrial quality inspection, object detection, and measurement applications.
