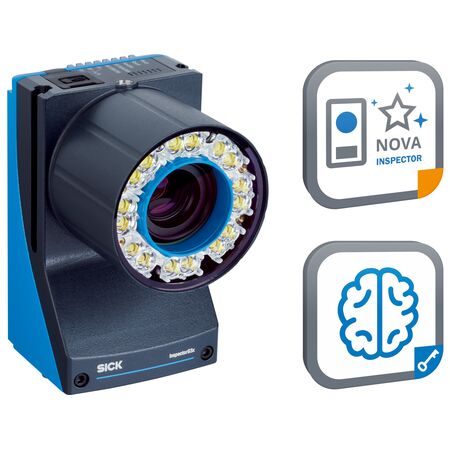

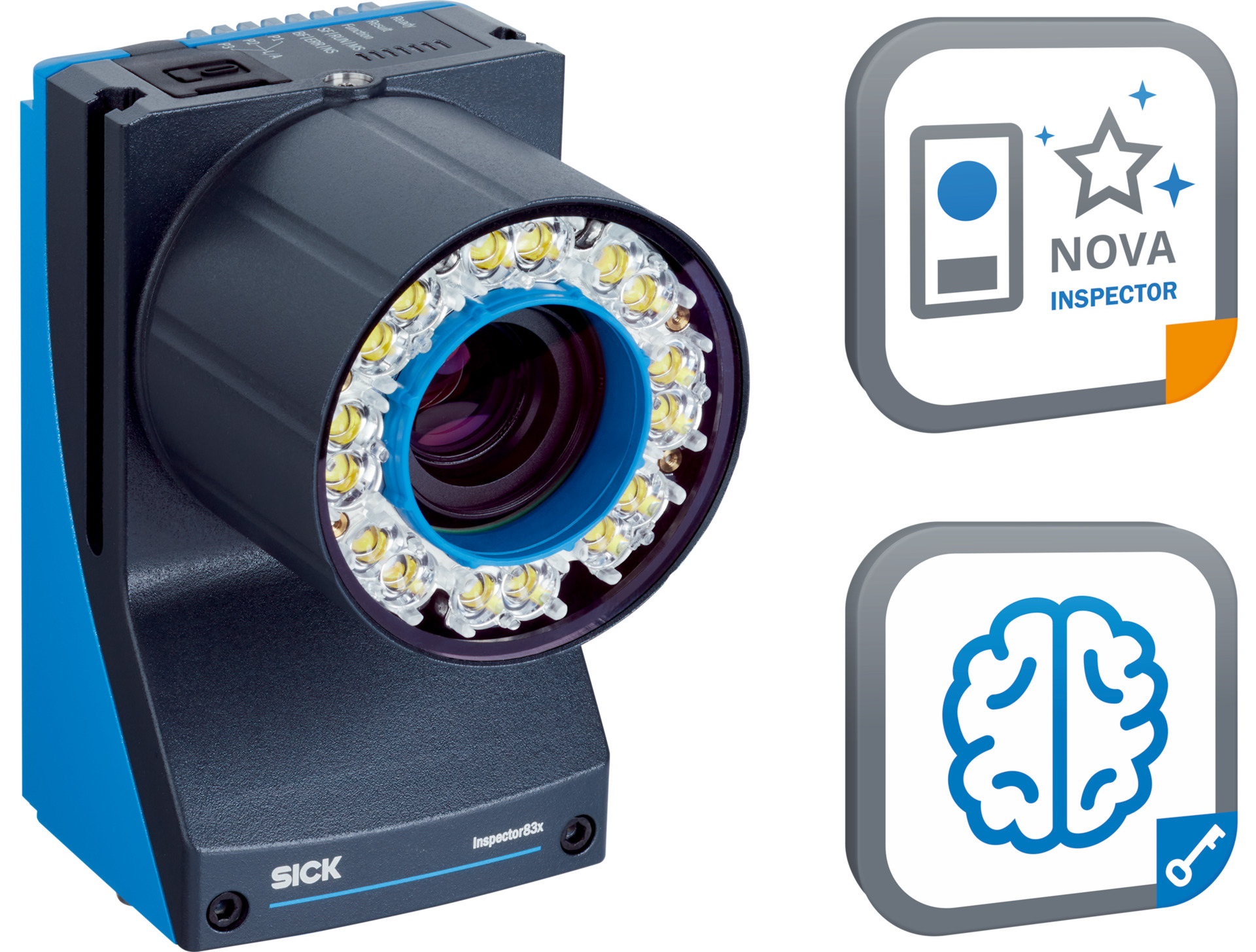

2D Snapshot Sensor | 5.1 Megapixel Resolution | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is designed for industrial automation, featuring a 5.1 Megapixel resolution and global-shutter technology for precise image capture. Ideal for quality control, object detection, and measurement, this sensor supports multiple communication protocols and comes with integrated white LED illumination for enhanced performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixel)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Scan/frame rate: 30 Hz
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Connection types: M12 17-pin male (Power, I/O), M8 4-pin female (external illumination), M12 8-pin female (Gigabit Ethernet), M12 4-pin female (fieldbus Ethernet)
- Illumination: Integrated white LED, 6500 K ± 1000 K
- Lens: C-mount, 16 mm focal length, optical format 1/1.8"
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- MTBF: 100,000 hours
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS monochrome sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination with adjustable optical focus
- Global-Shutter shutter technology for precise image capture
- Supports multiple communication protocols including Ethernet, PROFINET, and EtherNet/IP
- Robust aluminum die-cast housing with IP65 rating
- Includes Intelligent Inspection License with no time limit
- Expandable with SICK Nova Tool plug-in and customizable via SICK AppSpace and AppStudio
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and network protocols to ensure optimal performance and safety.
Applications
- Industrial automation for object detection and measurement
- Quality control with dimension, contour, and volume measurement
- 2D code reading and OCR identification
- Pattern recognition, classification, and sorting
- Position determination in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports remote configuration reducing need for physical interventions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK V2D8305P-1MCKDXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and inspection applications.
