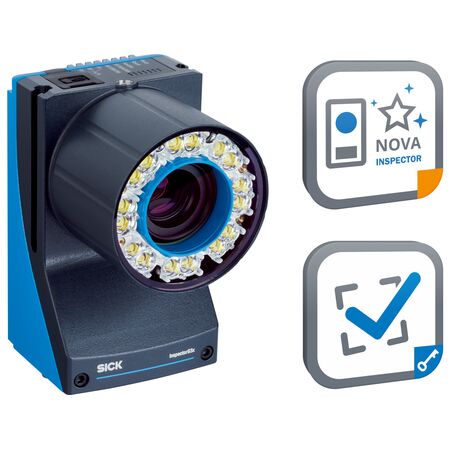

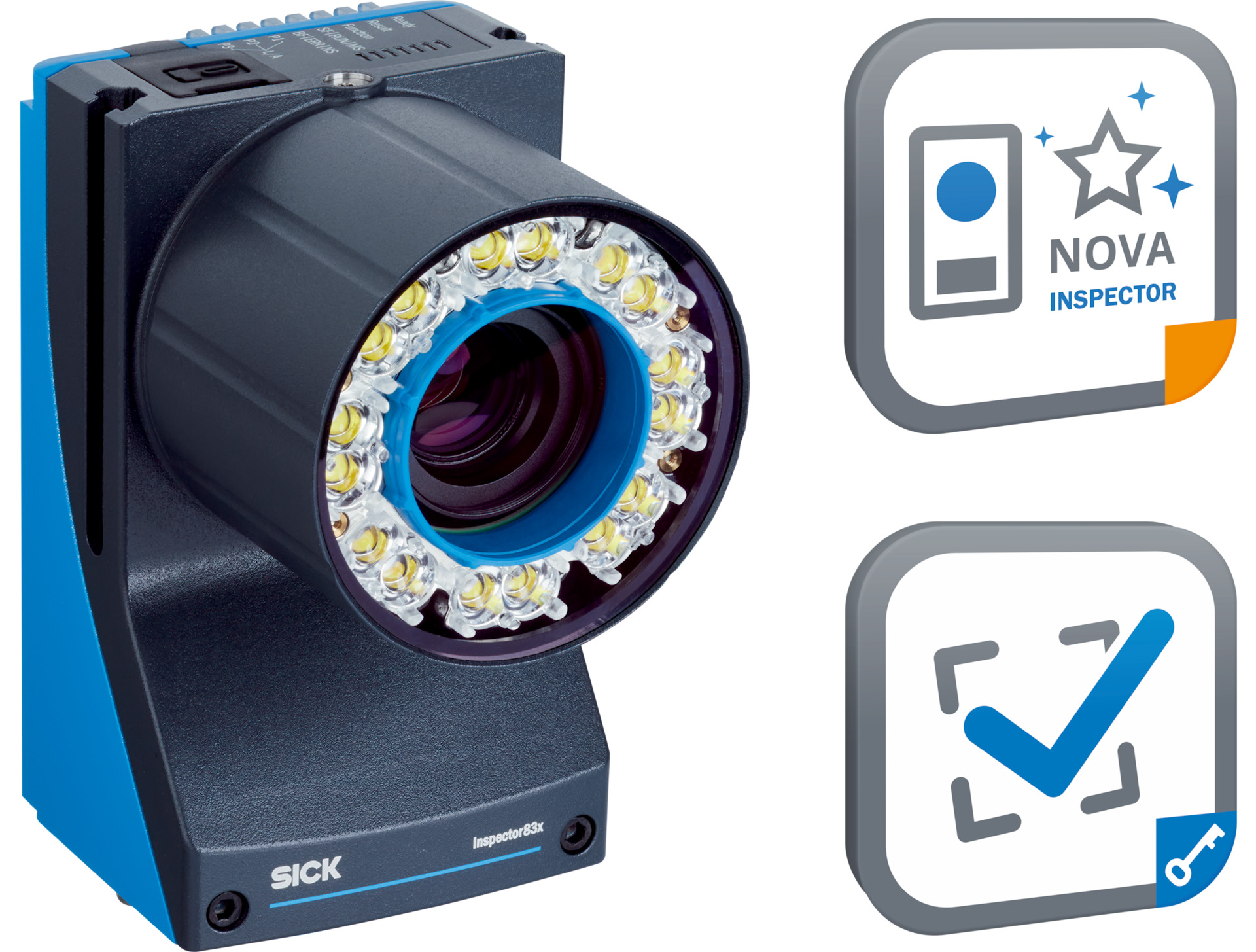

2D Snapshot Sensor | 5.1 Megapixel Resolution | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor is equipped with a 5.1 Megapixel CMOS monochrome sensor and global-shutter technology, making it perfect for quality inspection in manufacturing. With integrated white LED illumination and multiple communication interfaces, this sensor is designed for robust performance in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixel)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Shutter technology: Global-Shutter
- Working range: 200 mm to 2500 mm depending on lens
- Illumination: Integrated white LED, 6500 K ± 1000 K
- Power consumption: 21 W
- Supply voltage: 24 V DC ± 20%
- Enclosure rating: IP65
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female, M12 4-pin female connectors
- Communication: Ethernet TCP/IP, PROFINET, EtherNet/IP
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Weight: 545 g without lens and cables
- Dimensions (H x L x W): 60mm x 120mm x 100mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with 5.1 Megapixel CMOS monochrome sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K)
- Adjustable manual optical focus with C-mount lens
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP
- Robust IP65 aluminum die-cast housing
- High MTBF of 100,000 hours
- Supports external illumination and multiple I/O options
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial vision systems and electrical wiring standards to ensure proper setup and compliance with safety regulations.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Position determination in automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces need for external lighting, lowering energy consumption
- Durable aluminum housing extends product life and reduces waste
- High MTBF reduces frequency of replacements and associated environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK V2D8305P-1MCIBXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
