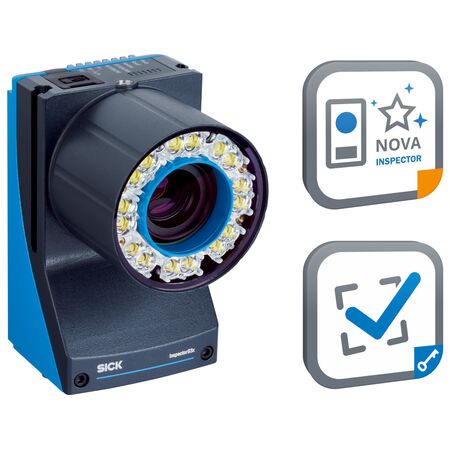

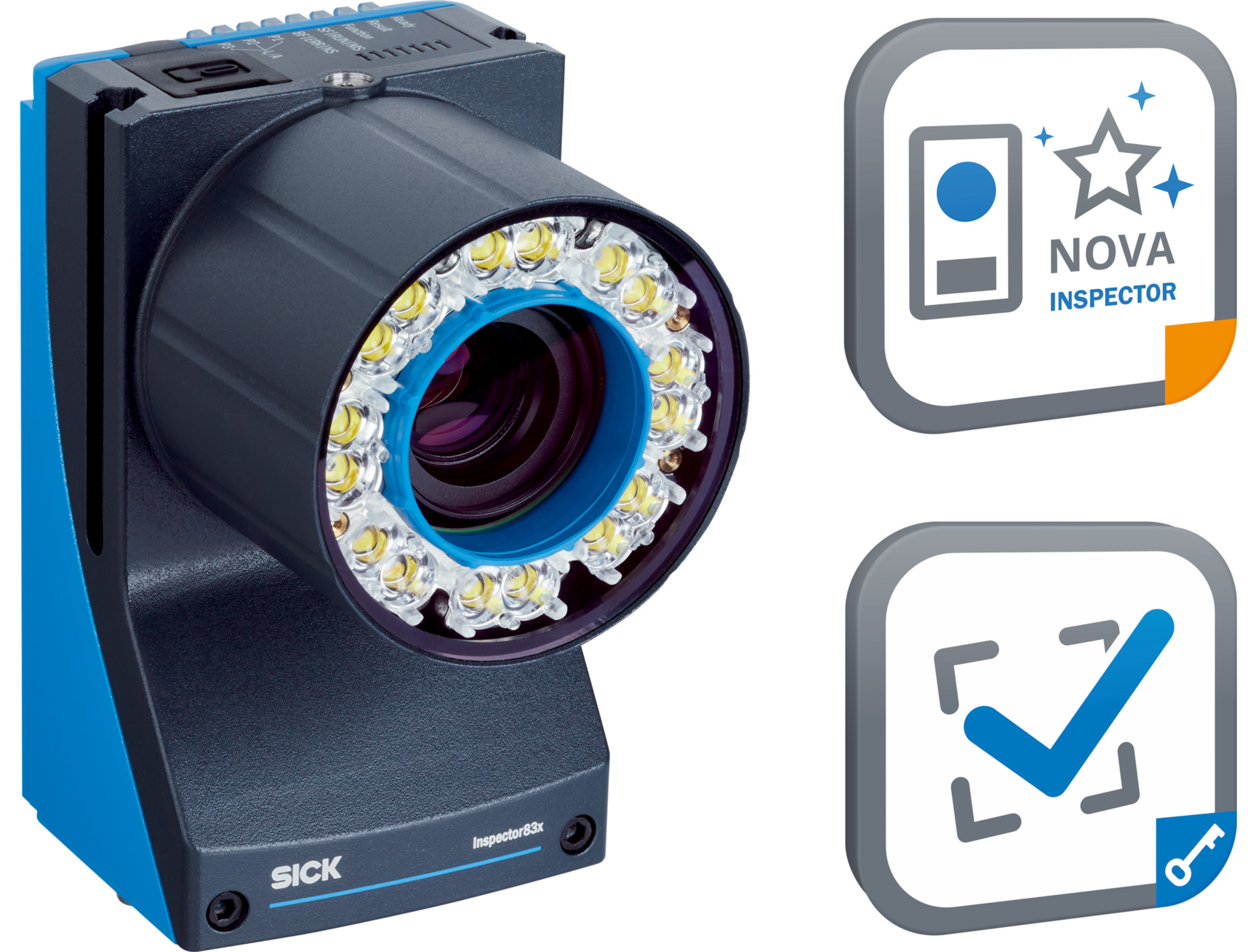

2D Snapshot Sensor | 5.1 Megapixel Resolution | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor offers a 5.1 Megapixel CMOS color sensor and global-shutter technology, making it perfect for quality inspection in manufacturing and industrial automation. With integrated white LED illumination and multiple interface options, this sensor is designed for precise image capture and reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixel)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Working range: 200 mm to 2500 mm depending on lens
- Illumination: Integrated white LED, 6500 K ± 1000 K
- Shutter technology: Global-Shutter
- Lens: C-mount, 12 mm focal length, optical format 1/1.8"
- Power supply: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Connection types: M12 and M8 connectors for power, I/O, Ethernet, and external illumination
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Vibration and shock resistance compliant with EN 60068 standards
- Interfaces: Ethernet TCP/IP, PROFINET, EtherNet/IP, web server for configuration
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- MTBF: 100,000 hours
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with 5.1 Megapixel CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination with adjustable optical focus
- Global-Shutter shutter technology for precise image capture
- Multiple interface options including Ethernet, PROFINET, and EtherNet/IP
- Robust aluminum die-cast housing with IP65 rating
- Supports customer-specific tool expansion via SICK Nova Tool plug-in
- License provided as device license without time limit
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and position determination in industrial automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8305P-1CCICXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation and quality inspection applications.
