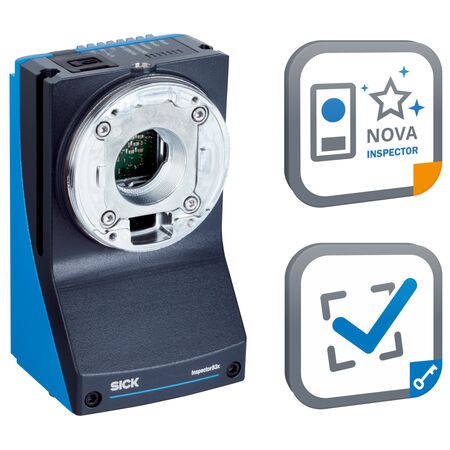

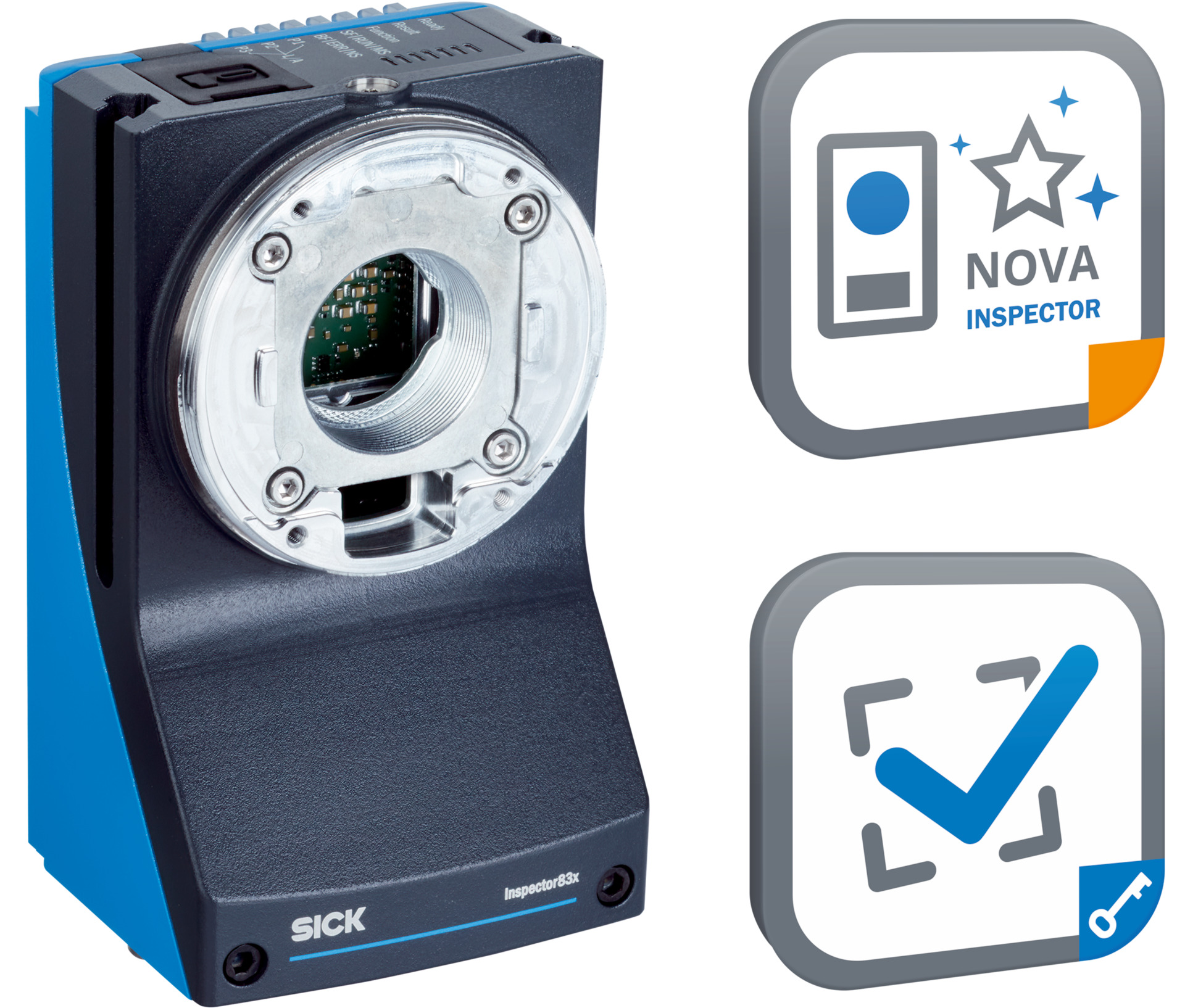

2D Snapshot Sensor | 5.1 Megapixel Resolution | IP65 Rated | Global-Shutter Technology | by SICK
The 2D Snapshot Sensor is designed for high-precision quality inspection in industrial settings, featuring a 5.1 Megapixel resolution and robust IP65-rated aluminum housing. With programmable capabilities via SensorApp Nova Inspector and adjustable optical focus, it’s perfect for applications like dimension measurement, 2D code identification, and pattern recognition, ensuring optimal performance and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixel)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Scan/frame rate: 30 Hz
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- Connection types: 1x M12 17-pin male (Power, I/O), 1x M8 4-pin female (external illumination), 1x M12 8-pin female (Gigabit Ethernet), 2x M12 4-pin female (fieldbus Ethernet)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Vibration resistance: EN 60068-2-6:2007, EN 60068-2-64:2019
- Shock resistance: EN 60068-2-27:2008
- MTBF: 100,000 hours
- Optical focus: Adjustable manually
- Illumination color and lens to be ordered separately
- Dimensions (H x L x W): 55mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS monochrome sensor
- Programmable and configurable via SensorApp Nova Inspector
- Adjustable manual optical focus
- Global-Shutter shutter technology
- Supports multiple communication protocols including Ethernet, PROFINET, and EtherNet/IP
- High sensor resolution of 2464 x 2048 pixels (5.1 Megapixel)
- Robust aluminum die cast housing with IP65 rating
- Multiple connector types for power, I/O, external illumination, and Ethernet
- Includes Quality Inspection License with optional Intelligent Inspection Upgrade License
- Supports SICK AppSpace and SICK AppStudio for tool development and customization
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and network protocols to ensure optimal performance and safety.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and classification
- Sorting and 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise quality control reducing waste and rework
- Supports energy-efficient operation with 24 V DC supply
- Durable IP65 housing extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8305P-1MCXXXAF0SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
