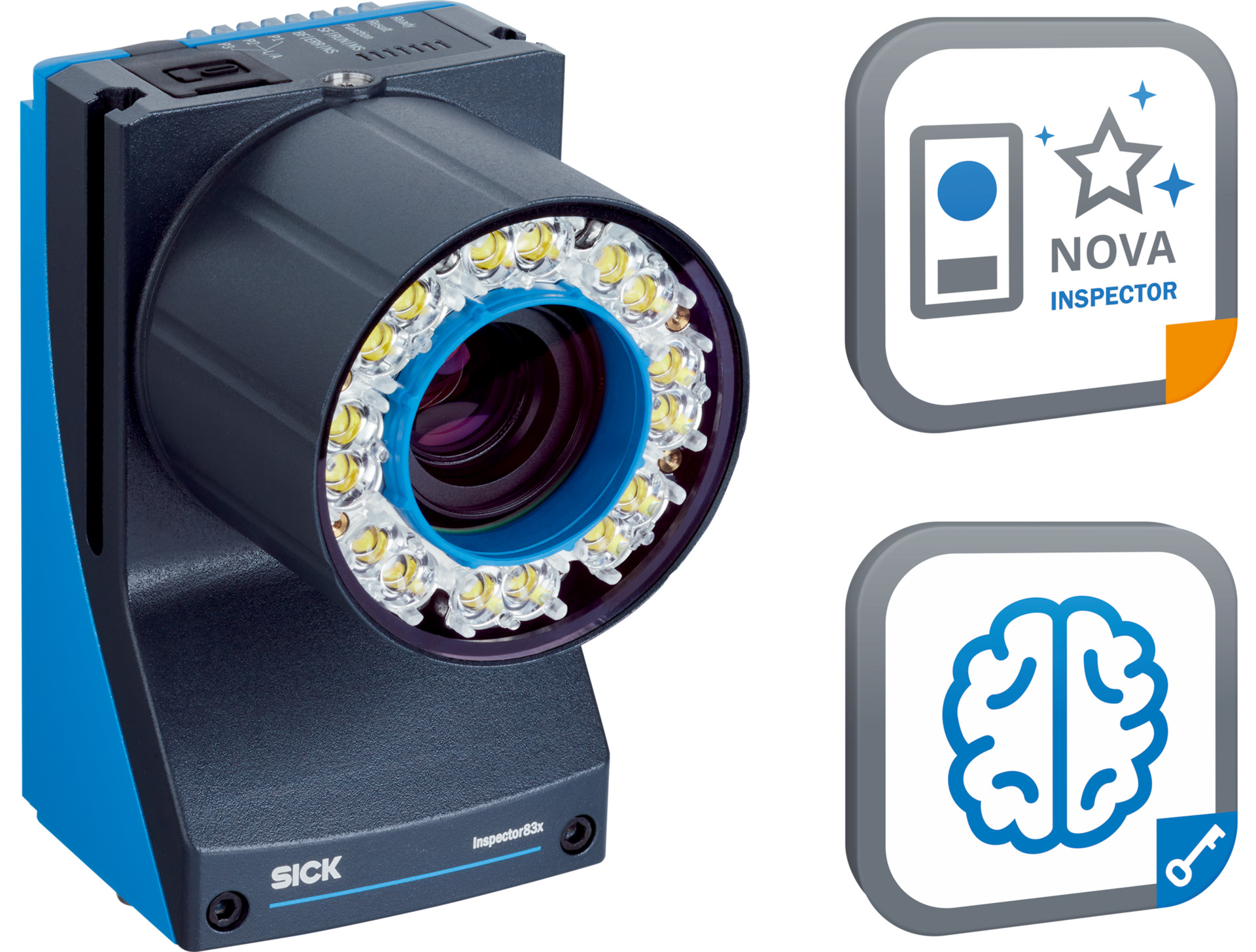

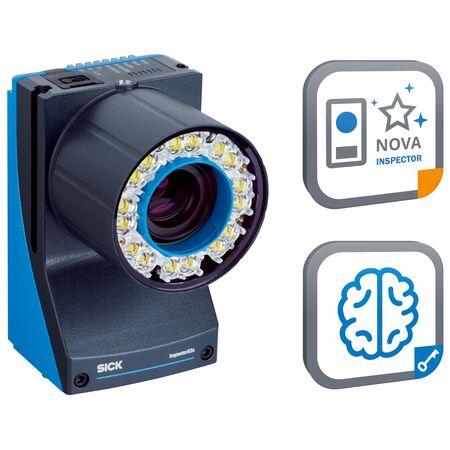

2D Snapshot Sensor | 5.1 Megapixels | Global-Shutter Technology | Adjustable Focus | by SICK
The 2D Snapshot Sensor with 5.1 Megapixels and global-shutter technology is perfect for industrial automation and quality control applications. With adjustable optical focus and integrated white LED illumination, it excels in detecting objects, measuring dimensions, and identifying 2D codes. Built for durability with an IP65 rating, this sensor is designed for reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Technology: 2D snapshot
- Sensor: CMOS Color, 5.1 Megapixels (2464 x 2048 px), pixel size 2.74 µm
- Shutter: Global-Shutter
- Optical focus: Adjustable manually
- Working range: 200 mm to 2,500 mm depending on lens
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- LED class: Risk group 1 (IEC 62471 / EN 62471)
- Lens: C-mount, 1/1.8" optical format, 25 mm focal length
- Connection types: M12 17-pin male, M8 4-pin female, M12 8-pin female, M12 4-pin female connectors
- Supply voltage: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Housing material: Aluminum die cast
- MTBF: 100,000 hours
- Scan/frame rate: 30 Hz
- Interfaces: Ethernet TCP/IP, PROFINET Dual Port, EtherNet/IP Dual Port
- Inputs/outputs: 2 opto-decoupled inputs, 6 configurable I/O
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5,000 m
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K ± 1,000 K)
- Adjustable manual optical focus
- Global-Shutter shutter technology
- High sensor resolution of 5.1 Megapixels (2464 x 2048 px)
- Multiple interface options including Ethernet, PROFINET, and EtherNet/IP
- Robust aluminum die-cast housing with IP65 rating
- Supports SICK Nova Tool plug-in for custom tool development
- License included with no time limit, bound to hardware ID
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns, classification, and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated LED illumination reduces external lighting needs, lowering energy consumption
- Durable IP65 housing extends product life and reduces waste
- Programmable and configurable software reduces need for hardware replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8305P-1CCKEXAF1SXXXX 2D snapshot sensor is available for immediate purchase, ideal for industrial automation, quality control, and inspection applications.
