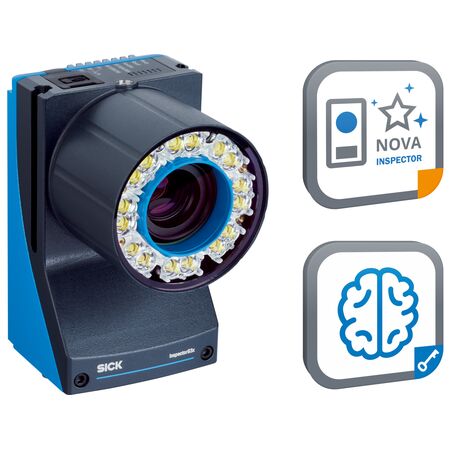

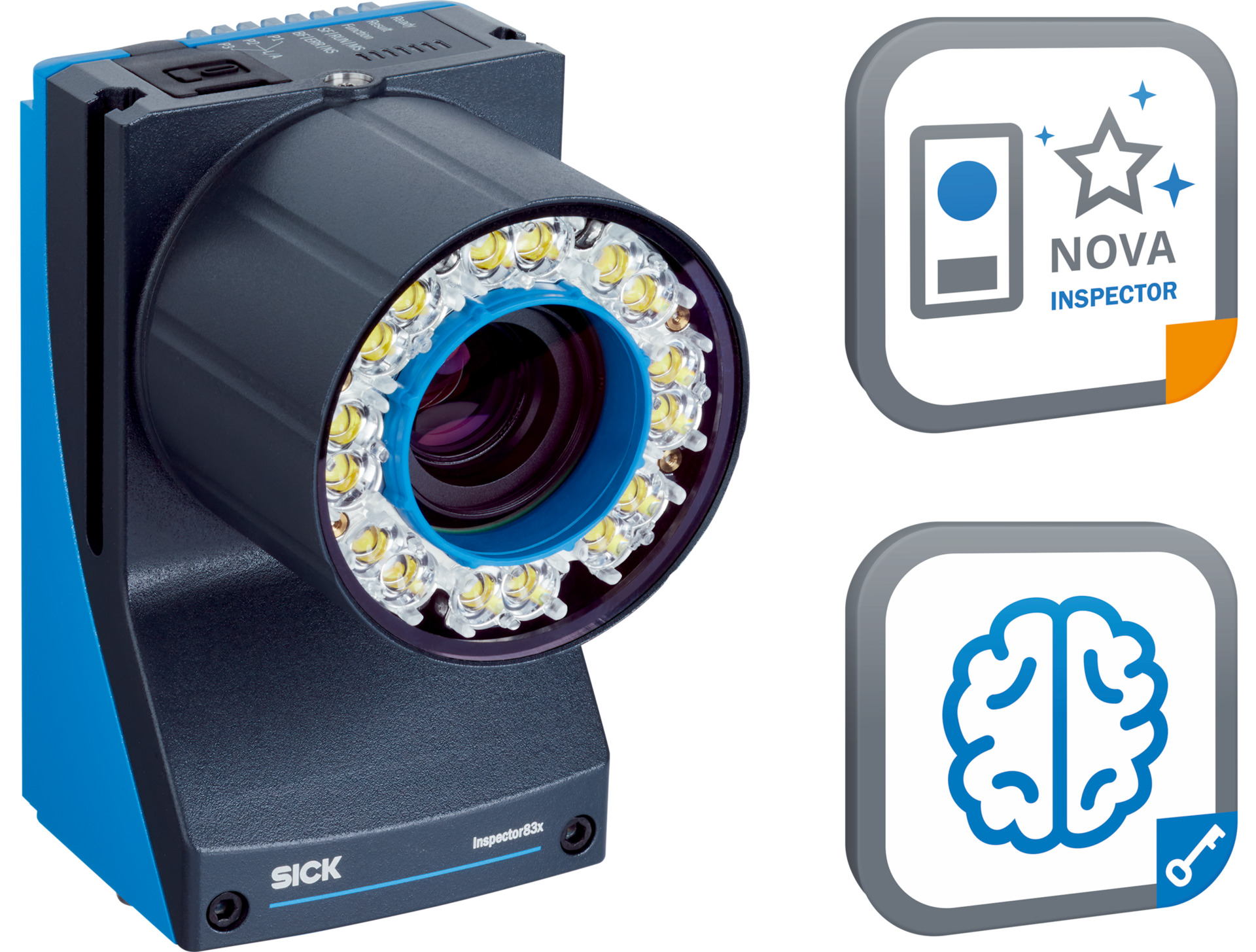

2D Snapshot Sensor | 5.1 Megapixels | Global-Shutter Technology | IP65 Rated | by SICK
The 2D Snapshot Sensor offers high-resolution imaging with 5.1 megapixels and global-shutter technology, making it ideal for industrial automation and quality control applications. With integrated white LED illumination and robust IP65-rated housing, this sensor is perfect for detecting objects, measuring dimensions, and identifying 2D codes in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 2464 px x 2048 px (5.1 Megapixels)
- Pixel size: 2.74 µm x 2.74 µm
- Sensor size: 6.75 mm x 5.61 mm
- Working range: 200 mm to 2500 mm depending on lens
- Illumination: Integrated white LED, 6,500 K ± 1,000 K
- Shutter technology: Global-Shutter
- Lens: C-mount, 12 mm focal length, optical format 1/1.8"
- Power supply: 24 V DC ± 20%
- Power consumption: 21 W
- Enclosure rating: IP65
- Connection types: M12 and M8 connectors for power, I/O, Ethernet, and external illumination
- Data transmission rates: 10/100/1000 Mbit/s Ethernet
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Vibration and shock resistance compliant with EN 60068 standards
- MTBF: 100,000 hours
- Dimensions (H x L x W): 85mm x 108mm x 63mm
- Weight: 0.55 kg
Key Features
- 2D snapshot technology with CMOS color sensor
- Programmable and configurable via SensorApp Nova Inspector
- Integrated white LED illumination (6,500 K)
- Adjustable manual optical focus
- Global-Shutter shutter technology
- High sensor resolution of 5.1 Megapixels
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP
- Robust aluminum die cast housing with IP65 rating
- Supports SICK Nova Tool plug-in for custom tool development
- License included: Intelligent Inspection License with no time limit
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Detecting standard objects
- Measuring dimension, contour, and volume
- Counting objects
- Identifying 2D codes, OCR, patterns
- Classifying and sorting
- 2D position determination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports software updates and tool customization, minimizing hardware replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8305P-1CCICXAF1SXXXX 2D Snapshot Sensor is available for immediate purchase, ideal for industrial automation, quality control, and inspection applications.
